Dual-Layer Natural Gas Drying Oven for Decorative Panels | High-Efficiency & Cost-Effective Industrial Drying Solution
Product Details:
| Place of Origin: | China |
| Brand Name: | Osmanuv |
| Certification: | ISO90001 |
| Model Number: | OSM-LRHG-1320T |
| Document: | Natural Gas Drying Machine.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden box |
| Delivery Time: | 45 Days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Power Supply: | 380V/50Hz | Light: | Infrared IR Tube |
|---|---|---|---|
| Production Speed: | 0.3-2m/min | Coating Speed: | 10-30m/min |
| Frequency Brand: | Shilin Or Schneider | Coating Automation: | High Automation |
| Color: | Blue/green/white | Dry Method: | Natural Gas |
| Highlight: | dual-layer natural gas drying oven,industrial drying oven for decorative panels,high-efficiency UV coating machine |
||
Product Description
This dual-layer natural gas drying oven serves as a critical component in automated decorative panel production lines. It is strategically positioned between the coating/laminating station and the cooling & stacking section. A complete production line typically includes:
- Automatic Loader
- Coating Machine
- Natural Gas Drying Oven
- Cooling Section
- Automatic Unloader/Stacker

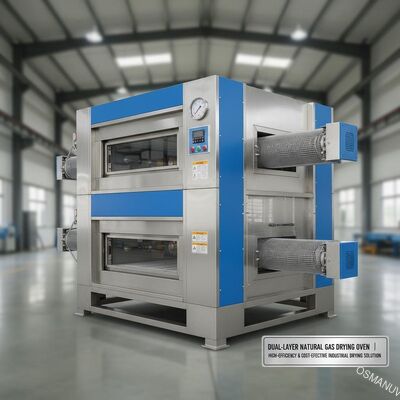

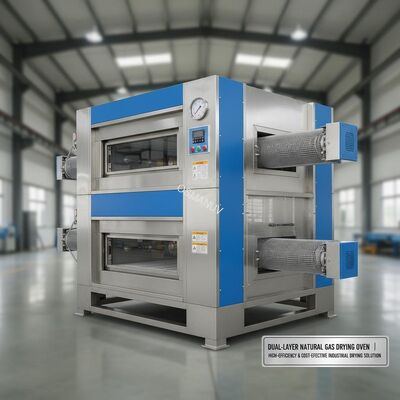

Our dual-layer natural gas drying oven is engineered for high-volume, continuous drying of coated or laminated decorative panels, including MDF, particle board, and PVC panels. Utilizing natural gas as a heat source provides significant operational cost savings compared to electric models. The dual-tier conveyor system maximizes floor space efficiency, effectively doubling production output without increasing the footprint.
| Parameter Category | Specification | Notes |
|---|---|---|
| Model | DNG-1224 | Customizable upon request |
| Heat Source | Natural Gas or LPG | Low operational cost |
| Burner Type | High-Efficiency Low-NOx Forced Draught Burner | Customizable brand and capacity |
| Max. Temperature | Up to 200°C (392°F) | |
| Temperature Control | ±2°C | PID with automatic feedback loop |
| Belt Width | 1300mm, 1500mm, 1800mm, 2200mm | Fully customizable to your panel size |
| Belt Speed | 0.5 - 8 m/min | Stepless variable speed control |
| Number of Tiers | 2 | Independent airflow control for each tier |
| Heat Exchanger | Stainless Steel | Corrosion resistant and durable |
| Control System | PLC + 10" Touch Screen HMI | Recipe memory and data logging |
This machine is specifically designed for the wood-based panel and furniture industry:
- Materials: MDF Boards, Particle Boards, Melamine Laminated Panels, PVC Foil Boards, Veneered Panels, Finished Doors
- Processes: Drying of UV coatings, paints, primers, adhesives used in lamination
We understand that production needs vary significantly. Our ovens are highly customizable to meet your specific requirements:
- Size: Belt width and length tailored to your product dimensions and desired output
- Heat Source: Configured for natural gas, LPG, or dual-fuel systems
- Zoning: Multiple independent temperature zones for complex processes
- Control Integration: PLC interface with existing factory management systems
- Low Operating Cost: Natural gas provides significant cost savings compared to electricity

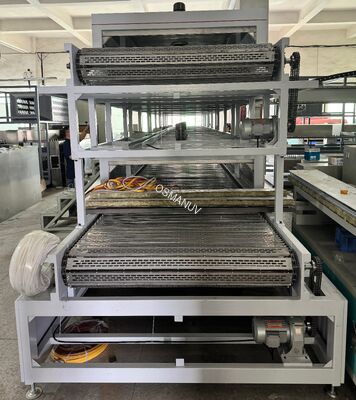

- Dual-Layer Design: Maximizes production capacity while minimizing floor space requirements
- Uniform Airflow: Engineered airflow system ensures consistent temperature distribution across the entire belt width
- Robust Construction: High-quality insulation and stainless steel heat exchangers for longevity
- Energy Efficient: Heat recovery systems pre-heat incoming air, reducing fuel consumption
- User-Friendly: Intuitive touch-screen interface for easy operation and recipe management
- Pre-sales Consultation: Process analysis and layout planning
- Professional Installation: On-site installation and commissioning by qualified engineers
- Operator Training: Comprehensive training on operation, safety, and maintenance
- After-sales Service: 24/7 remote technical support, spare parts availability, and preventive maintenance plans
All machine sections are disassembled for optimal shipping. Components are carefully packed in weather-proof, shock-absorbent materials using standard export wooden crates for all metal parts to ensure safe transit. We handle worldwide shipping and all necessary documentation.
