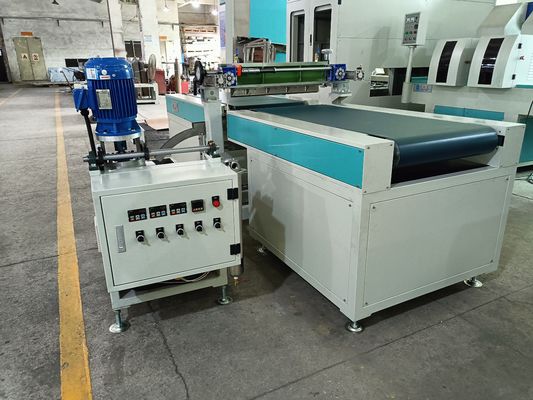

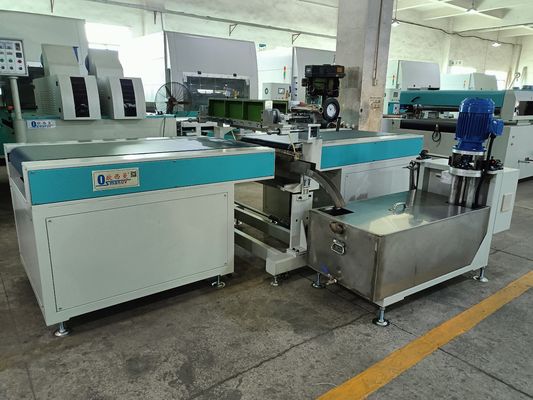

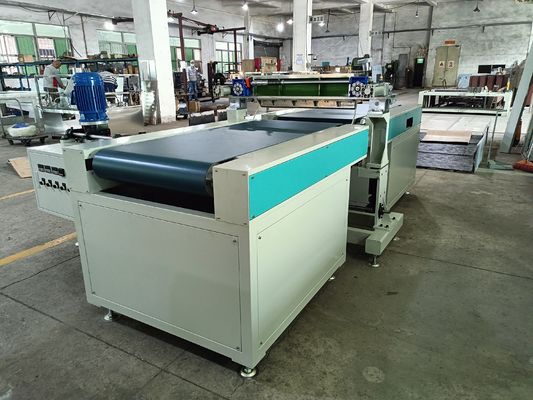

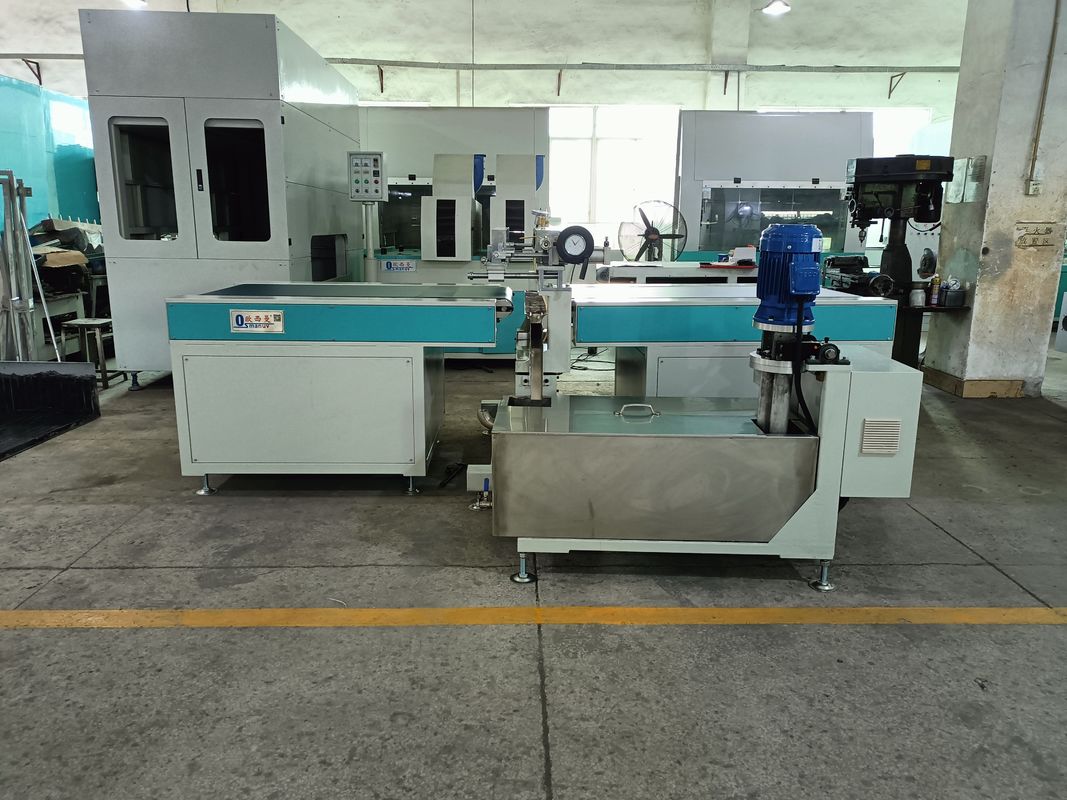

Furniture Board PVC Floor Coating Costistent Coating Performance Curtain Coating Machine

Furniture Board PVC Floor Coating Costistent Coating Performance Curtain Coating Machine
Furniture Board PVC Floor Coating Costistent Coating Performance Curtain Coating Machine
Furniture Board PVC Floor Coating Costistent Coating Performance Curtain Coating Machine Furniture Board PVC Floor Coating Costistent Coating Performance Curtain Coating Machine Furniture Board PVC Floor Coating Costistent Coating Performance Curtain Coating Machine Furniture Board PVC Floor Coating Costistent Coating Performance Curtain Coating Machine Furniture Board PVC Floor Coating Costistent Coating Performance Curtain Coating Machine Furniture Board PVC Floor Coating Costistent Coating Performance Curtain Coating Machine

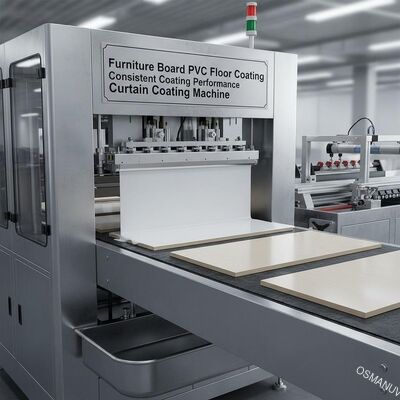

Large Image :  Furniture Board PVC Floor Coating Costistent Coating Performance Curtain Coating Machine

Product Details:
Place of Origin: CHINA
Brand Name: Osmanuv
Certification: ISO9001
Model Number: OSM-LT-620T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: 35-45 Working days
Payment Terms: T/T,Western Union
Supply Ability: According to customer's demand
Contact Now

Furniture Board PVC Floor Coating Costistent Coating Performance Curtain Coating Machine

Description
Conveying Power: 2.2Kw Coating Width: 620 Mm
Processing Thickness: 3-80mm Total Weight Of The Machine: 1000 Kg
Minimum Processing Length: 300mm Application: Construction And Decoration Industry, Can Be Used For Coating Building Materials, Such As Paint, Waterproof Coating, Etc.
Overall Dimensions: 3000mm Long × 1500mm Wide × 1400 Mm High Warranty: One Year
Highlight:

PVC floor Coating Curtain Coating Machine

,

Furniture Board Curtain Coating Machine

,

Costistent Coating Performance Curtain Coating Machine

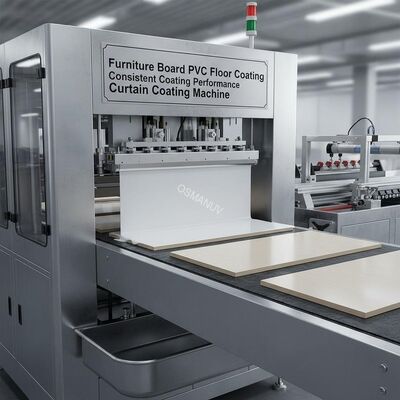

Furniture Board PVC Floor Coating Costistent Coating Performance Curtain Coating Machine
Product Description

Professional curtain coating machine designed for furniture board and PVC floor coating applications, ensuring consistent coating performance and high-quality finish.

Technical Specifications
  • Product Name: Curtain Coating Machine
  • Model: OSM-LT-620T
  • Specifications: 3000mm long × 1500mm wide × 1400mm high, belt height from the ground: 850-900mm adjustable
  • Total Weight: 1000 kg
  • Coating Width: 620 mm
  • Processing Thickness: 3-80mm
  • Minimum Processing Length: 300mm
  • Conveying Power: 2.2 kw
  • Oil Pump Power: 2.2 kw
  • Paint Consumption: 60-200 g/㎡
  • Oil Drum Capacity: 60kg
  • Power Supply: 380V/50HZ three-phase five-wire system
  • Furnace Shell: 2.0 cold-rolled plate bending and welding, surface powder-coated and painted
  • Conveyor Mesh Belt: Dutch PVC belt, corrosion-resistant, oil-resistant and easy to clean
  • Belt Conveying Speed: 2-60 m/min, stepless speed regulation
  • Conveying System: Taiwan Fengbo gear reduction motor as conveying power
  • Curtain Blade: Unique scallop-type diagonal support structure, simple and convenient to adjust, disassemble and clean
  • Transmission Bearing: Imported bearings from Japan NSK, good sealing and prevents paint soaking
  • Oil Storage Tank: Welded with 2.0t 304# stainless steel plate, 5 layers of high-efficiency filter net, constant temperature heating system (typically set to 60℃), reflux buffer system to eliminate bubbles
  • Electrical Components: Delta inverter, CHNT contactor, Japanese Izumi switch and other international standard brand electrical appliances
  • Control Panel: Power indicator light, start switch, stop switch, oil pump switch, electric heating switch, emergency switch
  • Safety Devices: Leakage circuit breaker, motor overload protection, emergency switch, control line fuse, compliant with international safety standards
  • Conveying Direction: From left to right (facing the operating surface, feeding direction from left to right)
Frequently Asked Questions
Q1: Are you a manufacturer or a trading company?
We're a manufacturer with our own factory in Dongguan, Guangdong Province. We welcome customers to make appointments to visit our factory.
Q2: What is the machine warranty?
One year warranty. After the warranty period, we continue to provide technical support at low cost.
Q3: Can your company handle shipping for customers?
Yes, we work with freight forwarders to handle transportation. We accept FOB, CIF, DDP and other trade terms.
Q4: How about the machine installation and training?
  • We provide free training in our factory
  • We offer free online training and can send technicians to your factory for installation and training (installation fees negotiated based on actual requirements)
Q5: Do you inspect machines or test running before packing?
Yes, our QC department thoroughly tests and debugs every machine before packing. For specific material requirements or custom needs, please contact us directly.
