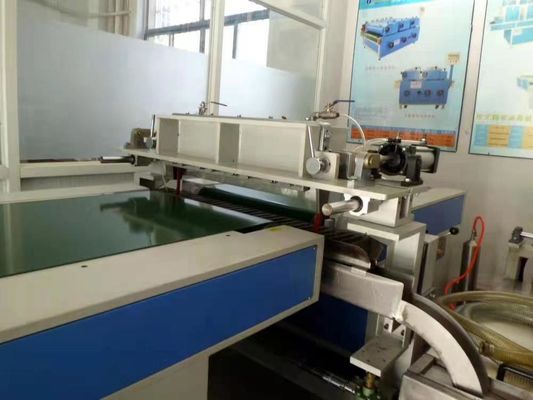

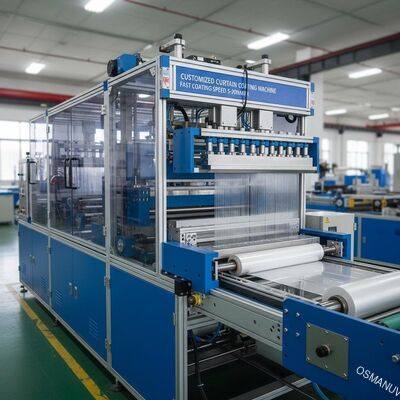

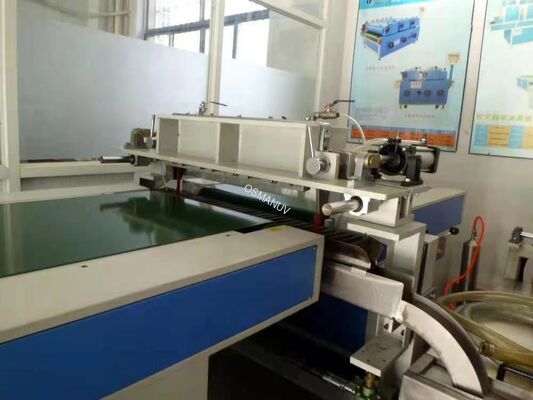

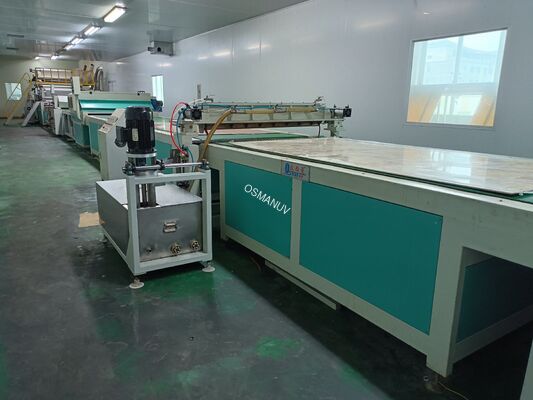

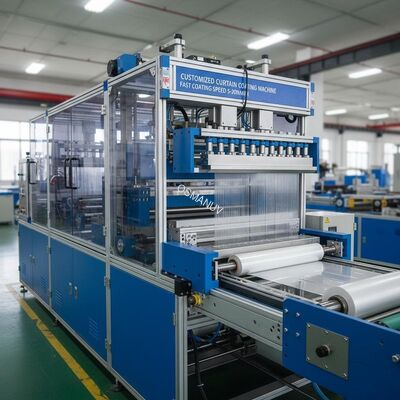

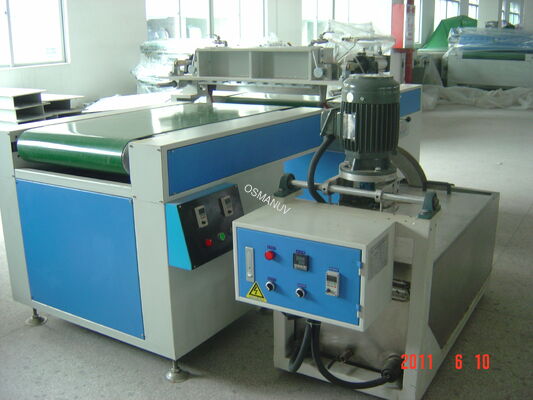

Customized Curtain Coating Machine For Fast Coating Speed 5-20m/min
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 And CE |
| Model Number: | OSM-GT-1320 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 35-45 Working days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | According to customer's demand |
|
Detail Information |
|||
| Control System: | Automatic Control | Machine Size: | 6000mm×2200mm×1400 Mm |
|---|---|---|---|
| Paint Dosage: | 60～200 G/㎡ | Total Machine Weight: | 2000kg |
| Coating Method: | Curtain Coating | Coating Width: | 1320mm |
| Coating Speed: | 5-20m/min | Coating Thickness: | 3-80mm |
| Highlight: | 20m/min Curtain Coating Machine,Fast Coating Speed Curtain Coating Machine,Customized Curtain Coating Machine |
||
Product Description
Customized Curtain Coating Machine For Fast Coating Speed 5-20m/min
Product Description
The Curtain Coating Machine delivers high precision coating accuracy with a tolerance of ±0.02mm, ensuring even and consistent application across substrates. This precision is essential for demanding applications such as electronic components and printed materials.
Powered by a 380V/50HZ supply suitable for industrial environments, the machine employs curtain coating technology that pours a continuous liquid stream onto substrates. This method offers superior precision, consistent thickness, and excellent process control for materials including paper, plastic, metal, and glass.
An automatic control system enables efficient operation, allowing operators to set coating thickness and speed while maintaining consistency throughout the process. Easy parameter adjustments make it simple to achieve desired coating results.
Key Features
- Product Name: Curtain Coating Machine
- Power: 380V/50HZ
- Coating Surface Treatment: Curtain
- Coating Speed: 5-20m/min
- Coating Width: 1320mm
- Paint Dosage: 60～200 G/㎡
Technical Parameters
| Coating Width | 1320mm |
| Paint Dosage | 60～200 G/㎡ |
| Coating Speed | 5-20m/min |
| Coating Thickness | 3-80mm |
| Total Machine Weight | 2000kg |
| Machine Size | 6000mm×2200mm×1400mm |
| Coating Accuracy | ±0.02mm |
| Coating Method | Curtain Coating |
| Control System | Automatic Control |
| Coating Surface Treatment | Curtain |
Applications
The OSM-GT-1320 Curtain Coating Machine is ideal for coating paper, plastic films, non-woven fabrics, metal foils, and other materials requiring high-quality surface finishes. The curtain coating method ensures even application, making it suitable for heat-sensitive materials operating at low temperatures.
With a coating speed of 5-20m/min, this machine supports large-scale production in packaging, printing, electronics, and automotive industries. Applications include release films, adhesive tapes, protective films, and more, with customization available to meet specific customer requirements.
Customization & Specifications
OSMANUV OSM-GT-1320 Curtain Coater Machine - Made in China, ISO9001 certified
Minimum Order Quantity: 1 set | Price: Negotiable
Packaging: Wooden box | Delivery Time: 45 work days
Payment Terms: T/T and Western Union
Supply Ability: According to customer demand
Minimum Order Quantity: 1 set | Price: Negotiable
Packaging: Wooden box | Delivery Time: 45 work days
Payment Terms: T/T and Western Union
Supply Ability: According to customer demand
Support and Services
Comprehensive technical support includes installation, maintenance, repair, and staff training services. Our experienced technicians provide consultation to optimize production processes and improve efficiency. Remote assistance and on-site support are available to ensure minimal downtime throughout the machine's lifetime.
Packing and Shipping
Packaging: Sturdy cardboard box with bubble wrap protection, including all necessary components and instructions. Boxes are clearly labeled with product information and handling instructions.
Shipping: Via trusted courier services with calculated shipping costs based on destination and weight. Tracking numbers provided with estimated delivery times communicated at purchase.
Frequently Asked Questions
Q1: What is the brand name of the curtain coating machine?
A1: OSMANUV
Q2: What is the model number of the curtain coating machine?
A2: OSM-GT-1320
Q3: Where is the curtain coating machine manufactured?
A3: China
Q4: Does the curtain coating machine come with any certifications?
A4: Yes, ISO9001 certification
Q5: What is the minimum order quantity for the curtain coating machine?
A5: 1 set
Q6: Is the price of the curtain coating machine negotiable?
A6: Yes
Q7: What is the packaging method of the curtain coating machine?
A7: Wooden box
Q8: What is the delivery time for the curtain coating machine?
A8: 45 work days
Q9: What are the payment terms for the curtain coating machine?
A9: T/T and Western Union
Q10: What is the supply ability of the curtain coating machine?
A10: According to customer's demand
