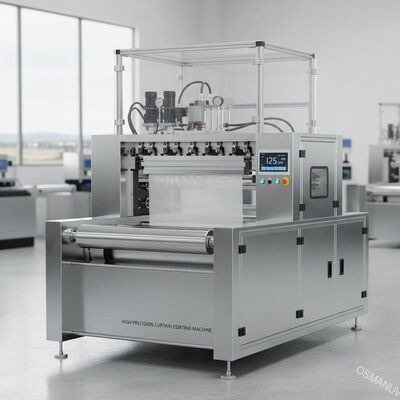

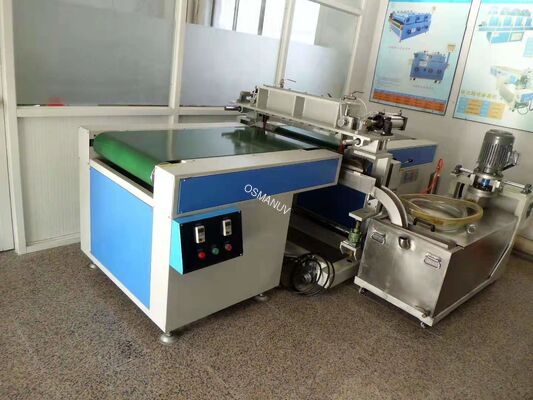

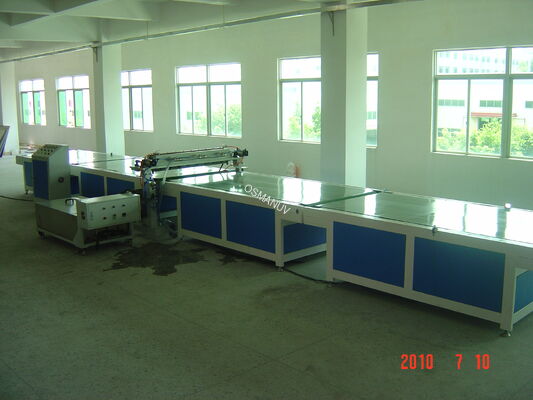

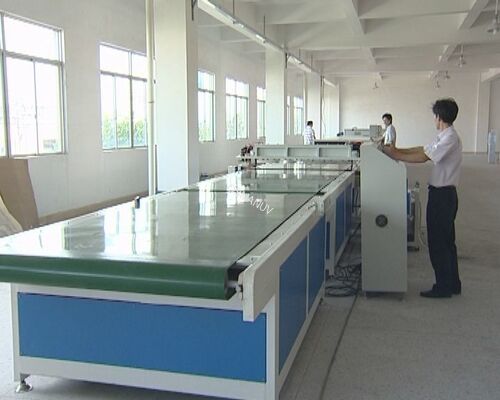

High Precision Curtain Coating Machine With Paint Dosage 60～200 G/m2
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 And CE |
| Model Number: | OSM-GR-1320 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 35-45 Working days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | According to customer's demand |
|
Detail Information |
|||
| Total Machine Weight: | 2000kg | Coating Speed: | 5-20m/min |
|---|---|---|---|
| Coating Accuracy: | ±0.02mm | Coating Method: | Curtain Coating |
| Control System: | Automatic Control | Coating Thickness: | 3-80mm |
| Machine Size: | 6000mm×2200mm×1400 Mm | Coating Surface Treatment: | Curtain |
| Highlight: | High Precision Curtain Coating Machine,200G/m2 Curtain Coating Machine |
||
Product Description
The Curtain Coating Device operates at speeds of 5-20m/min, ensuring optimal production line efficiency. With a coating width of 1320mm and precision accuracy of ±0.02mm, this machine delivers exceptional coating quality for large-scale production requirements.
Featuring an advanced automatic control system, this machine allows for precise adjustment of coating parameters including speed, width, and accuracy. The system ensures consistent, repeatable coating processes while minimizing errors and defects.
The unique curtain coating surface treatment guarantees even material distribution and consistent coating across entire surfaces, reducing waste while improving efficiency and final product quality.
- Product Name: Curtain Coating Machine
- Coating Thickness: 3-80mm
- Control System: Automatic Control
- Total Machine Weight: 2000kg
- Coating Surface Treatment: Curtain
- Power: 380V/50HZ
| Parameter | Specification |
|---|---|
| Total Machine Weight | 2000kg |
| Coating Thickness | 3-80mm |
| Coating Method | Curtain Coating |
| Coating Width | 1320mm |
| Paint Dosage | 60～200 G/㎡ |
| Coating Surface Treatment | Curtain |
| Control System | Automatic Control |
| Machine Size | 6000mm×2200mm×1400mm |
| Coating Accuracy | ±0.02mm |
| Power | 380V/50HZ |
This versatile coating machine is designed for processing various materials including paper, film, and fabric, making it ideal for printing, packaging, furniture, automotive, and construction industries. The adjustable coating thickness (3-80mm) and speed range (5-20m/min) accommodate diverse production requirements.
We offer comprehensive customization services to tailor the machine to your specific production requirements. Our expert team ensures optimal performance for your unique applications.
Our technical support team provides comprehensive assistance with installation, operation, and maintenance. We offer training services, preventative maintenance programs, equipment upgrades, and repair services to ensure long-term optimal performance.
