Quality Mesh Belt UV Food Irradiation Machine 2KW For Package Board Carton factory
<
Quality Mesh Belt UV Food Irradiation Machine 2KW For Package Board Carton factory
Quality Mesh Belt UV Food Irradiation Machine 2KW For Package Board Carton factory
Quality Mesh Belt UV Food Irradiation Machine 2KW For Package Board Carton factory
Quality Mesh Belt UV Food Irradiation Machine 2KW For Package Board Carton factory
Quality Mesh Belt UV Food Irradiation Machine 2KW For Package Board Carton factory
>

Mesh Belt UV Food Irradiation Machine 2KW For Package Board Carton

Mesh Belt UV Food Irradiation Machine 2KW For Package Board Carton
Mesh Belt UV Food Irradiation Machine 2KW For Package Board Carton This UV sterilization machine effectively eliminates microorganisms on products, packaging containers, packaging materials, and packaging components, reducing contamination to acceptable levels. Equipment Specifications Specification ...
Place of Origin:China
Brand Name:Osmanuv
Certification:ISO9001
Model Number:OSM-UVC30-300AL
Minimum Order Quantity:1 set
Price:Negotiable
Product Custom Attributes
Highlight

Mesh Belt UV Food Irradiation Machine

,

UV Food Irradiation Machine 2KW

,

Light wave irradiation sterilizer

Product Name:
Light Wave Irradiation Sterilizer
Speed:
1-10m / Min
Power:
2KW
Color:
Computer White / Green / Silver
Specification:
3000mm*700mm*1350m
Weight:
280KG
Feature:
Energy
Product Description
Mesh Belt UV Food Irradiation Machine 2KW For Package Board Carton
This UV sterilization machine effectively eliminates microorganisms on products, packaging containers, packaging materials, and packaging components, reducing contamination to acceptable levels.
Equipment Specifications
Specification Details
Equipment Model OSM-UVC30-300AL
Equipment Dimensions 3000mm (length) × 550mm (width) × 1380mm (height)
UV Sterilization Area 5000mm
Inlet and Outlet 500mm infeed; 500mm infeed; 180mm in and out
Conveyor Type Mesh belt
Conveyor Width 300mm
Speed 1-10m/min, stepless speed regulation
Material SUS 304 stainless steel construction
UV Germicidal Lamps 30W tubes (30 tubes total) - 15 top lamps (downward irradiation), 15 bottom lamps (upward irradiation)
Exhaust Power 5 sets of 38W 220V
Conveying Motor 120W 220V
Conveying Direction Left to right
Conveyor Belt Height 780 ± 50mm from ground
Safety Devices Earth leakage circuit breakers, control line fuses - compliant with international safety standards
Product Images

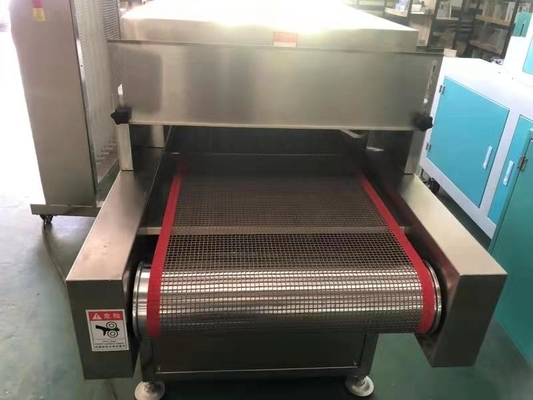

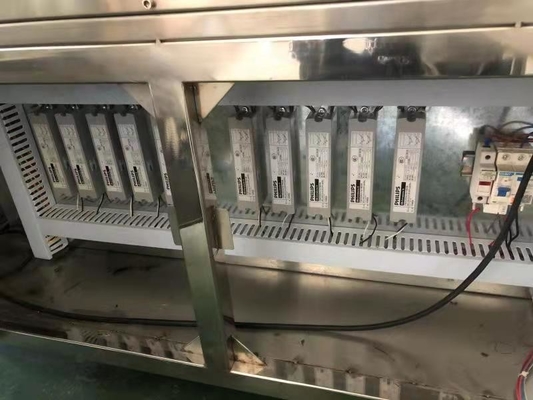

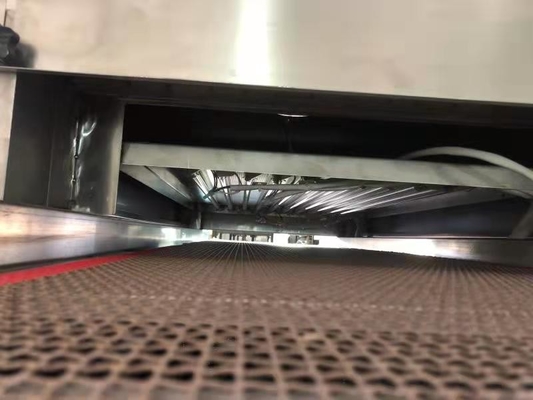

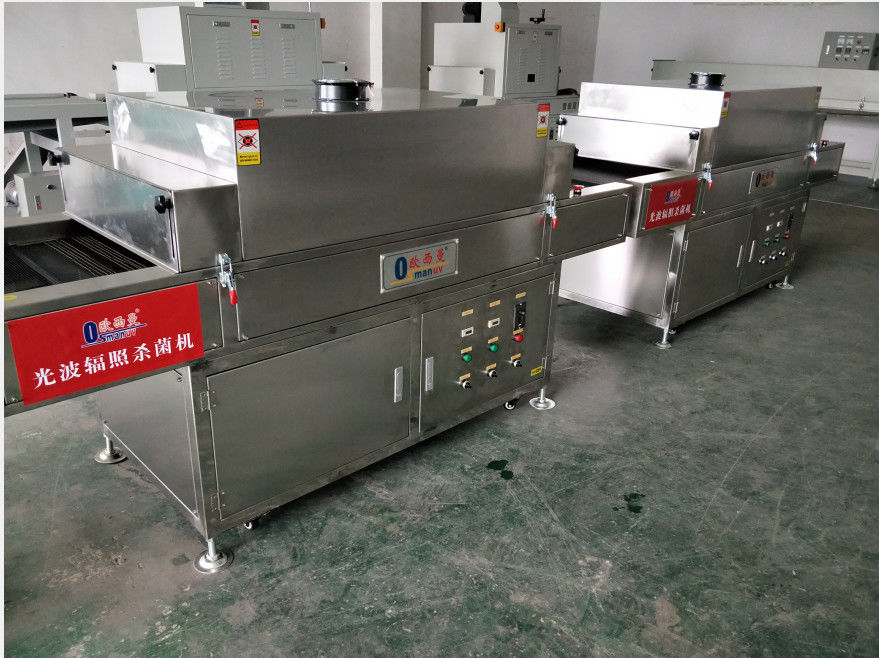

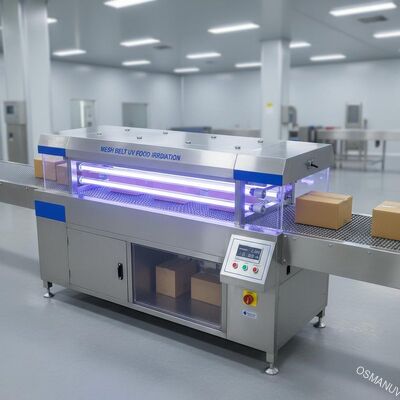

Mesh Belt UV Food Irradiation Machine front view Mesh Belt UV Food Irradiation Machine side view Mesh Belt UV Food Irradiation Machine operational view
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
How can I verify your machine quality?
We can test your samples on our machines and provide video documentation. Factory visits are also welcome. Our products are widely used in China, Southeast Asia, South America, and Europe.
What certifications do you have?
Our production follows GMP & ISO standards, and our products have passed CE certification for export.
What is your Quality Warranty?
One-year warranty with lifelong maintenance and technical support.
About Our Company

Dongguan Osmanuv Mechanical Equipment Co., Ltd. is a professional manufacturer specializing in UV equipment, coating systems, infrared IR equipment, automation equipment, and environmental equipment for global export.

Our comprehensive product range serves multiple industrial sectors including:

  • External wall insulation integration
  • Inner wall decorative plate plastic spraying
  • Bamboo and wood coating
  • Screen printing, PCB, LCD, LED manufacturing
  • Electronic components processing
  • Shoe materials, glass products, adhesive applications
  • Fiber, vacuum plating UV, and water transfer printing

We operate with a modern strategy focused on high technology, substantial investment, superior quality, and advanced management to provide optimal solutions and service excellence.

Quality Certification: ISO9001:2015 Quality Management System Certified
