Reciprocating Electrostatic Spraying Spot Uv Coating Machine
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 And CE |
| Model Number: | OSM-ZDPT-1320T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 35-45 Working days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | According to customer's demand |
|
Detail Information |
|||
| Calcium Silicate Board, Cement Fiber Board, Steel Plate And New Building Materials: | Reciprocating Spraying Machine | Size: | 3900mm Long × 4600mm Deep × 2480mm High (according To The Actual Size) |
|---|---|---|---|
| Power Supply: | 380VAC/50HZ | Total Power: | 22KW |
| Maximum Effective Processing Width: | 1320Mmm | Processing Thickness: | 3-80mm |
| Spray Gun: | Adopt American GRACO Automatic Spray Gun | Electric Box: | Independent Electric Box |
| Highlight: | Spot Uv Coating Machine,Reciprocating Spraying Spot Uv Coating Machine,Electrostatic Spraying Spot UV Coater |
||
Product Description

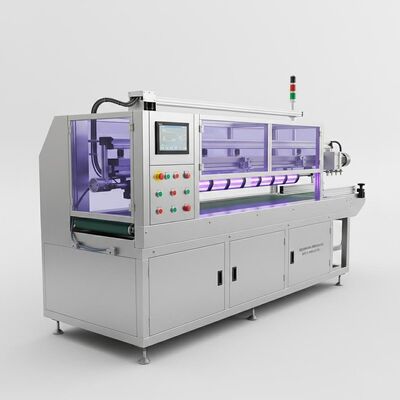

Reciprocating Electrostatic Spraying Spot UV Coating Machine
UV Coating Machine Electrostatic Spraying Machine Spot UV Coater For Digital Print Thick Digital
Product Overview
The coating process typically involves: pretreatment, polishing → coating → leveling → drying or curing → three wastes treatment. This coating equipment is designed to complete these coating processes efficiently.
UV coatings are recommended for frequently handled prints such as presentation folders, paperback book covers, and business cards. Also ideal for promotional items designed to grab attention, including flagship brochures and direct mail postcards.
- Suitable for coatings on calcium silicate board, cement fiber board, steel plate, and new building materials surface spraying real stone paint, water-in-water nano-color glaze, etc.
- Features Japanese Mitsubishi PLC man-machine interface, Mitsubishi servo motor, inverter, and other imported electrical components for mechanical stability
- Spray system utilizes American Graco pumps and Graco large-caliber spray guns for precise spray metering control
- Slider module system employs Taiwan's high-speed module system for stable performance and durability
- Electrical components include imported appliances (Schneider contactor, Mitsubishi servo, Japan Hequan switch, etc.) ensuring stable mechanical performance
- Effective spraying width: 1300mm
Conveyor System
| Acid and alkali resistant PU belt for product transportation with bottom paint recovery and cleaning devices | Ensures no residual paint on conveyor belt and prevents paint sticking to plate back, effectively reducing paint waste |
| Conveying speed | 1-5 m/min |
Painting System
| Spray guns | 4 American GRACO automatic spray guns (spray gun caliber: 1.1mm) |
| Oil supply system | Taiwan Polaroid pressure regulating and oil supply system for perfect spraying quality |
| Spray gun layout and driving mode | Two groups of spraying tracks, each with 2 American GRACO automatic spray guns spraying at different angles; controlled by OMRON infrared photoelectric induction |
| Maximum stroke of spray gun | 3400mm reciprocating |
Distance between spray gun and product adjusts according to product width, controlled by OMRON electric eye, allowing spray gun to move in any path within maximum stroke range with gun opening/stopping capability for uniform paint application and significant paint savings.
Spray Booth Air Filtration System
| Air filtration | High-efficiency air filter above automatic spraying machine effectively filters airborne dust and maintains spray room cleanliness |
| Exhaust gas emission | Paper paint filter system |
Mechanical Configuration
| Observation | Front glass window for easy observation of sprayer working condition |
| Exhaust and supplementary air | Two high-efficiency fans exhaust excess waste gas during spraying (excluding air ducts and ventilation facilities); intake fan brings fresh air through filter system to spray booth |
| Housing material | 1.5 cold-rolled plates bent and welded, computer color painted housing; inner wall made of 304# stainless steel mirror panel |
| Electrical part | Japan OMRON relay, CKC delay, Schneider contactor, Taiwan motor Chint leakage circuit breaker and other international safety standard compliant electrical appliances |
| Safety devices | Leakage circuit breakers, control circuit fuses, abnormal emergency switches complying with international safety standards |
Machine Control Method
| Man-machine interface | Weilun |
| Control part | Delta PLC control |
| Sliding rail drive part | Mitsubishi servo motor |
Warranty
| Machine warranty | Whole machine guaranteed for one year; electrical part guaranteed for half a year |
| Air filter | Not covered by warranty. Can be blown, wiped, or cleaned directly after contamination, or replaced with new product |
