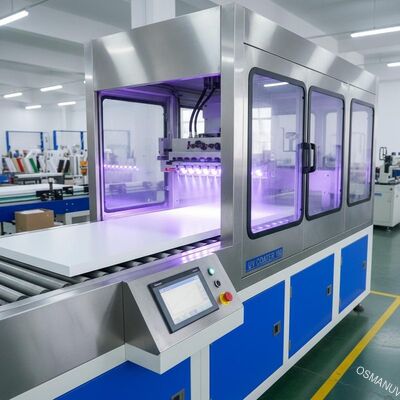

Spray Paint Uv Coater For Digital Printing Thickness 150mm Board

Spray Paint Uv Coater For Digital Printing Thickness 150mm Board
Spray Paint Uv Coater For Digital Printing Thickness 150mm Board
Spray Paint Uv Coater For Digital Printing Thickness 150mm Board Spray Paint Uv Coater For Digital Printing Thickness 150mm Board Spray Paint Uv Coater For Digital Printing Thickness 150mm Board

Large Image :  Spray Paint Uv Coater For Digital Printing Thickness 150mm Board

Product Details:
Place of Origin: CHINA
Brand Name: Osmanuv
Certification: ISO9001 And CE
Model Number: OSM-FC-1320#
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: 35-45 Working days
Payment Terms: T/T,Western Union
Supply Ability: According to customer's demand
Contact Now

Spray Paint Uv Coater For Digital Printing Thickness 150mm Board

Description
Voltage: 380V Color: Grass Green + Computer White
Power: 4.2kw Warranty: One Year
Weight: 1350kg Dimension(l*w*h): 2200mm Long × 2050mm Wide × 1300mm High.
Feature: Efficient
Highlight:

Uv Coater For Digital Printing

,

150mm Uv Coater For Digital Printing

,

Digital Spot Uv Coating Machine

Spray Paint UV Coater For Digital Printing Thickness 150mm Board
Spray Paint Production Line UV Coating Machine Thickness 150mm For Board, Wall Panel Factory
UV Coating Machine Description
Dust Removal Machine
1 Product name: Dust removal machine
2 Model: OSM-FC-1320 type
3 Features: It can effectively and automatically remove the dust left by the plate due to sanding, which greatly improves the coating quality of the product
4 Mechanical dimensions: 2200mm long × 2050mm wide × 1300mm high (According to the actual size)
5 Effective working size: a, effective width: 1320mm; b, thickness: 3-80mm; c, length (shortest): 300mm
6 Pressure roller: Diameter: ￠60mm, length 1350mm
7 Medium pressure fan power: 0.55kw×2 units
8 Material: The shell is made of cold-rolled steel plate, the thickness is 1.5mm, and the surface is treated with electrostatic powder paint
9 Dust removal device: The brush roller is made of high-quality sisal fiber, diameter: ￠150mm, length: 1350mm. It is also equipped with a powerful blower, which has a good dust removal effect. The thickness and length of sisal can be customized according to customer requirements. The transmission adopts V-belt transmission, which effectively reduces the vibration during its operation and makes the machine run more smoothly. The bearing adopts KHV bearing, Taiwan Delta frequency converter controls the speed of the glue roller, and the pressure roller adopts 45# seamless steel pipe after CO² welding, the surface is coated with glue, and the jitter is less than 0.005mm. The lifting seat adopts cast iron dovetail groove type, so that the rigidity and precision between the coating head and the frame are guaranteed, and there is no deformation
10 Conveyor belt: The Dutch green PVC flat belt is adopted, which has stable conveying and long service life
11 Working height: 0-80mm (adjustable according to product height)
12 Transmission system: Driven by 1.5KW Wanxin reducer
13 Transmission and control speed: The speed is adjustable 5-20m/min, and the panel control is equipped with an LED speed display
14 Exhaust system: forced air cooling, good heat dissipation effect
15 Electrical part: use CHNT contactor, Wanxin reducer, Delta frequency converter, switch is produced by Japan Izumi company, all comply with CE standards
16 Safety devices: leakage circuit breakers, over-temperature prevention, transformer motor overload protection, control circuit fuses... all comply with international safety standards
17 Conveying direction: from left to right
18 Working height: 850-900mm adjustable (the height of the ground from the conveyor belt)
Why is it called UV Coating?
UV coatings are applied in liquid form, then exposed to UV light, bond and dry immediately - hence the name 'UV coating'. It can be applied to the entire print (called floodlight) or used as a spot coat to highlight specific areas. In addition, UV coatings are available in a variety of gloss levels, with high gloss being the most popular.

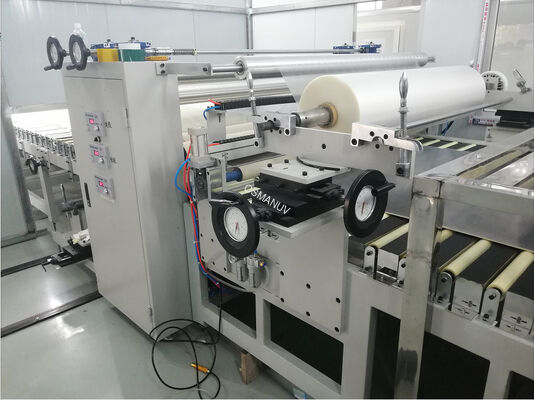

UV Coating Machine Details
UV Coating Machine Overview UV Coating Machine Side View UV Coating Machine Operation
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
About Us
Dongguan Osmanuv Mechanical Equipment Co., Ltd. is a design, research, development, manufacturing as one of the UV equipment, UV equipment and coating, infrared IR equipment, professional production enterprises, automation equipment, environmental equipment, the implementation of the whole plant export.
At present, the company produces the product variety is complete, has been widely used in external wall insulation integration, inner wall decorative plate plastic spraying, bamboo and wood coating, screen printing, PCB, LCD, LED, electronic components, shoe materials, glass products, adhesive, fiber, vacuum plating UV, water transfer printing and many other fields of industry, and has been praised by customers.
Since its start has been the spirit of "high-tech, high investment, high-quality, high-management" of the modern strategy for your business to provide the best, the best service is our aim and the supreme glory, let us cooperate to carry to create more high-quality products, which all sectors of society to create a better future!
