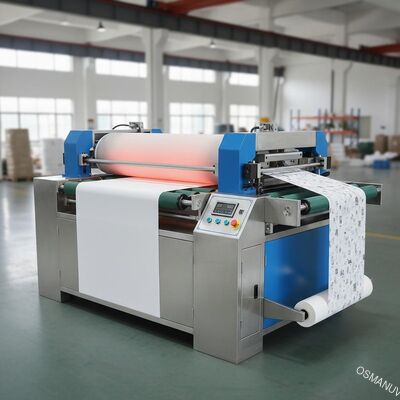

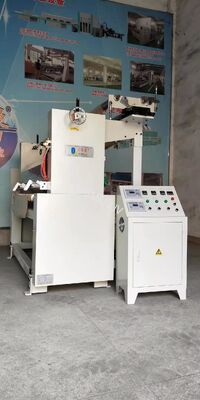

Roll To Roll Rotary Heat Press Machine Fully Automatic 50HZ 3m/Min
Product Details:
Place of Origin: | China |
Brand Name: | Osmanuv |
Certification: | ISO9001 |
Model Number: | OSM-FM-1320 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Packaging Details: | Wooden box |
Delivery Time: | 30 - 40 WORK DAYS |
Payment Terms: | T/T, Western Union |
Detail Information |
|||
Product Name: | UV Five Lamps Transfer Equipment | Color: | White And Blue Or Green |
---|---|---|---|
Voltage: | 50HZ | Power Supply: | 380V / 410V |
Size: | 8000mm×2440mm×2350mm | Material: | Manufacture , Channel Steel |
Highlight: | 50HZ rotary heat press machine,50HZ rotary heat press machine,3m/Min rotary heat press |
Product Description
410V 50HZ 3m/Min Roll To Roll Heat Press Machine / Fully Automatic Heat Press
1.Rotary Heat Transfer MachineDescription:
suitable for all kinds of wood, plastics, ceramics, calcium silicate board, metal and other planes on a layer of UV transfer film, so that the plate surface pattern level more clear, more three-dimensional sense.
- Describe
1 | Effective working size |
a:Effective width: 1320mm; b: thickness: 2-80mm c: length (shortest) : 300mm |
2 |
Power supply voltage: |
360-410V 50HZ |
3 | Material: | The shell is made of 1.5mm cold-rolled plate bending and welding, the surface is treated with liquid paint, the frame is made of 100*50mm channel steel, and the supporting wall is made of 20cm steel plate (A3 material). |
4 | Coating part | single group roll coating system is adopted, each group system consists of steel roller and silica gel wheel.And a pneumatic device, regulating the regulating wheel, so that paint evenly coated on the film paper. |
5 | Fitting part: | double rollers are used to extrude the transfer film to the substrate evenly, and automatic entanglement device is used to prevent the film from wrinkling. |
6 | Cots |
The diameter: ¢205mm, length: 1430mm, Japanese high-quality rubber production, wear-resistant, good elasticity, hardness can be customized according to customer requirements (30 degrees - 50 degrees) between, can resist all kinds of solvent using high-quality coupling transmission, bearing KHV bearing, Taiwan TDA frequency converter control cots speed. |
7 | Metering wheel: |
diameter: ¢130mm, length: 1430mm, using 45# seamless steel tube by CO² welding, surface fine grinding, do dynamic balance, runout is less than 0.05mm, the surface by hard chrome plating and polishing to achieve bright effect.Direct plug - in connection drive, can really achieve with the drive motor combined into one. |
8 | UV part: | 5 sets of independent light boxes, 2 Primarc gallium lamps, 1 Primarc iron lamps, 2 mercury mercury lamps, the height and Angle of the lamps can be adjusted. |
9 | UV lampshade | the use of professional reflective materials (Germany Alanod reflective piece) reflect ultraviolet light, durable greatly improve the utilization rate of ultraviolet light (can be increased by more than 30%). |
10 | ||
11 |
3.Feature:
1. The pictures are exquisite and can be completed by ordinary hot stamping machine and heat transfer machine. .
2. The operation is simple, the printing is exquisite, and the production cost is low.
3. The product loss is small, the added value is high, and the process decoration is strong.
4, in line with green printing standards, no environmental pollution.
4.FAQ:
Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
5.About us:
Dongguan Osmanuv Mechanical Equipment Co., Ltd. is a design, research, development, manufacturing as one of the UV equipment, UV equipment and coating, infrared IR equipment, professional production enterprises, automation equipment, environmental equipment, the implementation of the whole plant export.
At present, the company produces the product variety is complete, has been widely used in external wall insulation integration, inner wall decorative plate plastic spraying, bamboo and wood coating, screen printing, PCB, LCD, LED, electronic components, shoe materials, glass products, adhesive, fiber, vacuum plating UV, water transfer printing and many other fields of industry, and has been praised by customers.
Since its start has been the spirit of "high-tech, high investment, high-quality, high-management" of the modern strategy for your business to provide the best, the best service is our aim and the supreme glory, let us cooperate to carry to create more high-quality products, which all sectors of society to create a better future!
Company has passed ISO9001: 2015 quality management system certification.
