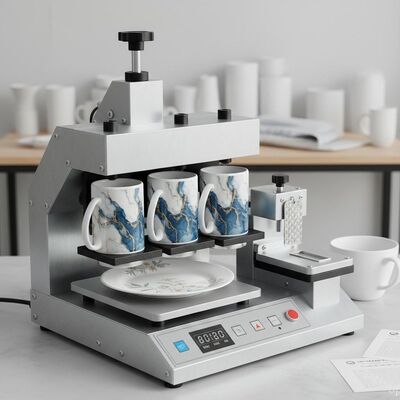

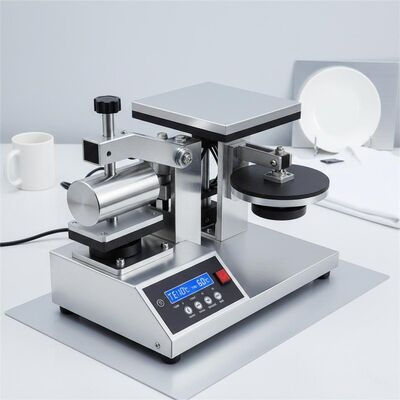

Porcelain Cups Rotary Heat Press Sublimation For Plates Clothes Metal
Product Details:
| Place of Origin: | China |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 |
| Model Number: | OSM-ZY- 1320T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 30 WORK DAYS |
| Payment Terms: | T/T,Western Union |
|
Detail Information |
|||
| Product Name: | Thermal Transfer Equipment | Size: | 3000 Mm X 2300 Mm X 2100mm |
|---|---|---|---|
| Color: | Computer White / Green | Speed: | 1-3 M/min |
| Supply Voltage: | 380V 50HZ | Working Height: | 850mm (belt Height From Ground), Roller Height With Position Display |
| Highlight: | Clothes Rotary Heat Press Sublimation,Rotary Heat Press Sublimation 3m/min,1m/min Rotary Heat Transfer Machine |
||
Product Description
Thermal transfer machine is a general term for machines used in thermal transfer technology. Thermal transfer machines include flat heat transfer machines, high-pressure heat transfer machines, shaking head heat transfer machines, roasting cup machines, roasting pan machines, roasting cap machines and other thermal transfer printing machines.
Suitable for all kinds of wood, plastics, ceramics, calcium silicate board, metal and other plane overlay a layer of heat transfer film, so that the plate surface pattern level more clear, more three-dimensional sense.
| Specification | Details |
|---|---|
| Mechanical Dimension | 3000mm long × 2300mm wide × 2100mm high (Subject to actual size) |
| Effective Working Size | Effective width: 1300mm; Thickness: 1-60mm; Length (shortest): 600mm |
| Supply Voltage | 380V 50HZ |
| Material | Shell made of 1.5mm cold-rolled plate bending and welding, surface treated with liquid paint, frame made of 100×50mm channel steel, supporting wall made of 20cm steel plate (A3 material) |
| Fitting Part | Double roll extrusion simultaneously ensures transfer film evenly bonds to substrate, with automatic entanglement device to prevent film wrinkles |
| Silica Gel Press Roller | Diameter: Ø210mm, Length: 1400mm, made of high-quality high-temperature resistant Japanese silica gel, wear-resistant, good elasticity, hardness customizable (30-50 degrees), resistant to various solvents with high-quality coupling transmission, uses Japanese NSK bearings, frequency converter controls speed |
| Conveying Mode | Cots transfer system for smooth conveying and long service life |
| Transportation Speed | 1-3 meters/min |
| Working Height | 850mm (belt height from ground), roller height equipped with position display |
| Electrical Components | OMRON relay, Delta frequency converter, reducer, CHNT contactor, CKC brand delay, Japan Wazumi company switches, all compliant with CE standards |
| Safety Device | Leakage circuit breaker, motor overload protection, emergency switch, control line fuse, all compliant with international safety standards |
We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
We will test your samples on our machines and provide video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
Fully compliant with GMP & ISO standards and our products have passed CE certification for exporting.
One year warranty with lifelong maintenance and technical support.
