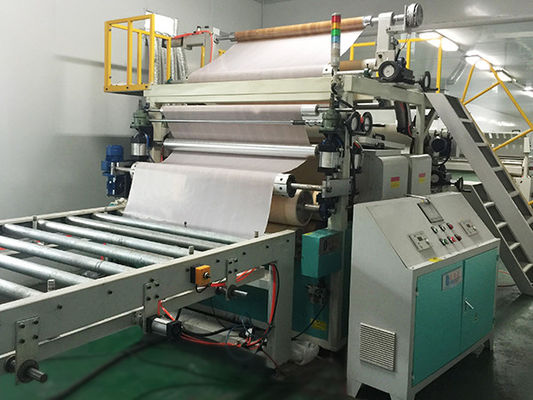

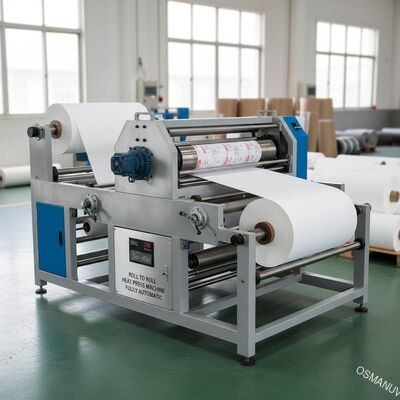

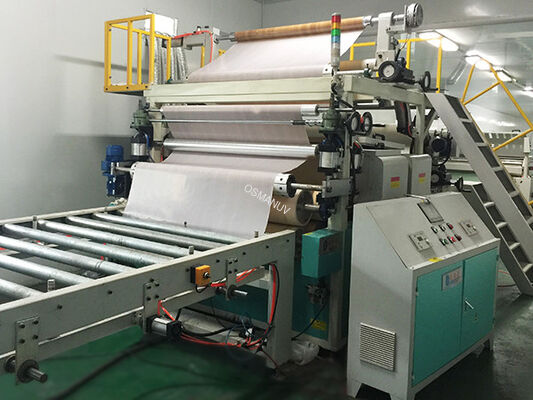

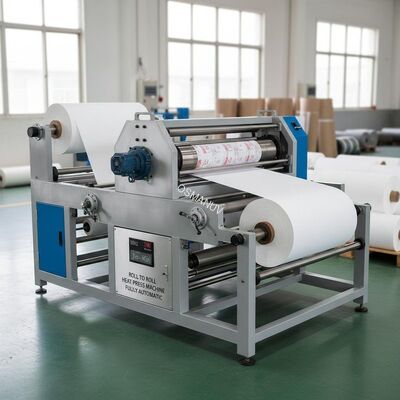

Roll To Roll Heat Press Machine Fully Automatic 50HZ 3m/Min Rotary

Roll To Roll Heat Press Machine Fully Automatic 50HZ 3m/Min Rotary
Roll To Roll Heat Press Machine Fully Automatic 50HZ 3m/Min Rotary Product Overview 410V 50HZ 3m/Min Roll To Roll Heat Press Machine / Fully Automatic Heat Press This rotary heat transfer machine is suitable for applying UV transfer film to various materials including wood, plastics, ceramics, ...
Place of Origin:China
Brand Name:Osmanuv
Certification:ISO9001
Model Number:OSM-FM-1320
Minimum Order Quantity:1 set
Product Custom Attributes
Highlight

Rotary 380V Heat Press Machine

,

Rotary 3m/Min Heat Press Machine

,

Roll To Roll Rotary Heat Transfer Machine

Product Name:
UV Five Lamps Transfer Equipment
Color:
White And Blue Or Green
Voltage:
50HZ
Power Supply:
380V / 410V
Size:
8000mm×2440mm×2350mm
Material:
Manufacture , Channel Steel
Product Description
Roll To Roll Heat Press Machine Fully Automatic 50HZ 3m/Min Rotary
Product Overview

410V 50HZ 3m/Min Roll To Roll Heat Press Machine / Fully Automatic Heat Press

This rotary heat transfer machine is suitable for applying UV transfer film to various materials including wood, plastics, ceramics, calcium silicate board, metal, and other flat surfaces. The process enhances pattern clarity and creates a more three-dimensional appearance on plate surfaces.

Technical Specifications
1 Effective working size Effective width: 1320mm; Thickness: 2-80mm; Length (shortest): 300mm
2 Power supply voltage 360-410V 50HZ
3 Material Shell: 1.5mm cold-rolled plate bending and welding, surface treated with liquid paint; Frame: 100*50mm channel steel; Supporting wall: 20cm steel plate (A3 material)
4 Coating part Single group roll coating system with steel roller and silica gel wheel. Includes pneumatic device and regulating wheel for even paint application on film paper.
5 Fitting part Double rollers for even extrusion of transfer film to substrate; Automatic entanglement device prevents film wrinkling.
6 Cots Diameter: ￠205mm, Length: 1430mm; Japanese high-quality rubber production, wear-resistant, good elasticity; Hardness customizable (30-50 degrees); Resistant to various solvents; High-quality coupling transmission with KHV bearing; Taiwan TDA frequency converter controls cots speed.
7 Metering wheel Diameter: ￠130mm, Length: 1430mm; 45# seamless steel tube with CO² welding; Surface fine grinding with dynamic balance; Runout less than 0.05mm; Surface hard chrome plating and polishing for bright effect; Direct plug-in connection drive integrated with drive motor.

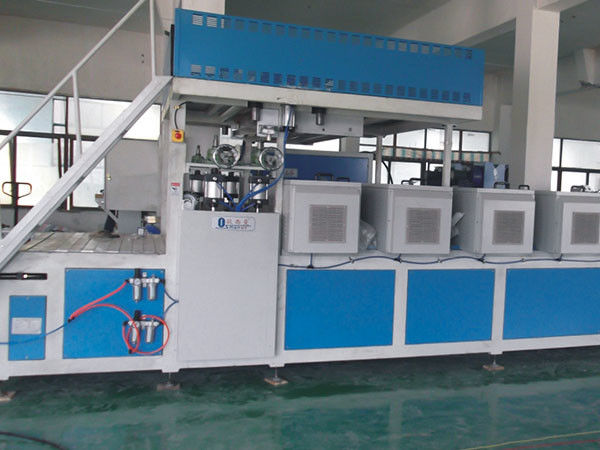

8 UV part 5 sets of independent light boxes; 2 Primarc gallium lamps, 1 Primarc iron lamp, 2 mercury lamps; Lamp height and angle adjustable.
9 UV lampshade Professional reflective materials (Germany Alanod reflective piece) reflect ultraviolet light; Durable construction increases UV light utilization rate by over 30%.
Key Features
  • Produces exquisite patterns that can be completed by ordinary hot stamping and heat transfer machines
  • Simple operation with exquisite printing results and low production costs
  • Minimal product loss with high added value and strong process decoration capabilities
  • Complies with green printing standards with no environmental pollution
Roll To Roll Heat Press Machine - Fully Automatic Industrial Equipment
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: We provide sample testing on our machines with video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Our production follows GMP & ISO standards and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty with lifelong maintenance and technical support.
About Our Company

Dongguan Osmanuv Mechanical Equipment Co., Ltd. is a professional enterprise specializing in design, research, development, and manufacturing of UV equipment, coating systems, infrared IR equipment, and automation equipment. We implement complete plant export solutions.

Our comprehensive product range is widely used in external wall insulation integration, inner wall decorative plate plastic spraying, bamboo and wood coating, screen printing, PCB, LCD, LED, electronic components, shoe materials, glass products, adhesive, fiber, vacuum plating UV, water transfer printing, and many other industrial fields, earning consistent customer praise.

Since our establishment, we have maintained a modern strategy focused on "high-tech, high investment, high-quality, high-management" to provide the best service and products. Our company has passed ISO9001:2015 quality management system certification.
