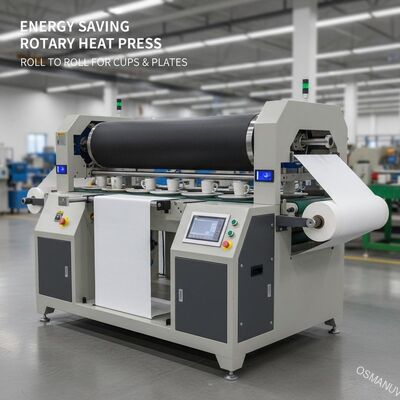

Energy Saving Rotary Heat Press Machine Roll To Roll For Cups Plates

Energy Saving Rotary Heat Press Machine Roll To Roll For Cups Plates

Product Details:

Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: OSM-ZY- (300~1320)T

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 30 WORK DAYS
Payment Terms: T/T, Western Union
Get Best Price Contact Now

Detail Information

Product Name: Thermal Transfer Equipment Size: 3000 Mm X 2300 Mm X 2100mm
Color: Computer White / Green Speed: 1-3 M/min
Supply Voltage: 380V 50HZ Working Height: 850mm (belt Height From Ground), Roller Height With Position Display
High Light:

3m/min Rotary Heat Press Machine

,

Roll To Roll Rotary Heat Press Machine

,

Rotary Heat Transfer Machine For Cups

Product Description

Height Press Rotary Heat Transfer Machine Roll To Roll Energy Saving for cups, plates machine manufacturer



Use thermal transfer ink to print any pictures such as portraits and landscapes on plain paper or high-precision printing paper, and then heat them to a certain temperature within a few minutes by thermal transfer corresponding thermal transfer equipment to transfer the image on the paper. Realistic color transfer to porcelain cups, plates, plates, clothes, metal and other materials.



1.Rotary Heat Transfer Machine Description:



suitable for all kinds of wood, plastics, ceramics, calcium silicate board, metal and other plane overlay a layer of heat transfer film, so that the plate surface pattern level more clear, more three-dimensional sense.



2.Rotary Heat Transfer Machine:



  1 Mechanical dimension:

3000mm long * 2300mm wide * 2100mm high.

(Subject to the actual size).

  2 Effective working size

a. Effective width: 1300mm;

b: Thickness: 1-60mm

c, Length (shortest) : 600mm.

  3 Supply voltage: 380V 50HZ.
  4 Material The shell is made of 1.5mm cold-rolled plate bending and welding, the surface is treated with liquid paint, the frame is made of 100*50mm channel steel, and the supporting wall is made of 20cm steel plate (A3 material).
 5  Fitting part:

the double roll extrusion at the same time, so that the transfer film evenly bonded to the substrate, and through automatic entanglement device to prevent the film wrinkle.

  6 Silica gel press roller: diameter: ¢210mm, length: 1400mm, high quality high temperature resistant silica gel made of Japan, wear-resisting, good elasticity, hardness can be customized according to customer requirements (30 degrees -- 50 degrees) between, can be resistant to all kinds of solvent with high quality coupling transmission, bearing using Japanese NSK bearing, Taiwan Bay Delphi frequency converter control cots speed.
  7 Conveying mode Adopt cots to transfer, smooth conveying and long service life.
  8 Transportation speed: 1 ~ 3 meters/min.
  9 Working height: 850mm (belt height from ground), roller height equipped with position display.
  10 Electrical appliances: OMRON relay, Siemens motor, Delta frequency converter, reducer, CHNT contactor, delay using CKC brand, switch using Japan Wazumi company production, all in line with CE standard.
  11 Safety device:
The machine has leakage circuit breaker, motor overload protection, abnormal emergency switch, control line fuse and other compliance with international safety standards.

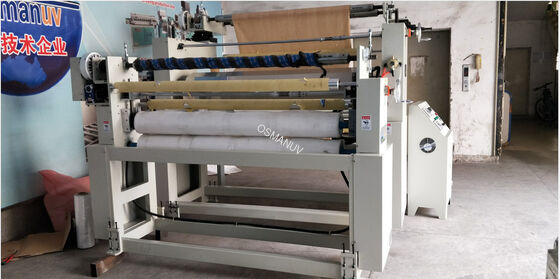

Energy Saving Rotary Heat Press Machine Roll To Roll For Cups Plates 0



3.FAQ:



Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.

Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.

Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.

Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.



4.About us:



Dongguan Osmanuv Mechanical Equipment Co., Ltd. is a design, research, development, manufacturing as one of the UV equipment, UV equipment and coating, infrared IR equipment, professional production enterprises, automation equipment, environmental equipment, the implementation of the whole plant export.



At present, the company produces the product variety is complete, has been widely used in external wall insulation integration, inner wall decorative plate plastic spraying, bamboo and wood coating, screen printing, PCB, LCD, LED, electronic components, shoe materials, glass products, adhesive, fiber, vacuum plating UV, water transfer printing and many other fields of industry, and has been praised by customers.



Since its start has been the spirit of "high-tech, high investment, high-quality, high-management" of the modern strategy for your business to provide the best, the best service is our aim and the supreme glory, let us cooperate to carry to create more high-quality products, which all sectors of society to create a better future!



Company has passed ISO9001: 2015 quality management system certification.
