Clothes Metal Rotary Heat Press Sublimation For Porcelain Cups Plates

Clothes Metal Rotary Heat Press Sublimation For Porcelain Cups Plates

Product Details:

Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: OSM-ZY- 1320T

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 30 WORK DAYS
Payment Terms: T/T, Western Union
Get Best Price Contact Now

Detail Information

Product Name: Thermal Transfer Equipment Size: 3000 Mm X 2300 Mm X 2100mm
Color: Computer White / Green Speed: 1-3 M/min
Supply Voltage: 380V 50HZ Working Height: 850mm (belt Height From Ground), Roller Height With Position Display
High Light:

380V Rotary Heat Press Sublimation

,

850mm Height Rotary Heat Press Machine

,

Sublimation Rotary Heat Transfer Machine

Product Description

3m/Min 380V Rotary Heat Press Sublimation / Roll To Roll Heat Press



Thermal transfer machine is a general term for machines used in thermal transfer technology. Thermal transfer machines include flat heat transfer machines, high-pressure heat transfer machines, shaking head heat transfer machines, roasting cup machines, roasting pan machines, roasting cap machines and other thermal transfer printing machines.



1.Rotary Heat Transfer Machine Description:



suitable for all kinds of wood, plastics, ceramics, calcium silicate board, metal and other plane overlay a layer of heat transfer film, so that the plate surface pattern level more clear, more three-dimensional sense.



  • Describe



  1 Mechanical dimension:

3000mm long * 2300mm wide * 2100mm high.

(Subject to the actual size).

  2 Effective working size

a. Effective width: 1300mm;

b: Thickness: 1-60mmc,

Length (shortest) : 600mm.

  3 Supply voltage 380V 50HZ.
  4 Material

The shell is made of 1.5mm cold-rolled plate bending and welding, the surface is treated with liquid paint, the frame is made of 100*50mm channel steel, and the supporting wall is made of 20cm steel plate (A3 material).

  5 Fitting part:

the double roll extrusion at the same time, so that the transfer film evenly bonded to the substrate, and through automatic entanglement device to prevent the film wrinkle.

  6 Silica gel press roller diameter: ¢210mm, length: 1400mm, high quality high temperature resistant silica gel made of Japan, wear-resisting, good elasticity, hardness can be customized according to customer requirements (30 degrees -- 50 degrees) between, can be resistant to all kinds of solvent with high quality coupling transmission, bearing using Japanese NSK bearing, Taiwan Bay Delphi frequency converter control cots speed.
  7 Conveying mode Adopt cots to transfer, smooth conveying and long service life.
  8 Transportation speed

1 ~ 3 meters/min.

  9 Working height: 850mm (belt height from ground), roller height equipped with position display.
  10 Electrical appliances

OMRON relay, Siemens motor, Delta frequency converter, reducer, CHNT contactor, delay using CKC brand, switch using Japan Wazumi company production, all in line with CE standard.

  11 Safety device

The machine has leakage circuit breaker, motor overload protection, abnormal emergency switch, control line fuse and other compliance with international safety standards.



2.Rotary Heat Transfer Machine Deatils:

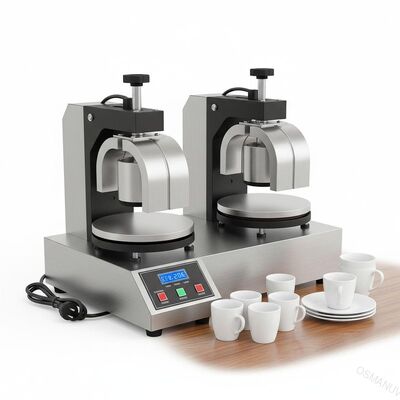

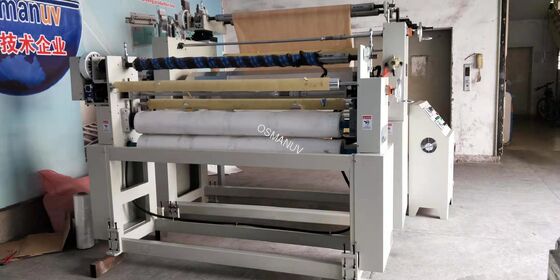

Clothes Metal Rotary Heat Press Sublimation For Porcelain Cups Plates 0

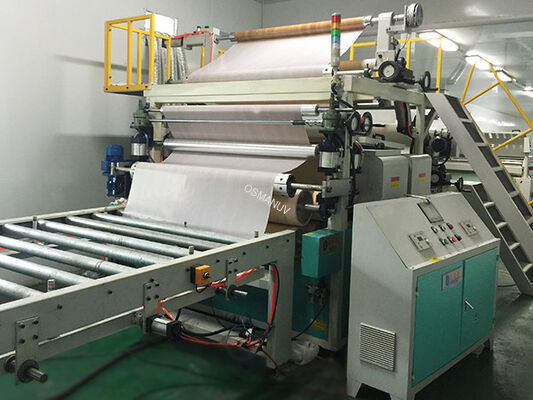

Clothes Metal Rotary Heat Press Sublimation For Porcelain Cups Plates 1



3.FAQ:


Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.



4.About us:



Dongguan Osmanuv Mechanical Equipment Co., Ltd. is a design, research, development, manufacturing as one of the UV equipment, UV equipment and coating, infrared IR equipment, professional production enterprises, automation equipment, environmental equipment, the implementation of the whole plant export.



At present, the company produces the product variety is complete, has been widely used in external wall insulation integration, inner wall decorative plate plastic spraying, bamboo and wood coating, screen printing, PCB, LCD, LED, electronic components, shoe materials, glass products, adhesive, fiber, vacuum plating UV, water transfer printing and many other fields of industry, and has been praised by customers.



Since its start has been the spirit of "high-tech, high investment, high-quality, high-management" of the modern strategy for your business to provide the best, the best service is our aim and the supreme glory, let us cooperate to carry to create more high-quality products, which all sectors of society to create a better future!



Company has passed ISO9001: 2015 quality management system certification.
