Mesh Belt UV Food Irradiation Machine For Package Board Carton

Mesh Belt UV Food Irradiation Machine For Package Board Carton
Mesh Belt UV Food Irradiation Machine For Package Board Carton
Mesh Belt UV Food Irradiation Machine For Package Board Carton Mesh Belt UV Food Irradiation Machine For Package Board Carton Mesh Belt UV Food Irradiation Machine For Package Board Carton Mesh Belt UV Food Irradiation Machine For Package Board Carton Mesh Belt UV Food Irradiation Machine For Package Board Carton Mesh Belt UV Food Irradiation Machine For Package Board Carton Mesh Belt UV Food Irradiation Machine For Package Board Carton Mesh Belt UV Food Irradiation Machine For Package Board Carton Mesh Belt UV Food Irradiation Machine For Package Board Carton Mesh Belt UV Food Irradiation Machine For Package Board Carton Mesh Belt UV Food Irradiation Machine For Package Board Carton

Large Image :  Mesh Belt UV Food Irradiation Machine For Package Board Carton

Product Details:
Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: OSM-UVC30-300AL
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 20 work days
Payment Terms: T/T,Western Union
Contact Now

Mesh Belt UV Food Irradiation Machine For Package Board Carton

Description
Product Name: Light Wave Irradiation Sterilizer Speed: 1-10m / Min
Power: 2KW Color: Computer White / Green / Silver
Specification: 3000mm*700mm*1350m Weight: 280KG
Feature: Energy
Highlight:

UV Food Irradiation Machine

,

Sterilizer Food Irradiation Machine

,

Carton UV Irradiation Machine

Mesh Belt UV Food Irradiation Machine For Package Board Carton
UV Sterilization Equipment Overview

The UV sterilizer is designed to eliminate microorganisms on products, packaging containers, packaging materials, and packaging components, reducing contamination to acceptable levels.

Technical Specifications
Specification Details
Equipment Model OSM-UVC30-300AL
Equipment Dimensions 3000mm (length) × 550mm (width) × 1380mm (height)
UV Sterilization Area 5000mm
Inlet and Outlet 500mm infeed; 180mm in and out

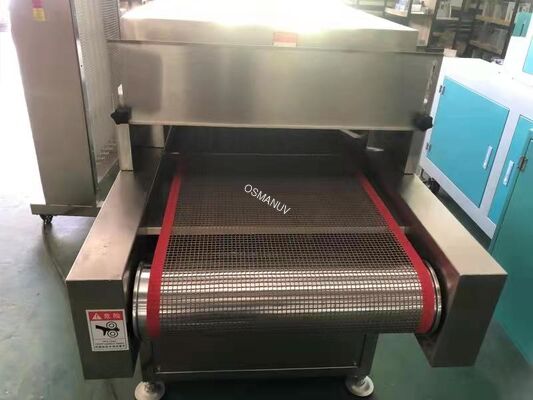

Conveyor Type Mesh belt
Conveyor Width 300mm
Speed Range 1-10m/min, stepless speed regulation
Material Construction SUS 304 stainless steel throughout
UV Germicidal Lamps 30w tubes (30 total) - 15 top (downward irradiation), 15 bottom (upward irradiation)
Exhaust Power 5 sets of 38w 220v
Conveyor Motor 120w 220v
Conveying Direction Left to right
Conveyor Height from Ground 780 ± 50mm
Safety Devices Earth leakage circuit breakers, control line fuses - compliant with international safety standards
Product Images

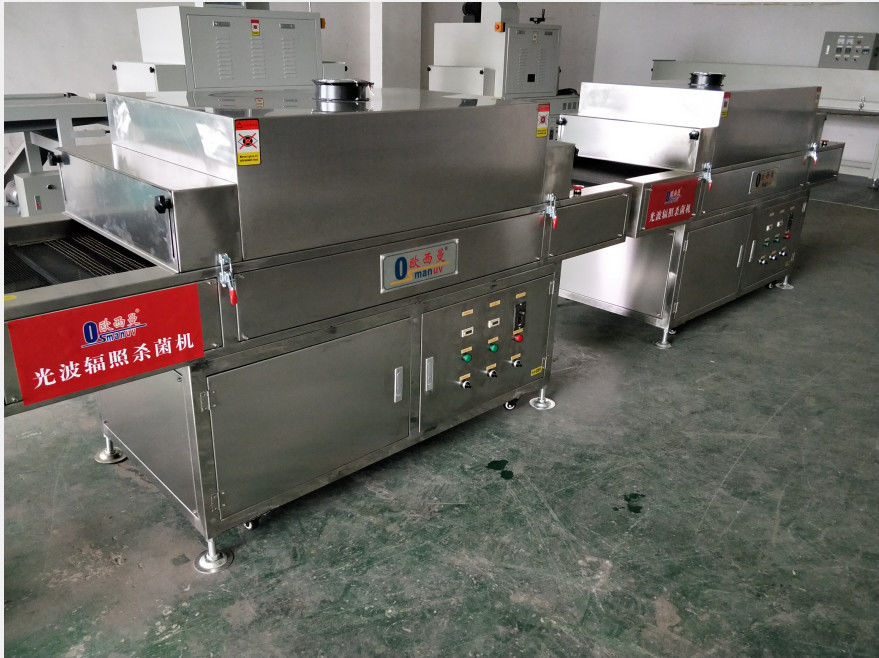

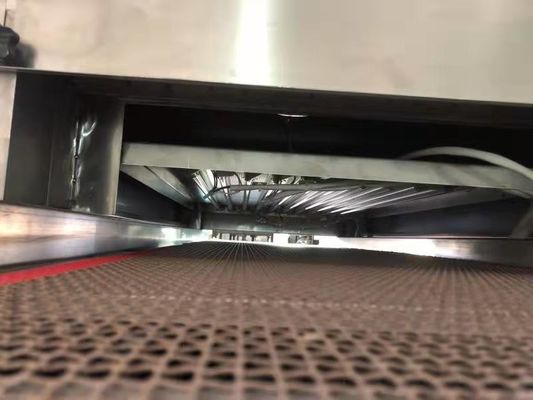

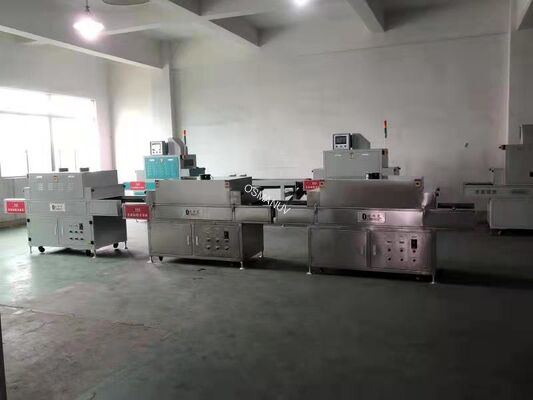

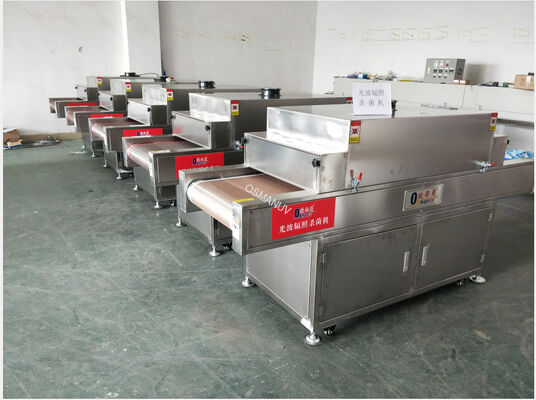

Mesh Belt UV Food Irradiation Machine exterior view Close-up view of UV sterilization chamber Control panel and operational interface
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
How can I verify your machine quality?
We provide sample testing on our machines with video documentation. Factory visits are also available. Our products are widely used in China, Southeast Asia, South America, and Europe.
What certifications do you have?
Our production follows GMP & ISO standards, and our products have passed CE certification for export.
What is your Quality Warranty?
One year warranty with lifelong maintenance and technical support.
About Our Company

Dongguan Osmanuv Mechanical Equipment Co., Ltd. specializes in the design, research, development, and manufacturing of UV equipment, coating systems, infrared IR equipment, and automation and environmental equipment for global export.

Our comprehensive product line serves numerous industrial sectors including external wall insulation integration, inner wall decorative plate plastic spraying, bamboo and wood coating, screen printing, PCB, LCD, LED, electronic components, shoe materials, glass products, adhesives, fibers, vacuum plating UV, and water transfer printing.

We operate with a modern strategy focused on high technology, investment, quality, and management to provide optimal solutions and service excellence.

Quality Certification: ISO9001:2015 Quality Management System Certified
