Product Details:
|
| Product Name: | Thermal Transfer Equipment | Size: | 3000 Mm X 2300 Mm X 2100mm |
|---|---|---|---|
| Color: | Computer White / Green | Speed: | 1-3 M/min |
| Supply Voltage: | 380V 50HZ | Working Height: | 850mm (belt Height From Ground), Roller Height With Position Display |
| Feature: | Energy Saving | ||

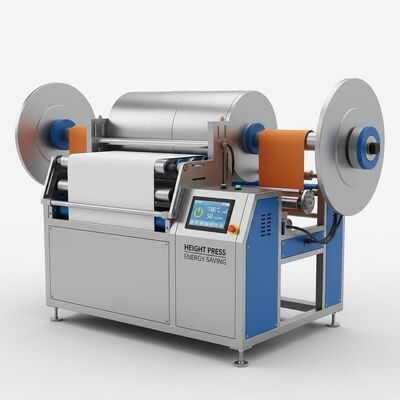

| Highlight: | Height Press Rotary Heat Transfer Machine,Energy saving Rotary Heat Transfer Machine,rotary heat press sublimation |
||

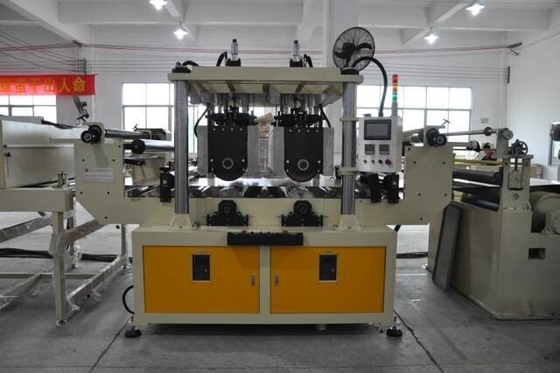

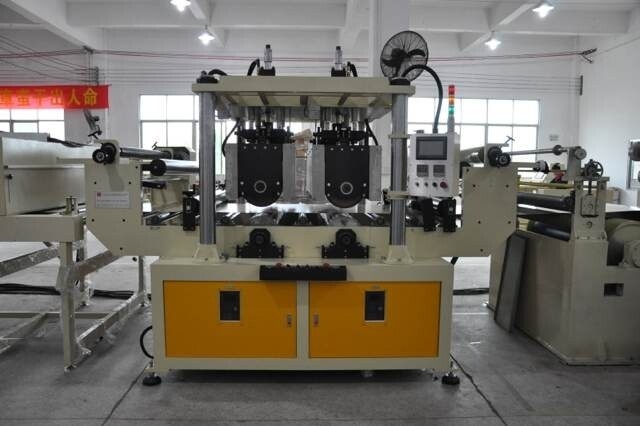

Thermal transfer, also known as sublimation heat transfer, enables printing of portraits, landscapes, and other images using thermal transfer ink on plain paper or high-precision printing paper. Through corresponding thermal transfer equipment heating to specific temperatures within minutes, vivid images are transferred from paper to various substrates including porcelain cups, porcelain plates, clothing, metal materials, and more.
Suitable for overlaying heat transfer film on various materials including wood, plastics, ceramics, calcium silicate boards, metal, and other planar surfaces. This process enhances pattern clarity and creates a more three-dimensional appearance on the substrate surface.
A: We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China. A: We provide sample testing on our machines with video documentation for your review. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe. A: Our production follows GMP & ISO standards, and our products have passed CE certification for exporting. A: One year warranty with lifelong maintenance and technical support.
1
Mechanical Dimension
3000mm long × 2300mm wide × 2100mm high (Subject to actual size)
2
Effective Working Size
a. Effective width: 1300mm
b. Thickness: 1-60mm
c. Length (shortest): 600mm
3
Supply Voltage
380V 50HZ
4
Material
Shell: 1.5mm cold-rolled plate bending and welding, surface treated with liquid paint
Frame: 100×50mm channel steel
Supporting wall: 20cm steel plate (A3 material)
5
Fitting Part
Double roll extrusion ensures even bonding of transfer film to substrate, with automatic entanglement device to prevent film wrinkles
6
Silica Gel Press Roller
Diameter: Ø210mm, Length: 1400mm
High-quality high-temperature resistant silica gel from Japan
Wear-resistant, good elasticity, customizable hardness (30-50 degrees)
Resistant to various solvents with high-quality coupling transmission
Bearing: Japanese NSK bearing
Frequency converter controls roller speed
7
Conveying Mode
Roller transfer system for smooth conveying and long service life
8
Transportation Speed
1-3 meters/min
9
Working Height
850mm (belt height from ground), roller height equipped with position display
10
Electrical Components
OMRON relay, Delta frequency converter, reducer, CHNT contactor
Delay using CKC brand, switches from Japan Wazumi company
All components comply with CE standards
11
Safety Devices
Leakage circuit breaker, motor overload protection, emergency stop switch,
control line fuse, and other safety features complying with international standards
