Quality Stepless Speed Regulation 365nm UV Irradiation Machine factory

Stepless Speed Regulation 365nm UV Irradiation Machine

Name: Stepless Speed Regulation 365nm UV Irradiation Machine
Brand: Dongguan Osmanuv Machinery Equipment Co., Ltd
SKU: OSM-UVC50-300AL
Price: 4,500.00 USD
Availability: InStock

Stepless Speed Regulation 365nm UV Irradiation Machine Stainless Steel Tube Light Wave UV Irradiation Machine Designed for medical, food packaging, and clothing supplies factories, this advanced UV irradiation system ensures efficient and reliable performance. Utilizes LED light emitting technology ...

Place of Origin:China

Brand Name:Osmanuv

Certification:ISO9001

Model Number:OSM-UVC50-300AL

Minimum Order Quantity:1 set

Price:Negotiable

Product Custom Attributes

Highlight

365nm UV Irradiation Machine

Stepless Speed Regulation UV Irradiation Machine

Stepless Speed Regulation UV Irradiator

Product Name:

Light Wave Irradiation Sterilizer

Speed:

1-10m / Min

Power:

2KW

Color:

Computer White / Green / Silver

Specification:

2500mm*700mm*1350m

Weight:

280KG

Feature:

Energy Saving

Product Description

Stepless Speed Regulation 365nm UV Irradiation Machine

Stainless Steel Tube Light Wave UV Irradiation Machine

Designed for medical, food packaging, and clothing supplies factories, this advanced UV irradiation system ensures efficient and reliable performance.

Utilizes LED light emitting technology with 365nm ultraviolet point light source
Eliminates thermal radiation and deep ultraviolet light effects on product components
Employs high-energy 365nm ultraviolet LED for rapid UV glue curing
Significantly enhances production efficiency with quick curing capabilities

Technical Specifications - Model OSM-UVC50-300AL

Specification	Details
Equipment Dimensions	2500mm (L) × 550mm (W) × 1380mm (H)
UV Sterilization Area	500mm
Inlet and Outlet	500mm infeed; 500mm infeed; 180mm in and out

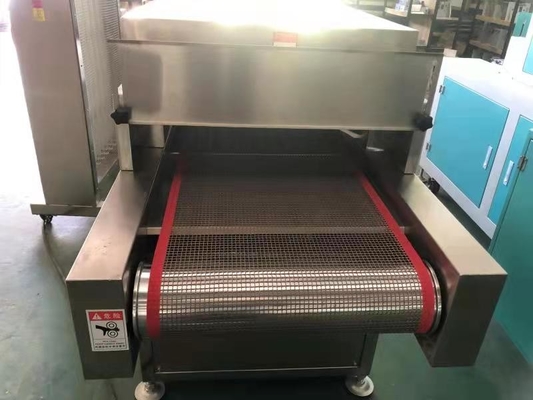

Conveyor Type	Mesh belt
Conveyor Width	300mm
Speed Range	1-10m/min with stepless speed regulation
Construction Material	SUS 304 stainless steel throughout
UV Germicidal Lamps	30W tubes (50 total: 25 top downward irradiation, 25 bottom upward irradiation)
Exhaust Power	5 sets of 38W 220V
Conveying Motor	120W 220V
Conveying Direction	Left to right
Conveyor Belt Height	780 ± 50mm from ground
Safety Devices	Earth leakage circuit breakers, control line fuses - compliant with international safety standards

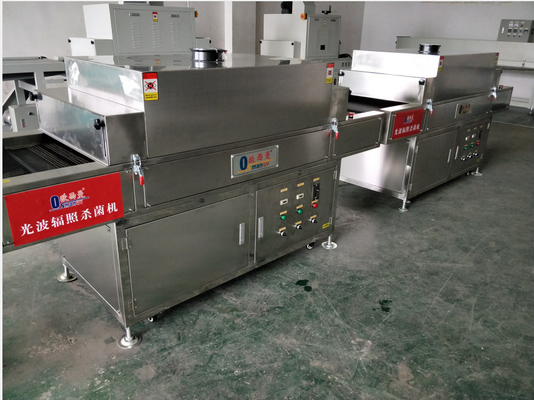

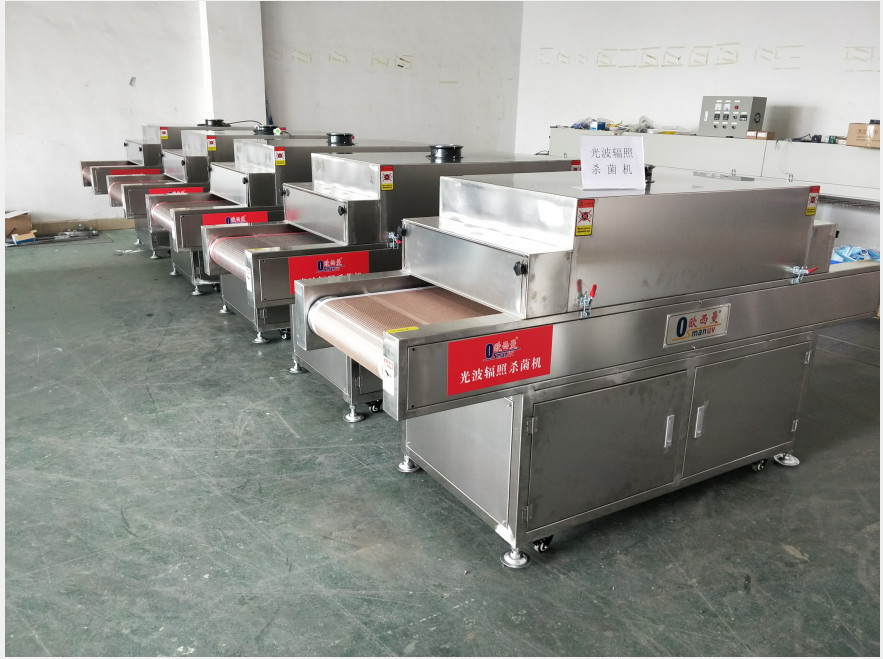

Product Images

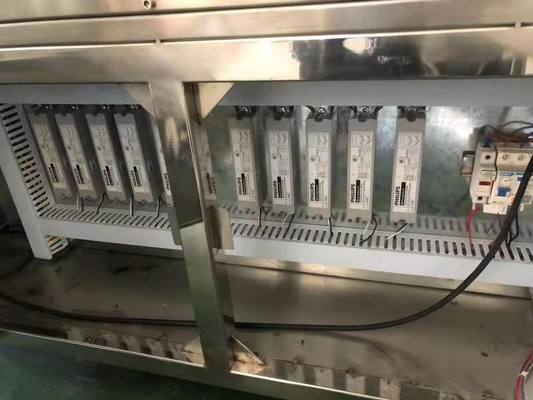

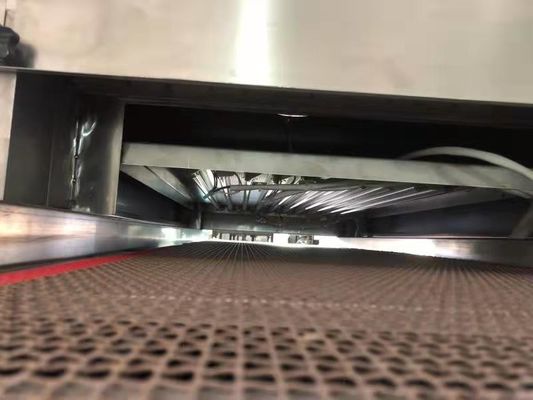

UV Irradiation Machine internal components

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.

How can I verify your machine quality?

We provide sample testing on our machines with video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.

What certifications do you have?

Our production complies with GMP & ISO standards, and our products have passed CE certification for export.

What is your Quality Warranty?

One year warranty with lifelong maintenance and technical support.
