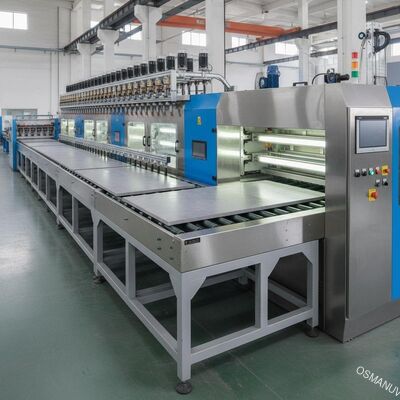

90 Degree Rotating UV Coating Machine For Cement Fiberboard

90 Degree Rotating UV Coating Machine For Cement Fiberboard

Product Details:

Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: OSM-ZH-1320H.

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 30 work days
Payment Terms: T/T, Western Union
Get Best Price Contact Now

Detail Information

Product Name: 90 Degree Steering Conveyor Dimensions: 2800mm Long × 2800mm Wide × 900mm High. (Subject To Actual Size)
Power Supply Voltage: 380V, 50HZ, Three-phase Five-wire System Running Speed: 5-20M/min Adjustable
Conveying Direction: From Left To Right Rotating Device: Using 90º Rotating Electric
High Light:

90 Degree Rotating UV Coating Machine


UV Coating Machine For Cement Fiberboard


90 Degree Rotating UV Coater Machine

Product Description

UV Coating Machine 90deg Rotating Electric For cement Fiberboard Factory
The high-clean organic coating equipment has the characteristics of flat plate shape, high appearance quality requirements, smooth and fine coating film, and soft color; and the paint film has strong adhesion and good bending processing performance. Under the premise of various complex processing, coating The layer does not crack or peel; it has certain anti-pollution ability, easy cleaning and scrub resistance characteristics, and is mostly used in walls such as clean rooms. High-cleanliness organic coating board is a kind of functional organic coating board product.
1.UV Coating Machine Description:
 1 Product name: 90 degree jacking rotary plate machine.
 2 Model: OSM-ZH-1320H.
 3  Features: suitable for all kinds of calcium silicate board, glass magnesium board, cement fiberboard, board furniture, door panels, MDF board, particleboard and other flow work of the workpiece 90 ° to transport.
 4 Mechanical dimension: 2800mm long × 2800mm wide × 1800mm high. (Subject to the actual size).
 5 Power supply voltage: 380V, 50HZ, three-phase five-wire system.
 6  Power: 1.5KW.
Main frame:
The main steel frame is made of 3mm thick cold-rolled steel plate made of Q235, the legs are welded with 80*40mm carbon steel square tubes, and the distance between the rollers is less than 10cm.
 8 Side plate: It is made of 3mm steel plate bending, the surface is sprayed with powder, and the line end is equipped with a photoelectric switch and a start-stop switch.
 9 Power part: The power part adopts Taiwanese city state gear reducer and motor, tapered roller chain drive, the distance between the rollers is less than 10cm. There is an anti-pinch steel plate between the transmission chain and the roller for bending treatment to ensure the safety of the equipment, and the turning plate is completed The rear is equipped with a centering device, and the airtaker brand is used for the centering cylinder. The chain wheel and the chain are connected by a key connection.
 10 Control electrical parts: Control electrical appliances use Chint electrical components, travel switches and photoelectric switches use Omron brand; control Yaskawa PLC and Delta inverters. The control lines are neat, and the incoming and outgoing lines without towing lines are marked with numbers and correspond to the wiring diagram correctly. All electrical parts should be in the control box.
 11 Running speed: 5-20M/min can be adjusted, the movement rate is 4.0 boards per minute, and the equipment transmission speed is uniform and stable.
 12 Conveying method: The drum is Φ75 cold drawn steel pipe, and the surface is galvanized. The bottom side of the drum surface is 20mm.
 13   The driving device adopts the Taiwan city state reducer motor, the power is 1500w, 1 set, the linear speed of the drum is 20 meters/minute.
 14   The conveyor moving in and out has automatic identification, which is automatically carried out by electric control. Electric realizes translation, pneumatic realizes rotation.
 15 Rotating device: using 90º rotating motor.

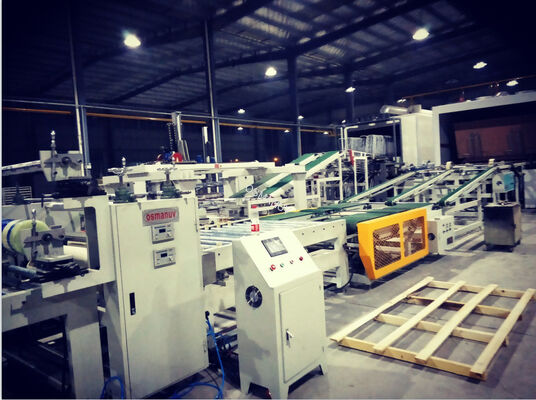

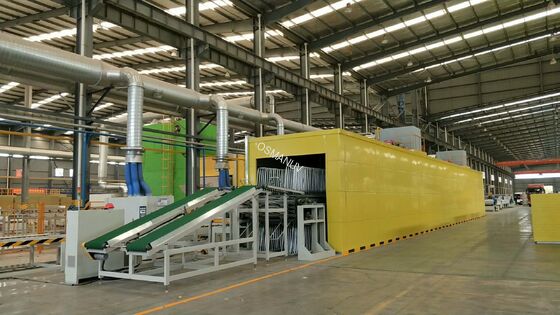

90 Degree Rotating UV Coating Machine For Cement Fiberboard 090 Degree Rotating UV Coating Machine For Cement Fiberboard 1


Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.


4.About us:


Dongguan Osmanuv Mechanical Equipment Co., Ltd. is a design, research, development, manufacturing as one of the UV equipment, UV equipment and coating, infrared IR equipment, professional production enterprises, automation equipment, environmental equipment, the implementation of the whole plant export.


At present, the company produces the product variety is complete, has been widely used in external wall insulation integration, inner wall decorative plate plastic spraying, bamboo and wood coating, screen printing, PCB, LCD, LED, electronic components, shoe materials, glass products, adhesive, fiber, vacuum plating UV, water transfer printing and many other fields of industry, and has been praised by customers.


Since its start has been the spirit of "high-tech, high investment, high-quality, high-management" of the modern strategy for your business to provide the best, the best service is our aim and the supreme glory, let us cooperate to carry to create more high-quality products, which all sectors of society to create a better future!

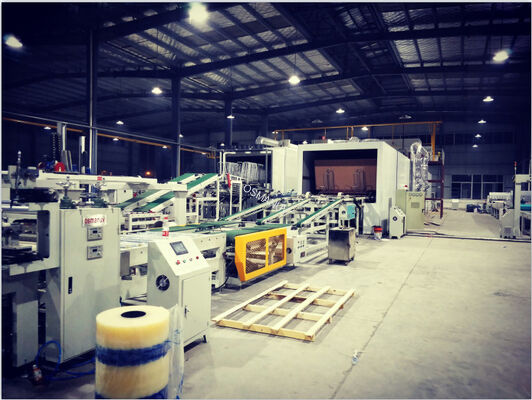

90 Degree Rotating UV Coating Machine For Cement Fiberboard 2
