Quality Mesh Belt UV Irradiation Machine 1 - 10m/min factory

Mesh Belt UV Irradiation Machine 1 - 10m/min

Name: Mesh Belt UV Irradiation Machine 1 - 10m/min
Brand: Dongguan Osmanuv Machinery Equipment Co., Ltd
SKU: OSM-UVC30-300AL
Price: 4,500.00 USD
Availability: InStock

Mesh Belt UV Irradiation Machine 1 - 10m/min Product Overview Professional UV sterilization equipment designed for industrial applications with adjustable conveyor speed and comprehensive safety features. Technical Specifications Model OSM-UVC30-300AL Equipment Dimensions 3000mm (length) × 550mm ...

Place of Origin:China

Brand Name:Osmanuv

Certification:ISO9001

Model Number:OSM-UVC30-300AL

Minimum Order Quantity:1 set

Price:Negotiable

Product Custom Attributes

Highlight

Mesh Belt UV Irradiation Machine

UV Irradiation Machine 10m/min

1m/min UV Sanitizer Machine

Product Name:

Light Wave Irradiation Sterilizer

Speed:

1-10m / Min

Power:

2KW

Color:

Computer White / Green / Silver

Specification:

3000mm*700mm*1350m

Weight:

280KG

Product Description

Mesh Belt UV Irradiation Machine 1 - 10m/min

Product Overview

Professional UV sterilization equipment designed for industrial applications with adjustable conveyor speed and comprehensive safety features.

Technical Specifications

Model	OSM-UVC30-300AL
Equipment Dimensions	3000mm (length) × 550mm (width) × 1380mm (height)
UV Sterilization Area	5000mm
Inlet and Outlet	500mm infeed; 180mm in and out
Conveyor Type	Mesh belt
Conveyor Width	300mm
Speed Range	1-10m/min, stepless speed regulation
Construction Material	SUS 304 stainless steel
UV Germicidal Lamps	30W tubes (30 tubes total) - 15 top lamps (downward irradiation) and 15 bottom lamps (upward irradiation)
Exhaust System	5 sets of 38W 220V exhaust fans
Conveyor Motor	120W 220V
Conveying Direction	Left to right
Conveyor Height from Ground	780 ± 50mm
Safety Features	Earth leakage circuit breakers, control line fuses, compliant with international safety standards

Product Images

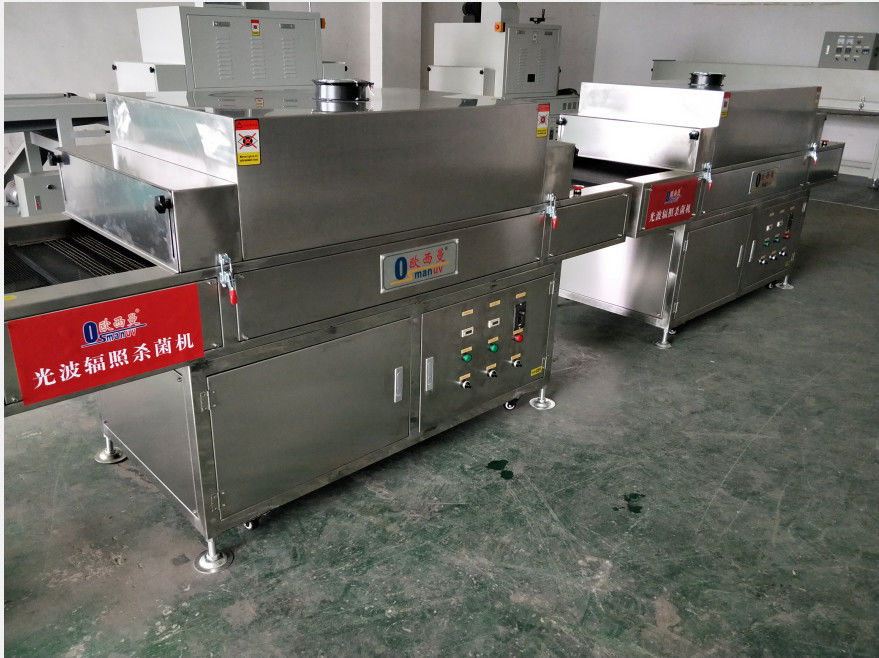

Mesh Belt UV Irradiation Machine front view

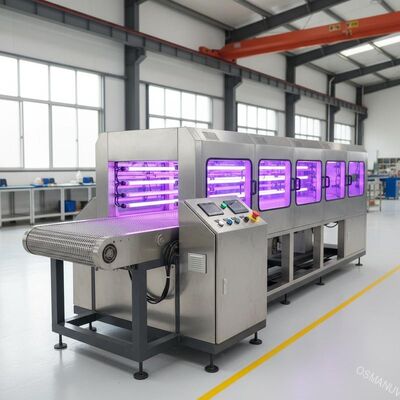

Mesh Belt UV Irradiation Machine side view

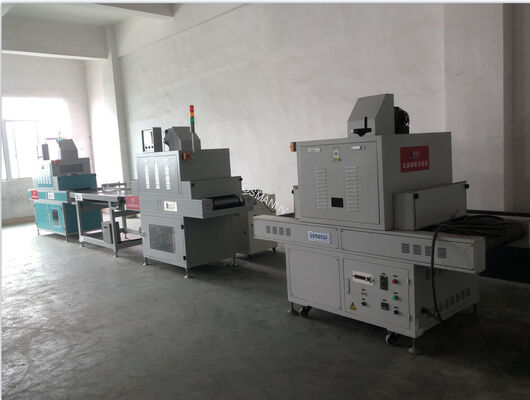

Mesh Belt UV Irradiation Machine operational view

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.

How can I verify your machine quality?

We can test your samples on our machines and provide video documentation. Factory visits are also available. Our products are widely used in China, Southeast Asia, South America, and Europe.

What certifications do you have?

Our production complies with GMP & ISO standards, and our products have passed CE certification for export.

What is your Quality Warranty?

One year warranty with lifelong maintenance and technical support.
