Product Details:

Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: OSM-FM-1320

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wooden box
Delivery Time: 30 - 40 WORK DAYS
Payment Terms: T/T, Western Union
Get Best Price Contact Now

Detail Information

Product Name: UV Five Lamps Transfer Equipment Color: White And Blue Or Green
Voltage: 50HZ Power Supply: 380V / 410V
Size: 8000mm×2440mm×2350mm Material: Manufacture , Channel Steel

Product Description

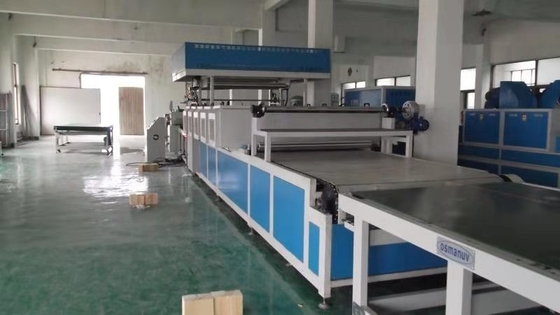

410V 50HZ 3m/Min Roll To Roll Heat Press Machine / Fully Automatic Heat Press



Description:



suitable for all kinds of wood, plastics, ceramics, calcium silicate board, metal and other planes on a layer of UV transfer film, so that the plate surface pattern level more clear, more three-dimensional sense.



Describe

  1 Effective working size

a:Effective width: 1320mm;

b: thickness: 2-80mm

c: length (shortest) : 300mm

  2

Power supply voltage:


360-410V 50HZ
  3 Material: The shell is made of 1.5mm cold-rolled plate bending and welding, the surface is treated with liquid paint, the frame is made of 100*50mm channel steel, and the supporting wall is made of 20cm steel plate (A3 material).

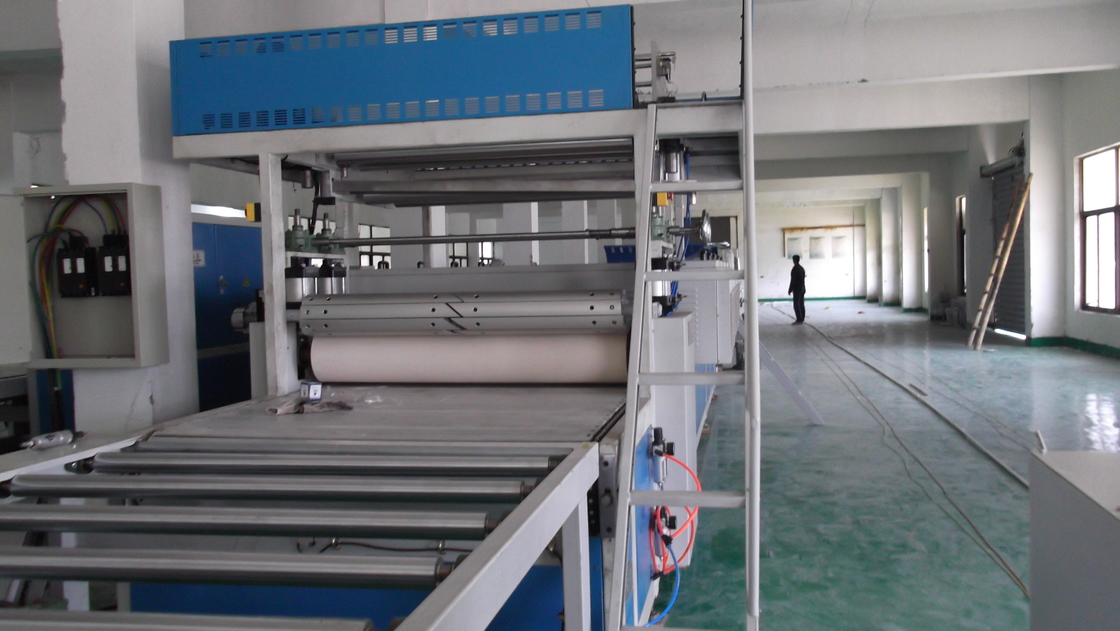

  4 Coating part single group roll coating system is adopted, each group system consists of steel roller and silica gel wheel.And a pneumatic device, regulating the regulating wheel, so that paint evenly coated on the film paper.
  5 Fitting part: double rollers are used to extrude the transfer film to the substrate evenly, and automatic entanglement device is used to prevent the film from wrinkling.
  6 Cots

The diameter: ¢205mm, length: 1430mm, Japanese high-quality rubber production, wear-resistant, good elasticity, hardness can be customized according to customer requirements (30 degrees - 50 degrees) between, can resist all kinds of solvent using high-quality coupling transmission, bearing KHV bearing, Taiwan TDA frequency converter control cots speed.


  7 Metering wheel:

diameter: ¢130mm, length: 1430mm, using 45# seamless steel tube by CO² welding, surface fine grinding, do dynamic balance, runout is less than 0.05mm, the surface by hard chrome plating and polishing to achieve bright effect.Direct plug - in connection drive, can really achieve with the drive motor combined into one.


  8 UV part: 5 sets of independent light boxes, 2 Primarc gallium lamps, 1 Primarc iron lamps, 2 mercury mercury lamps, the height and Angle of the lamps can be adjusted.
  9 UV lampshade
the use of professional reflective materials (Germany Alanod reflective piece) reflect ultraviolet light, durable greatly improve the utilization rate of ultraviolet light (can be increased by more than 30%).
  10
  11















Rotary Heat Press Machine or Fully Automatic Heat Press Roll To Roll Company 0





FAQ



Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.

Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.

Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.

Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
