Reciprocating Electrostatic Spraying Spot UV Coater

Reciprocating Electrostatic Spraying Spot UV Coater
Reciprocating Electrostatic Spraying Spot UV Coater
Reciprocating Electrostatic Spraying Spot UV Coater Reciprocating Electrostatic Spraying Spot UV Coater Reciprocating Electrostatic Spraying Spot UV Coater

Large Image :  Reciprocating Electrostatic Spraying Spot UV Coater

Product Details:
Place of Origin: CHINA
Brand Name: Osmanuv
Certification: ISO9001 And CE
Model Number: OSM-ZDPT-1320T
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: 35-45 Working days
Payment Terms: T/T,Western Union
Supply Ability: According to customer's demand
Contact Now

Reciprocating Electrostatic Spraying Spot UV Coater

Description
Calcium Silicate Board, Cement Fiber Board, Steel Plate And New Building Materials: Reciprocating Spraying Machine Size: 3900mm Long × 4600mm Deep × 2480mm High (according To The Actual Size)
Power Supply: 380VAC/50HZ Total Power: 22KW
Maximum Effective Processing Width: 1320Mmm Processing Thickness: 3-80mm
Spray Gun: Adopt American GRACO Automatic Spray Gun Electric Box: Independent Electric Box
Highlight:

Electrostatic Spraying Spot UV Coater

,

Reciprocating Spot UV Coater

,

Reciprocating Electrostatic Spraying Machine

Reciprocating Electrostatic Spraying Spot UV Coater
UV Coating Machine Electrostatic Spraying Machine Spot UV Coater For Digital Print Thick Digital
Product Overview

The coating process typically includes: pretreatment, polishing → coating → leveling → drying or curing → three wastes treatment. This equipment is designed to complete these coating processes efficiently and reliably.

  • Suitable for coatings on calcium silicate board, cement fiber board, steel plate, and new building materials surface spraying real stone paint, water-in-water nano-color glaze, etc.
  • Features Japanese Mitsubishi PLC man-machine interface, Mitsubishi servo motor, inverter and other imported electrical components for mechanical stability
  • Spray system utilizes American Graco pumps and Graco large-caliber spray guns for precise spray metering control
  • Slider module system employs Taiwan's high-speed module system for stable performance and durability
  • All electrical components use imported appliances (Schneider contactor, Mitsubishi servo, Japan Hequan switch, etc.)
  • Effective spraying width: 1300mm
Conveyor System
Conveyor Belt Whole machine uses acid and alkali resistant PU belt for product transportation with bottom paint recovery and cleaning devices to prevent paint residue and back-of-plate sticking, effectively reducing paint waste
Conveying Speed 1-5 m/min
Painting System
Spray Guns 4 American GRACO automatic spray guns (spray gun caliber: 1.1mm)
Oil Supply System Taiwan Polaroid pressure regulating and oil supply system to ensure perfect spraying quality
Spray Gun Layout Two groups of spraying tracks, each with 2 American GRACO automatic spray guns spraying at different angles; controlled by OMRON infrared photoelectric induction
Maximum Stroke 3400mm reciprocating
Spray Control Distance between spray gun and product adjustable according to product width, controlled by OMRON electric eye for any path movement within maximum stroke range, with gun open/stop control for uniform paint application and significant paint savings
Spray Booth Air Filtration System
Air Filtration High-efficiency air filter above automatic spraying machine effectively filters airborne dust and maintains spray booth cleanliness
Exhaust Gas Emission Paper paint filter system
Mechanical Configuration
Observation Front glass window for easy observation of sprayer working condition
Ventilation Two high-efficiency fans for exhaust and intake; intake fan brings fresh air through filter system to spray booth
Housing Material 1.5 cold-rolled plates bent and welded, computer color painted housing; inner wall made of 304# stainless steel mirror panel
Electrical Components Japan OMRON relay, CKC delay, Schneider contactor, Taiwan motor Chint leakage circuit breaker and other international safety standard compliant electrical appliances
Safety Devices Leakage circuit breakers, control circuit fuses, abnormal emergency switches complying with international safety standards
Machine Control Method
Man-Machine Interface Weilun
Control System Delta PLC control
Sliding Rail Drive Mitsubishi servo motor
Warranty Information
Machine Warranty Whole machine guaranteed for one year; electrical parts guaranteed for half a year
Air Filter Not covered by warranty. Can be blown, wiped or cleaned after contamination, or directly replaced with new product
Product Images

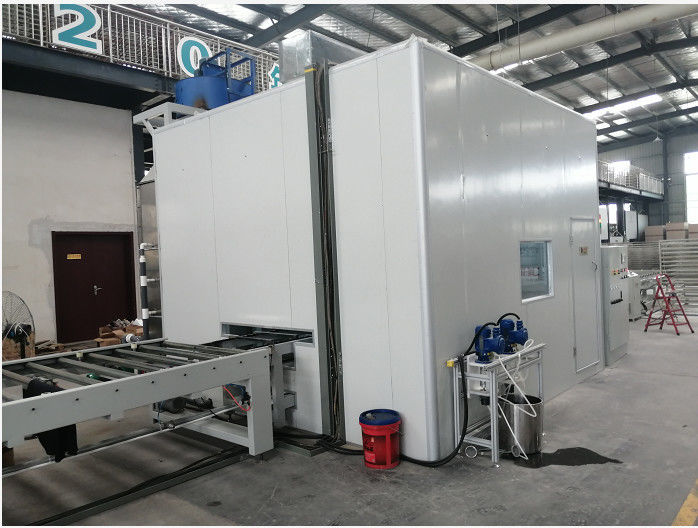

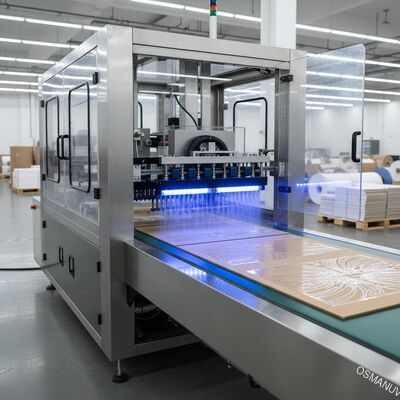

Reciprocating Electrostatic Spraying Spot UV Coater machine overview Close-up view of UV Coater spraying mechanism UV Coating Machine control panel and interface
