Mitsubishi PLC Control 4.5KW UV Coating Machine For Calcium Silicate Board

Mitsubishi PLC Control 4.5KW UV Coating Machine For Calcium Silicate Board
Mitsubishi PLC Control 4.5KW UV Coating Machine For Calcium Silicate Board UV Coating Machine UV Coater Small UV Coating Machine For Board Or Glass This advanced UV coating machine is designed for efficient surface treatment of various board materials and glass, featuring precision control and high...
Place of Origin:CHINA
Brand Name:Osmanuv
Certification:ISO9001 And CE
Model Number:OSM-PTCT-1320ZA
Minimum Order Quantity:1 Set
Price:Negotiable
Product Custom Attributes
Highlight

4.5KW UV Coating Machine

,

Mitsubishi PLC Control UV Coating Machine

,

Calcium Silicate Board UV Coater

Product Name:
Exterior Wall Insulation Integrated Board Coating Line
Color:
Computer White + Grass Green
Size:
3500mm Long X 2800mm Wide X 2680mm High
Mechanical Structure::
Parallel Movement Back And Forth, Up And Down
Power::
4.5KW
Conveying Direction::
From Left To Right.
Product Description
Mitsubishi PLC Control 4.5KW UV Coating Machine For Calcium Silicate Board
UV Coating Machine UV Coater Small UV Coating Machine For Board Or Glass

This advanced UV coating machine is designed for efficient surface treatment of various board materials and glass, featuring precision control and high-speed operation.

1. Scope of Application
  • Calcium silicate board, glass magnesium board, cement fiber board, panel furniture, door panel, MDF board, particle board and other plates
  • Smooth loading and unloading during production
  • Workpiece movement via vacuum chuck system
  • Japanese Mitsubishi PLC program control system for precise vacuum control
  • Strong vacuum pump with 100KG adsorption force, preventing sheet slippage
  • Production efficiency up to 6 times/min
  • Essential equipment for automatic flow in exterior wall decoration board and panel furniture production lines
2. Power System
  • Driven by Delta servo motor
  • Sprocket connected to chain drive
  • Automatically lubricated linear guide system
3. Control & Electrical Components
  • Chint control electrical appliances
  • Taiwan Delta frequency converters
  • Omron brand travel switches and photoelectric switches
  • Delta brand servo controller and PLC
  • Airtac brand pneumatic components
4. Operating Specifications
  • Adjustable speed according to process requirements
  • Speed range: 3-4 sheets/min
  • Conveying speed: 1-10M/min
  • Centering conveyor linear speed: 1-20m/min
5. Precision Control System
  • Delta PLC program control system
  • Precise vacuum suction plate control for up/down movement
  • Parallel direction movement for accurate suction and discharge
  • Fast and stable operation
6. Advanced Mechanical Design
  • Specially designed imported linear guide rails and sliding blocks
  • Smooth and rapid machine operation
  • Enhanced work efficiency
  • Light electric induction energy-saving operation mode
  • Adjustable roller conveying speed
  • Digital parameter display on screen
  • Intuitive operation with stable reliability
7. Auxiliary Equipment
  • Pre-loading pallet device
  • Automatic transport of pre-placed pallet sheets to loading position
  • Counting function with automatic alarm when quantity is reached
8. Material Compatibility
  • Capable of absorbing embossed, real stone paint and other rough surfaces
  • Sheet thickness: 12MM
  • Chint/Delixi electrical components
  • Omron brand travel and photoelectric switches
9. Technical Specifications
  • 380VAC Integrated Board Line
  • UV Coating Machine 1500mm
  • Spray Gun System

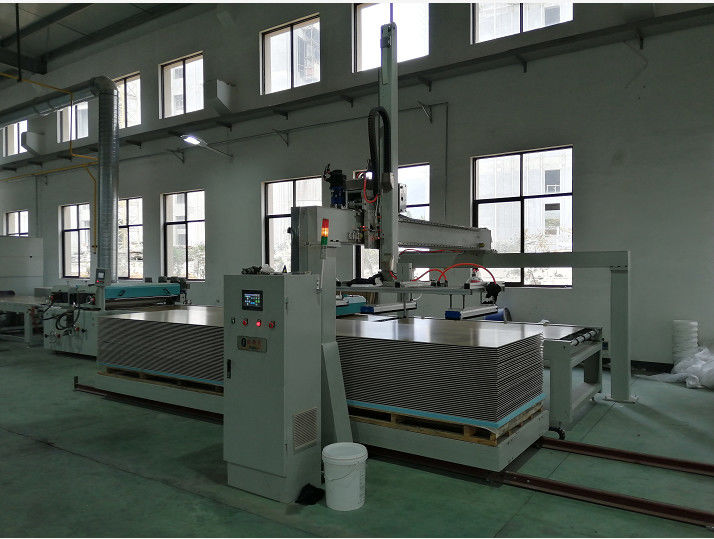

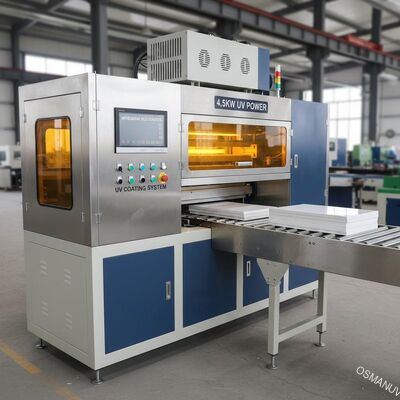

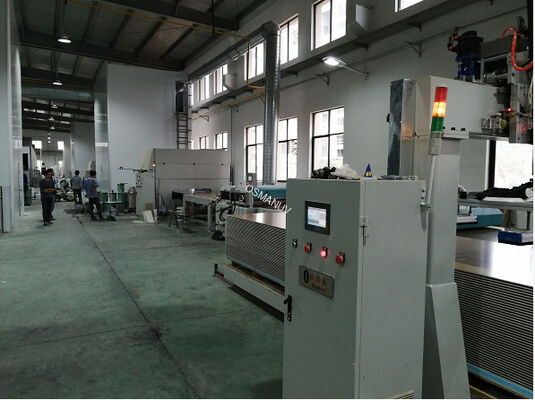

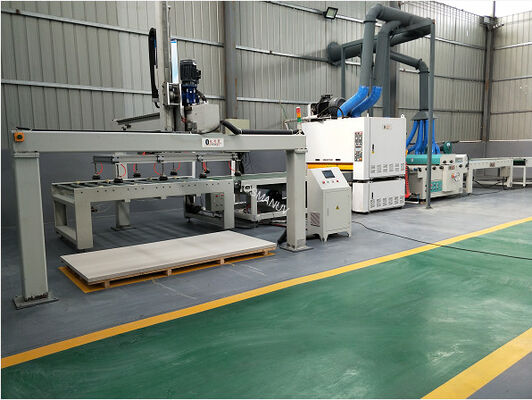

Mitsubishi PLC Control UV Coating Machine for calcium silicate board production Close-up view of UV coating machine components and control system
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: We provide sample testing on our machines with video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Our production follows GMP & ISO standards and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty with lifelong maintenance and technical support.
