30m Fold Dry Line UV Coating Machine With OMRON Electric Eye

30m Fold Dry Line UV Coating Machine With OMRON Electric Eye
30m Fold Dry Line UV Coating Machine With OMRON Electric Eye 1M/Min 30m Fold Dry Line UV Coating Machine With OMRON Electric Eye 1 Product name: 30m folding dry drying way 2 Model: OSM-HF-1320 3 Features: Natural gas heating system Tunnel divided into dehumidification section, pre-curing section, ...
Place of Origin:CHINA
Brand Name:Osmanuv
Certification:ISO9001 And CE
Model Number:OSM-HF-1320
Minimum Order Quantity:1 Set
Price:Negotiable
Product Custom Attributes
Highlight

1M/Min UV Coating Machine

,

30m UV Coating Machine

,

1M/Min coating line machine

Product Name:
Folding Production Line
Mechanical Size::
30000mm Long*4420mm Wide*4550mm High (length Can Be Customized)
Burner:
Original Riello Burner; 2 Sets
Features::
It Is Heated By Natural Gas, And The Tunnel Is Divided Into Dehumidification Section, Pre-solidification Section, Solidification Section And Cooling Section. To The Effect Of These Four Stages, The Highest Temperature Can Reach 80 Degrees, Heating To 70 De
Conveying Speed (linear Speed)::
0.1-1M/min.
Humidity:
50±10℃
Product Description
30m Fold Dry Line UV Coating Machine With OMRON Electric Eye
1M/Min 30m Fold Dry Line UV Coating Machine With OMRON Electric Eye
1 Product name: 30m folding dry drying way
2 Model: OSM-HF-1320
3 Features:
  • Natural gas heating system
  • Tunnel divided into dehumidification section, pre-curing section, curing section and cooling section
  • Axial flow fan circulation for optimal four-stage processing
  • Maximum temperature: 80°C
  • Heating performance: 20 minutes to 70°C in winter, 15 minutes to 70°C in summer
  • Adjustable temperature with automatic control
  • Built-in fan for stirred uniform heating
  • Downward and upward air supply system
  • Even heating across each plate with minimal temperature error
4 Mechanical size: 30000mm long × 4420mm wide × 4550mm high (length can be customized)
5 Maximum capacity: 1220×2440×20mm plate

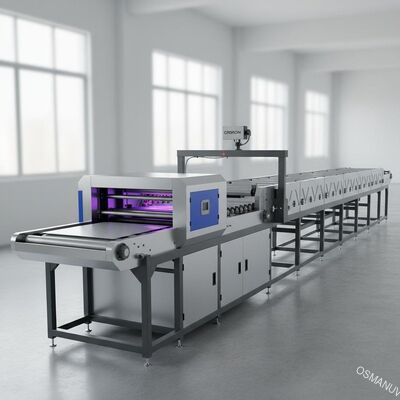

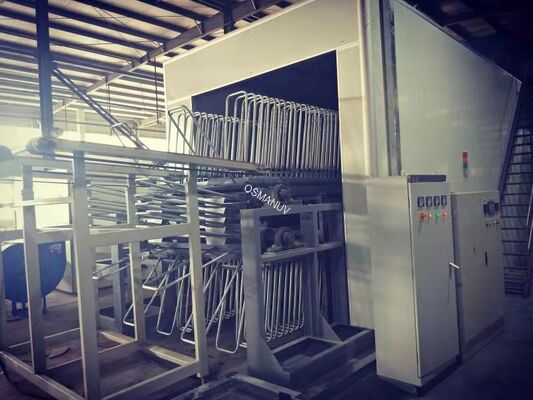

30m Fold Dry Line UV Coating Machine - Front View 30m Fold Dry Line UV Coating Machine - Operational View
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: We provide sample testing on our machines with video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Our production follows GMP & ISO standards, and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty with lifelong maintenance and technical support.
