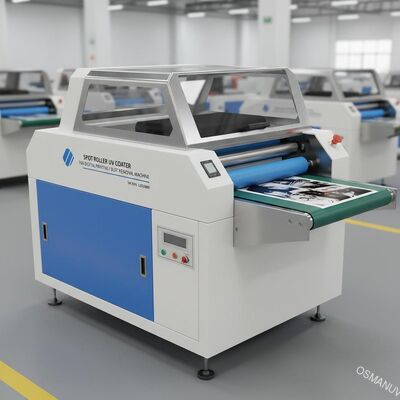

Spot Roller Uv Coater For Digital Printing / Dust Removal Machine 5m/Min L650mm

Spot Roller Uv Coater For Digital Printing / Dust Removal Machine 5m/Min L650mm

Product Details:

Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: OSM-FC-620#

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 30 work days
Payment Terms: T/T, Western Union
Get Best Price Contact Now

Detail Information

Voltage: 380V Color: Grass Green + Computer White
Power: 4.2kw Warranty: One Year
Weight: 1150kg Dimension(l*w*h): 2200mm Long × 1350mm Wide × 1300mm High.
High Light:

5m/Min uv coater for digital printing

,

L650mm uv coater for digital printing

,

5m/Min dust removal machine

Product Description

5m/Min L650mm Spot Roller Uv Coater For Digital Printing Grass green



Description:

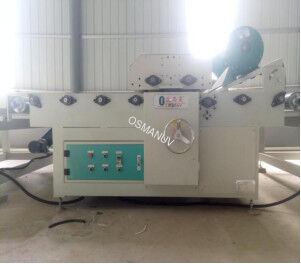

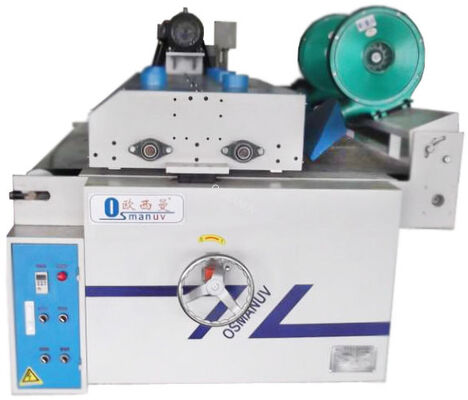

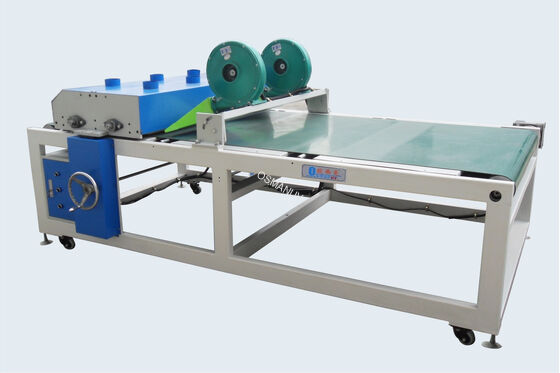

■Dust removal machine

1 Product name: Dust removal machine.
2 Model: OSM-FC-620 type.
3 Features: It can effectively and automatically remove the dust left by the plate due to sanding, which greatly improves the coating quality of the product.
4 Mechanical dimensions 2200mm long × 1350mm wide × 1300mm high. (According to the actual size).
5 Effective working size a, effective width: 620mm; b, thickness: 3-80mm; c, length (shortest): 300mm.
6 Pressure roller Diameter: ¢60mm, length 650mm.
7 Medium pressure fan power 0.55kw×2 units.
8 Material: The shell is made of cold-rolled steel plate, the thickness is 1.5mm, and the surface is treated with electrostatic powder paint.

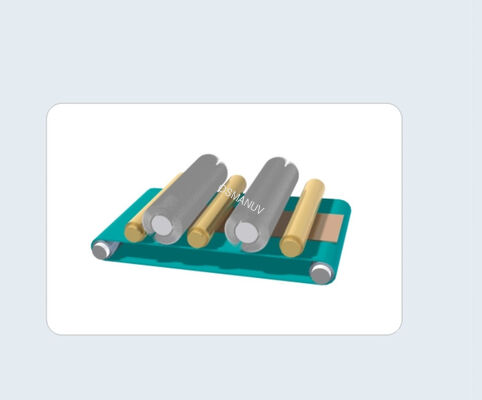

9 Dust removal device: The brush roller is made of high-quality sisal fiber, diameter: ¢150mm, length: 1350mm. It is also equipped with a powerful blower, which has a good dust removal effect. The thickness and length of sisal can be customized according to customer requirements. The transmission adopts V-belt transmission, which effectively reduces the vibration during its operation and makes the machine run more smoothly. The bearing adopts KHV bearing, Taiwan Delta frequency converter controls the speed of the glue roller, and the pressure roller adopts 45# seamless steel pipe after CO² welding, the surface is coated with glue, and the jitter is less than 0.005mm. The lifting seat adopts cast iron dovetail groove type, so that the rigidity and precision between the coating head and the frame are guaranteed, and there is no deformation.
10 Conveyor belt: The Dutch green PVC flat belt is adopted, which has stable conveying and long service life.
11 Working height 0-80mm (adjustable according to product height)
12 Transmission system Driven by 1.5KW Siemens motor and Wanxin reducer.
12 Transmission and control speed: The speed is adjustable 5-20m/min, and the panel control is equipped with an LED speed display.
14 Exhaust system forced air cooling, good heat dissipation effect.
15 Electrical part: use CHNT contactor, Siemens motor and Wanxin reducer, Delta frequency converter, switch is produced by Japan Izumi company, all comply with CE standards.
16 Safety devices:

leakage circuit breakers, over-temperature prevention, transformer motor overload protection, control circuit fuses... all comply with international safety standards.


17 Conveying direction: from left to right.
18 Working height: 850-900mm adjustable, (the height of the ground from the conveyor belt).





Spot Roller Uv Coater For Digital Printing / Dust Removal Machine 5m/Min L650mm 0Spot Roller Uv Coater For Digital Printing / Dust Removal Machine 5m/Min L650mm 1



FAQ


Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
