Grass green /computer white Coil coating line

Grass green /computer white Coil coating line
Grass green /computer white Coil coating line
Grass green /computer white Coil coating line Grass green /computer white Coil coating line Grass green /computer white Coil coating line Grass green /computer white Coil coating line Grass green /computer white Coil coating line Grass green /computer white Coil coating line

Large Image :  Grass green /computer white Coil coating line

Product Details:
Place of Origin: CHINA
Brand Name: Osmanuv
Certification: ISO9001 And CE
Model Number: OSM-TU-1650T
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: 35-45 Working days
Payment Terms: T/T,Western Union
Supply Ability: According to customer's demand
Contact Now

Grass green /computer white Coil coating line

Description
Product Name: Coil Coating Line Color: Computer White / Green
Voltage: 380V/50HZ Weight: 8 T
After-sales Service Provided: Field Installation Warranty: 1 Year
Place Of Origin: Dongguan, Guangdong Minimum Order Quantity: 1 Set
Highlight:

grass green coil coating line

,

computer white UV coating machine

,

coil coating line with warranty

Grass Green / Computer White Coil Coating Line
Product Overview
The Grass Green / Computer White Coil Coating Line addresses various common challenges in coil processing. Before applying the anti-corrosion layer, the coil undergoes fine purification, effectively replacing environmentally polluting wet chemical cleaning processes. This complete automated assembly line integrates surface treatment, coating equipment, cooling, and drying technologies to deliver production speeds nearly four times faster than traditional segmented processing methods. Our company provides comprehensive equipment engineering services, including coil conveying systems and application research and development.
Technical Specifications
Parameter Specification
Model OSM-RY-1320F
Dimensions 3000mm × 1930mm × 1680mm (L×W×H)
Drive Roller φ400 steel roller with hard coating surface, Length: 1500mm, Quantity: 4
Transmission Bearing Swedish SKF bearing transmission
Motor 4 Taiwan Shengbang motors, 2.2kW each
Electrical Components Contactor: Schneider, Switch Indicator: Izumi (Japan)
Power Supply 380V 50Hz three-phase five-wire system
Frame Material 100mm × 50mm channel steel welding, plastic spray surface
Rotary Joint Feiyang brand rotary joint
Heat Conduction Oil Pipe 1-inch high-pressure heat conduction oil pipe with steel wire sheath
Burner 300,000 kcal biomass particle burner with dual heat conduction oil pipe heating
Working Height 1260mm ± 50mm from ground level
Conveying Direction Right to left
Inverter 4 sets of 2.2kW Delta inverters for roller conveying speed control
Product Visualization

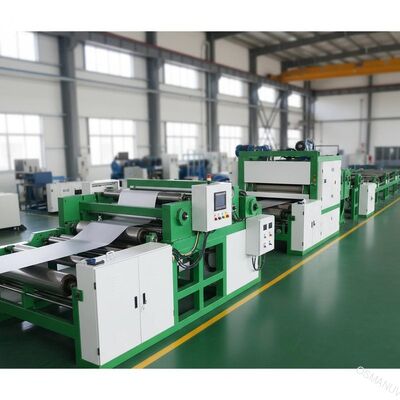

Grass Green Computer White Coil Coating Line Equipment
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
How can I verify your machine quality?
We conduct sample trials on our machines and provide video documentation. Factory visits are welcome. Our products are widely used in China, Southeast Asia, South America, and Europe.
What certifications do you have?
Our production complies with GMP & ISO standards, and our products have CE certification for export.
What is your Quality Warranty?
One-year warranty with lifelong maintenance and technical support.
