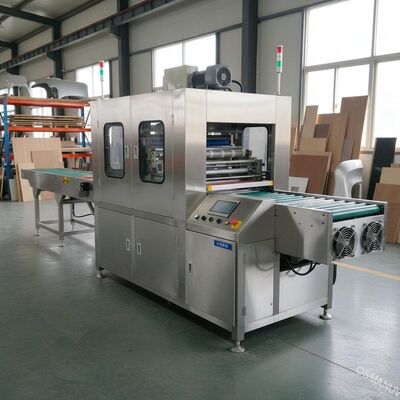

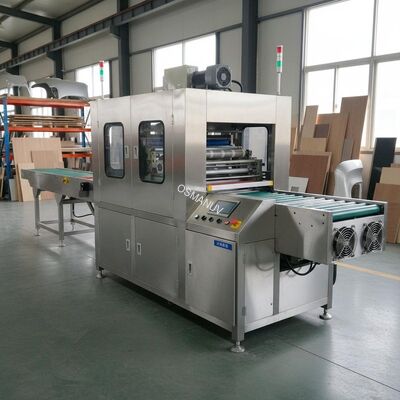

UV Coating Machine UV varnish coating machine Suppliers for Wall or Boad or Auto industry

Large Image : UV Coating Machine UV varnish coating machine Suppliers for Wall or Boad or Auto industry

Product Details:

Place of Origin:	CHINA
Brand Name:	Osmanuv
Certification:	ISO9001 And CE
Model Number:	OSM-GT-2000-Ⅳ ONE

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Box
Delivery Time:	35-45 Working days
Payment Terms:	T/T,Western Union
Supply Ability:	According to customer's demand

Contact Now

UV Coating Machine UV varnish coating machine Suppliers for Wall or Boad or Auto industry

Description

Product Name:	UV Hemming Machine	Total Power Of Equipment:	55KW
Effective Working Size: The Thickest:	80mm	Mechanical Size:	9000mm×1500mm Wide×1720mm High. (According To Actual Size)
Coating Speed:	3-18m/min	Conveyor System:	Tank With Rubber Module And Pressure Wheel
Highlight:	18m/Min UV Coating Machine , 55KW UV Coating Machine , 18m/Min spot uv coating machine

UV Coating Machine for Wall, Board, and Auto Industry Applications

18m/Min 55KW Spot UV Coating Machine With 2 Delta Inverters

Coating equipment is designed with solvent-resistant components for durability
Flame-retardant and explosion-proof treatment for safe operation with flammable coatings
High-precision engineering for fine coating process requirements

Technical Specifications

Model	OSM-GT-2000IV
Application	Suitable for side coating of various woodware, plastics, metals, etc. Produces smooth, full surfaces with no color difference.
Mechanical Dimensions	2000mm x 3200mm wide x 1520mm high (customizable to actual requirements)
Effective Working Size	Effective width: 2000mm Thickness: 3-180mm Minimum length: 500mm
Coating Speed	3-18 m/min
Function	Paint roller coating processing on the side of the board (flattened)
Control System	Each group equipped with 2 Delta inverters, independent frequency conversion control, and stepless speed regulation
Coating Roller	High-quality Japanese silica gel, diameter: ￠80mm, length: 120mm
Metering Roller	Hard chrome plating with polished surface, diameter: ￠80mm, length: 120mm
Additional Features	Each coating head equipped with heating barrel and diaphragm pump

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.

How can I verify your machine quality?

We provide sample testing on our machines with video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.

What certifications do you have?

Our production follows GMP & ISO standards, and our products have passed CE certification for export.

What is your Quality Warranty?

One year warranty with lifelong maintenance and technical support.
