UV Coating Machine UV Printing Machine Company For Floor or Wooden furniture or Handicrafts or Wallboard coating

UV Coating Machine UV Printing Machine Company For Floor or Wooden furniture or Handicrafts or Wallboard coating
UV Coating Machine UV Printing Machine Company For Floor or Wooden furniture or Handicrafts or Wallboard coating
UV Coating Machine UV Printing Machine Company For Floor or Wooden furniture or Handicrafts or Wallboard coating UV Coating Machine UV Printing Machine Company For Floor or Wooden furniture or Handicrafts or Wallboard coating UV Coating Machine UV Printing Machine Company For Floor or Wooden furniture or Handicrafts or Wallboard coating UV Coating Machine UV Printing Machine Company For Floor or Wooden furniture or Handicrafts or Wallboard coating UV Coating Machine UV Printing Machine Company For Floor or Wooden furniture or Handicrafts or Wallboard coating UV Coating Machine UV Printing Machine Company For Floor or Wooden furniture or Handicrafts or Wallboard coating UV Coating Machine UV Printing Machine Company For Floor or Wooden furniture or Handicrafts or Wallboard coating

Large Image :  UV Coating Machine UV Printing Machine Company For Floor or Wooden furniture or Handicrafts or Wallboard coating

Product Details:
Place of Origin: CHINA
Brand Name: Osmanuv
Certification: ISO9001 And CE
Model Number: OSM-BQ-1320
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: 35-45 Working days
Payment Terms: T/T,Western Union
Supply Ability: According to customer's demand
Contact Now

UV Coating Machine UV Printing Machine Company For Floor or Wooden furniture or Handicrafts or Wallboard coating

Description
Voltage: 380V/50HZ Weight: 1350kg
Type: Coating Machine/Coating Production Line, Application: Machinery & Hardware
Warranty: 1 Year Coating Speed: 0-5 Meters/min
Highlight:

1.5KW spot uv printing machine

,

spot uv printing machine 15m/Min

,

1.5KW Uv Curing Machine

UV Coating Machine for Floor, Wooden Furniture, Handicrafts & Wallboard
1.5KW 15m/Min Varnish Spot UV Printing Coating Machine

Science and technology continue to advance, bringing new technologies, materials, and processes to the manufacturing industry. The development of electronic technology, numerical control technology, laser technology, microwave technology, and high-voltage electrostatic technology has enabled automation, flexibility, intelligence, and integration in coating equipment, resulting in increased machine variety and continuous technical improvement.

Technical Specifications
Specification Details
Product Name Back Paint Machine
Model OSM-BQ-1320 Type
Features Suitable for wood, plastic, metal and other flat coatings. Produces smooth, full surfaces with no color difference.
Mechanical Dimensions 1000mm long × 2300mm wide × 1520mm high (customizable to actual requirements)
Effective Working Size
  • Effective Width: 1320mm
  • Thickness: 3-80mm
  • Minimum Length: 300mm
Material Construction 1.5mm steel plate shell with liquid paint surface treatment; 20cm A3 steel plate supporting walls

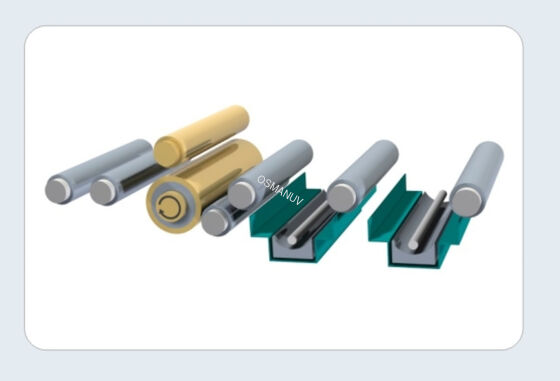

Coating System Single-group roll coating with steel rollers and silicone wheels; individually adjustable lifting system
Coating Roller Diameter: ￠205mm, Length: 1420mm; high-quality Japanese silicone construction with customizable hardness (40-50 degrees); NSK bearings with Delta frequency converter speed control
Measuring Wheel Diameter: ￠130mm, Length: 1420mm; 45# seamless steel pipe with CO² welding; hard chrome electroplated surface with runout less than 0.05mm
Conveying Roller Power: 1.5KW; Diameter: ￠130mm, Length: 1320mm; 45# seamless steel pipe construction; hard chrome electroplated surface
Conveyor System Roller drive system for stable conveying and long service life
Conveying Speed 1-15m/min
Working Height 850-900mm (belt height from ground) with position indicator
Control System 3 sets of Delta frequency converters for independent roller adjustment
Electrical Components Delta inverters, CHNT contactors, Japanese Izumi switches and other international safety standard components
Safety Features Leakage circuit breaker, motor overload protection, emergency switch, control circuit fuses meeting international safety standards

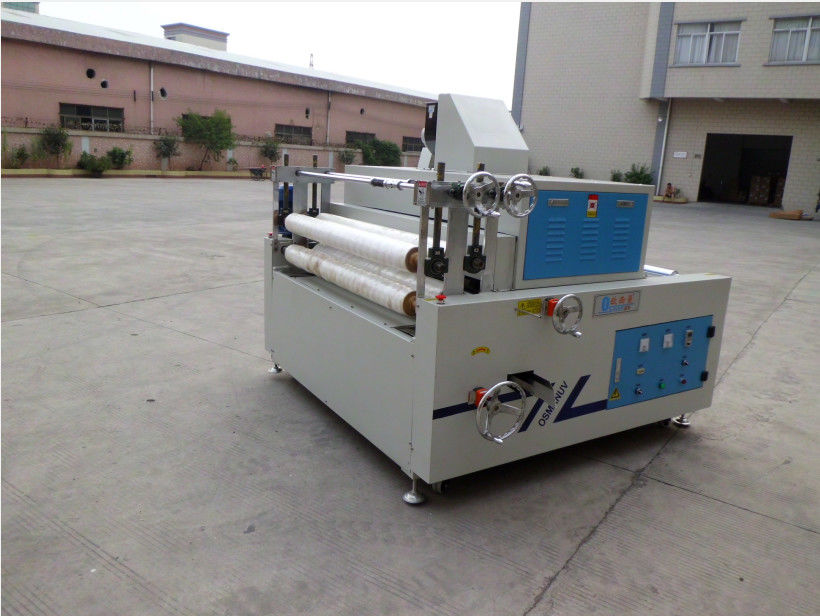

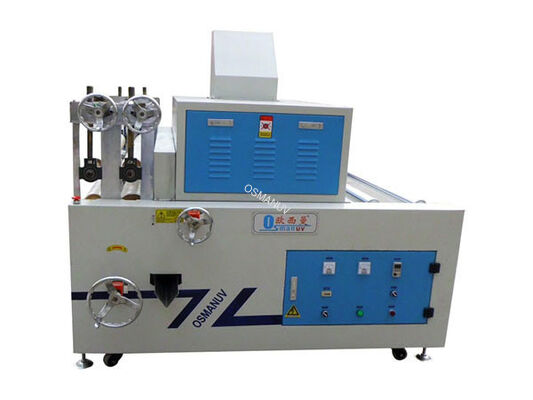

UV Coating Machine front view showing control panel and coating system

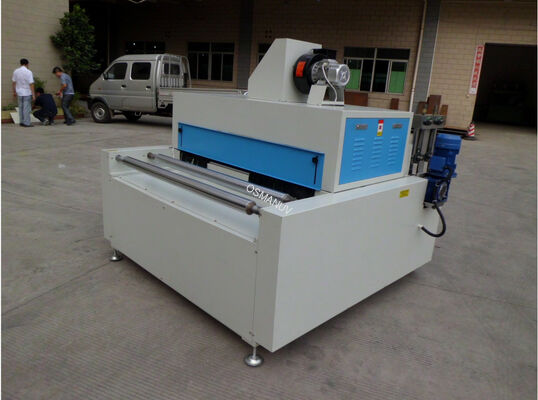

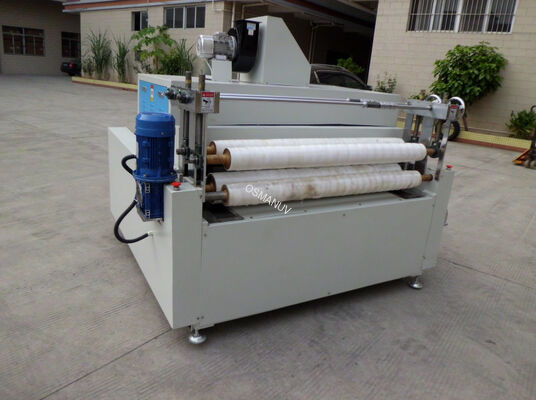

UV Coating Machine side view displaying conveyor system and roller mechanisms
Frequently Asked Questions
Are you a trading company or manufacturer?

We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.

How can I verify your machine quality?

We provide sample testing on our machines with video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.

What certifications do you have?

Our production follows GMP & ISO standards, and our products have passed CE certification for export.

What is your Quality Warranty?

One year warranty with lifelong maintenance and technical support.
