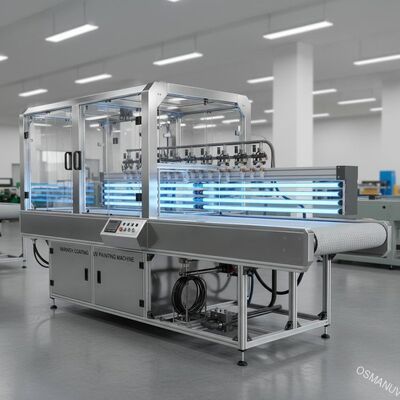

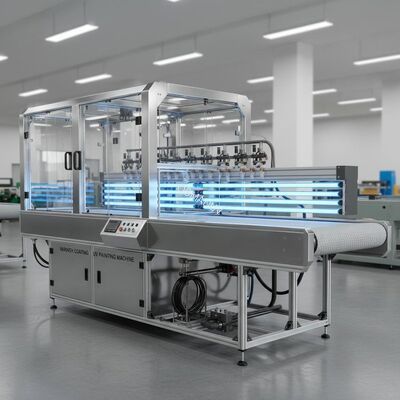

Varnish Coating Uv Painting Machine 2.5m PVC Conveyor

Varnish Coating Uv Painting Machine 2.5m PVC Conveyor

Product Details:

Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: OSM

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 45-50 work days
Payment Terms: T/T, Western Union
Get Best Price Contact Now

Detail Information

Voltage: 380V/50HZ Packaging Material: Wood,Plastic,Metal,Paper,Glass
Warranty: 1 Year Power: 65.3kw
Coating Speed: 0-5meters/min Color: You Can Decide
Type: Coating Production Line Driven Type: Mechanical
High Light:

5meters/Min uv painting machine


PVC uv painting machine


5meters/Min varnish coating machine

Product Description


5meters/Min Varnish Coating Uv Painting Machine 2.5m PVC Conveyor

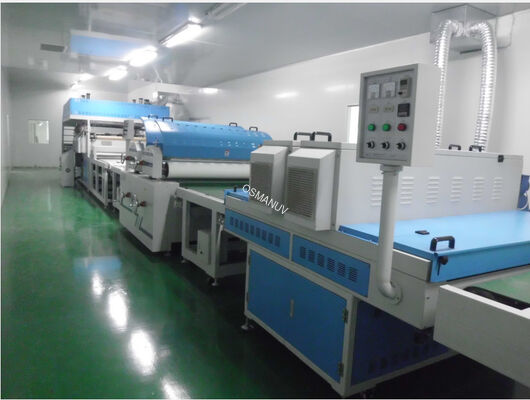

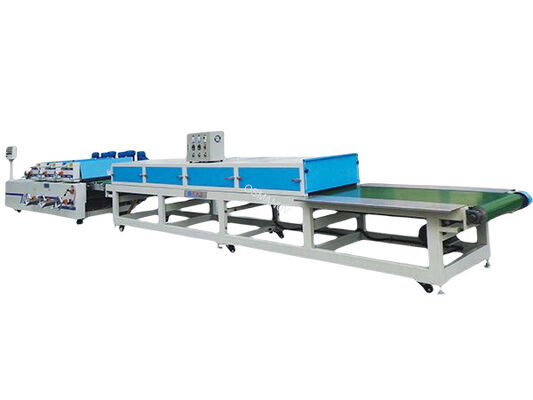

Roll coating drying production line
Characteristic parameters
■2.5m PVC conveyor
 1 Product name PVC conveyor.
 2 Model OSM-PV-1320 type
 3 Features Suitable for all kinds of panel furniture, calcium silicate board, solid wood composite floor, flat board crafts, bamboo and wood curtains, etc.
Workpiece transportation for water operations.
 4 Mechanical dimensions: 2500mm long × 1620mm wide × 850mm high. (Can be customized according to actual needs)
 5 Power supply voltage 220V, 50HZ.
 6 Material It is made by bending and welding 1.5mm cold-rolled plate, the surface is painted, and equipped with adjusting foot cup, which is strong and durable.
 7 Conveyor belt: adopt green 3.0mm PVC belt to convey, width: 1320mm, long service life, stable conveying
 8 Transmission system The bearing adopts KHV bearing, Beiji reducer, Taiwan Delta inverter control, the speed can be adjusted 5-20 m/min, and the speed can be adjusted steplessly.
 9 Electrical part

use OMRON relay, CHNT contactor, Beiji reducer, Taiwan Delta frequency converter, delay time adopts CKC brand, switch adopts Japanese Izumi company production, all comply with national electrical standards.

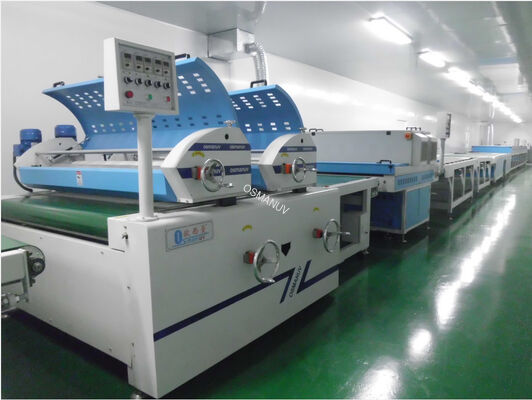

■Full precision double roll coating machine
 1  Product name:  Full-precision two-roll coating machine. (Double straight roller)
 2 Model: OSM-GT-1320Ⅱ.
 3  Features:  Suitable for all kinds of wood, plastic, metal and other flat coatings. The surface of the paint processed by this machine is smooth, full and no color difference.
 4 Mechanical dimensions 1800mm long × 2300mm wide × 1520mm high. (According to actual size)
 5 Effective working size:  a, effective width: 1320mm; b, thickness: 3-80mmc, length (shortest): 300mm.
 6  Material: The shell is made of 1.5mm steel plate by bending and welding, the surface is treated with liquid paint, and the supporting wall is made of 20cm steel plate (A3 material).
 7 Coating part Double-group roll coating system is adopted. Each group system consists of steel roller and silicone wheel. Each group of roll coating system can be lifted and lowered independently.
 8 Coating roller: Diameter: ¢250mm, length: 1070mm, made of high-quality Japanese silica gel, wear-resistant, good elasticity, hardness can be customized according to customer requirements (30-50 degrees), can withstand various solvents and use high-quality Coupling transmission, bearing adopts NSK bearing, Taiwan Delta frequency converter controls the speed of the rubber roller.
 9  Measuring wheel: Diameter: ¢150 mm, length: 1420mm, using 45# seamless steel pipe welded by CO², the surface is finely ground and dynamically balanced, the runout is less than 0.05mm, and the surface is electroplated and polished to achieve a bright effect. The direct plug-in connection transmission can truly be integrated with the drive motor.
 10 Conveying roller: power: 1.5KW, diameter: ¢130 mm, length: 1320mm. The 45# seamless steel pipe is welded by CO², the surface is finely ground, and the dynamic balance is performed. The runout is less than 0.05mm. The surface is hard chrome electroplated and polished to achieve a bright effect. The direct plug-in connection transmission can truly be integrated with the drive motor.
 11  Conveyor belt Green PVC flat conveyor belt is adopted, which has stable conveying and long service life.
 12  Conveying speed 1-15m/min.
 13 Working height 850mm (the height of the belt from the ground), the height of the roller is equipped with a position indicator.
 14 Control system: 5 sets of Siemens motors and 5 sets of Delta frequency converters are adopted, and each roller can be adjusted independently.
 15  Electrical appliances use Taiwanese Delta frequency converters, Schneider contactors, Japanese Izumi switches and other famous brand electrical appliances that meet international safety standards.
 16 Safety device: This machine has leakage circuit breaker, motor overload protection, abnormal emergency switch, control circuit fuse, etc. in line with international safety standards.
 17 Conveying direction from left to right

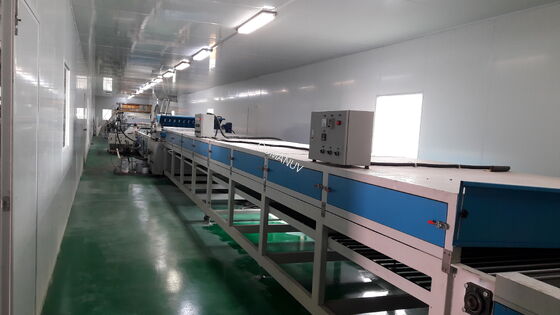

■10m heating leveling machine
 1 Product name: 10m heating leveling machine.
 2 Model: OSM-IR-1320
 3 Specifications 10000mm long × 1650mm wide × 1400mm high
 4 Material The outer shell of the heating zone is made of A3 board, and insulation cotton is added in the middle for heat preservation
 5 Lamp adopts Taiwanese quartz heating tube with good heating effect
 6 Effective leveling width 1320mm.
 7 Conveyor belt: adopt chain stainless steel string rod type.
 8 Transmission system: The transmission motor adopts Taiwan TWT gear reducer
 9 Control system adopts Taiwan Delta frequency converter, the speed can be adjusted 5-20 meters per minute, and there is a speed digital display.
 10 Control system use BKC thermostat to control the temperature required for work, temperature: normal temperature -100℃ adjustable.
 11  Electrical part BKC temperature controller, CHNT contactor, Taiwan Delta frequency converter, switch adopts Japanese Izumi switch, etc. All imported electrical appliances that meet international standards.
 12 Safety system

over-temperature preventer, motor overload protection, control circuit insurance, emergency stop switch, etc... All electrical appliances conform to the first-class products of international standards.



Varnish Coating Uv Painting Machine 2.5m PVC Conveyor 0Varnish Coating Uv Painting Machine 2.5m PVC Conveyor 1




Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
