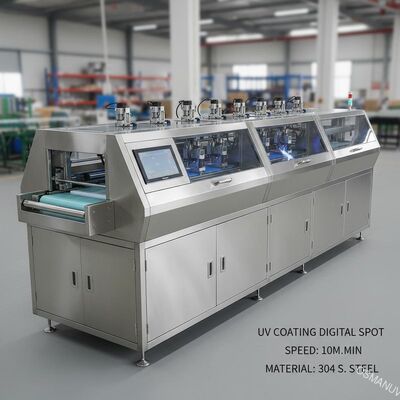

UV Coating Machine Digital Spot 10meters/Min 304 Stainless Steel
Product Details:
| Place of Origin: | China |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 |
| Model Number: | OSM-IR-UV-1320 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 45 work days |
| Payment Terms: | T/T, Western Union |
|
Detail Information |
|||
| Voltage: | 380V/50HZ | Weight: | 2T |
|---|---|---|---|
| Type: | Coating Production Line | Packaging Type: | Wooder Package |
| Coating Speed: | 0-20 Meters/min | Color: | You Can Decide |
| High Light: | 10meters/Min UV Coating Machine,304 UV Coating Machine,10meters/Min digital spot uv coater |
||
Product Description
10meters/Min 304 Stainless Steel UV Coating Machine Digital Spot
Description:

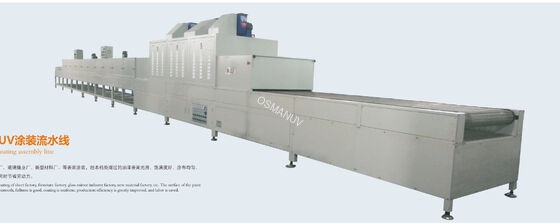

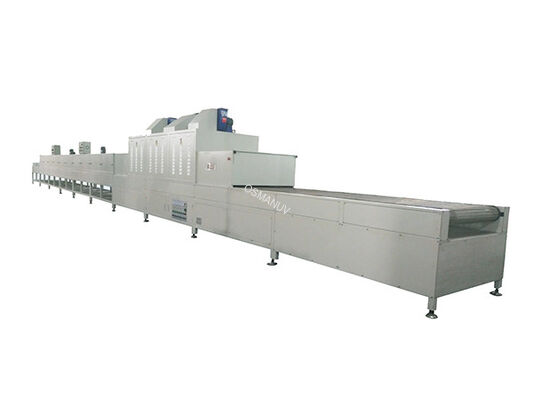

| Infrared+UV Coating Assembly Line |

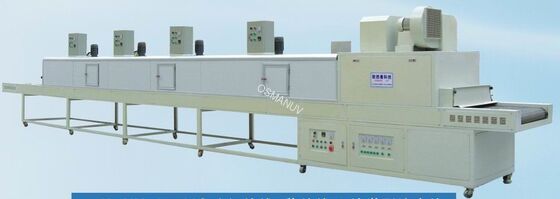

| ■Heating leveling machine |
| 1 | Product name: 10m heating leveling machine. |
| 2 | Model: OSM-IR-650 |
| 3 | Specifications: 10000mm long × 1240mm wide × 1200mm high. |
| 4 | Material: The outer shell of the heating zone is made of A3 board, and insulation cotton is added in the middle for heat preservation. |
| 5 | Lamp: adopts Taiwanese quartz heating tube with good heating effect. |
| 6 | Effective leveling width: 650mm. |
| 7 | Conveyor belt: adopt sus304# stainless steel conveyor belt and string rod type transmission. |
| 8 | Transmission system: The transmission motor adopts Taiwan Wanxin gear reducer. |
| 9 | Control system: adopts Taiwan Delta frequency converter, the speed can be adjusted from 1 to 10 meters per minute, and there is a speed digital display. |
| 10 | Control system: use BKC thermostat to control the temperature required for work, temperature: normal temperature -100℃ adjustable. |
| 11 | Electrical part: BKC temperature controller, CHNT contactor, Taiwan Delta frequency converter, switch adopts Japanese Izumi switch, etc. All imported electrical appliances that meet international standards. |
| 12 | Safety system: over-temperature preventer, motor overload protection, control circuit insurance, emergency stop switch, etc... All electrical appliances comply with international standards. |
| ■PVC conveyor |
| 1 | Product name: PVC conveyor. |
| 2 | Model: OSM-PV-650 type. |
| 3 | Features: Suitable for all kinds of panel furniture, calcium silicate board, solid wood composite floor, flat board crafts, bamboo and wood curtains, etc.Workpiece transportation for water operations. |
| 4 | Front and rear conveyor: 2500mm long × 1240mm wide × 850mm high, effective width 650mm. (Can be customized according to actual needs). |
| 5 | Power supply voltage: 220V, 50HZ, three-phase five-wire system. |
| 6 | Power: total power 0.37KW |
| 7 | Material: It is made by bending and welding 1.5mm cold-rolled plate, the surface is painted, and equipped with adjusting foot cup, which is strong and durable. |
| 8 | Conveyor belt: adopts sus304# stainless steel conveyor belt and string rod transmission, width: 650mm, long service life, stable conveying. Transmission system: The bearing adopts NSK bearing, Beiji reducer, Taiwan Delta inverter control, the speed can be adjusted 1-10 m/min, and the speed is stepless. |
| 9 | Electrical part: use OMRON relay, CHNT contactor, Beiji reducer, Taiwan Delta frequency converter, delay time adopts CKC brand, switch adopts Japanese Izumi company production, all comply with national electrical standards. |
| ■Six lamp curing machine |
| 1 | Model: OSM-UV-650Ⅲ. |
| 2 | Features: This machine can cure UV coatings in a short time through UV energy, which is highly efficient, energy-saving and environmentally friendly. Mechanization can greatly improve production efficiency, and is not affected by its external conditions to product quality problems. It is widely used for drying and curing all kinds of woodware, aluminum plates, acrylic plates, calcium silicate plates, PVC plates, hardware accessories and other surfaces. |
| 3 | Mechanical size: 3000 length×1080mm width×1920mm height. (According to actual size) |
| 4 | Effective processing size: effective width: 650mm, thickness: 2-250mm, length (shortest): 500mm. |
| 5 | Power supply voltage: 380V 50HZ, three-phase four-wire system. |
| 6 | Material: The outer shell is made of cold-rolled plate with a thickness of 1.5mm. The surface is treated with liquid paint, which is wear-resistant and corrosion-resistant. The UV section is insulated with double-layer steel plates, which can effectively reduce the cooling effect. |
| 7 | Lamp tube: using British PRIMARC 5.6KW length: 2 560mm mercury lamps, 8kw length; 4 800mm mercury lamps. The height and angle of the lamp tube in the UV furnace can be adjusted, which is suitable for ultraviolet light curing of various products. |
| 8 | Reflector: It is made of aluminum and is integrally formed with imported alauod reflective lenses inside, which can increase the UV reflection efficiency by 38%. |
| 9 | Transmission system: stainless steel mesh belt conveyor, width: 650mm, with high temperature resistance, UV resistance and other characteristics. Make the machine run more smoothly. It is controlled by Beiji reducer and Delta frequency converter, and the speed can be adjusted from 1 to 10 meters per minute. |
| 10 | Heat dissipation system: forced air cooling, the chassis is an integrated design, sufficient heat dissipation and good effect. |
| 11 |
Light source control system: a. Each group of lamps can be controlled independently, and is equipped with strong and weak light, the second level of light intensity is 70%, 100% dimmable. b. The lamp is equipped with an LCD usage time recorder, which records the service life of the lamp and can be reset to zero. |
| 12 | Electrical part: OMRON relay, Wanxin gear reducer motor, Delta frequency converter, CHNT contactor, CKC brand for time delay, and Japanese Izumi company production for switches, all complying with CE standards. |
| 13 | Safety devices: leakage circuit breakers, over-temperature protection, transformer motor overload protection, control circuit fuses... all comply with international safety standards. |
| 14 | Conveying method: from left to right. |
| 15 | Working height: 850-900mm adjustable, (the height of the ground from the conveyor belt) |
FAQ
Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
