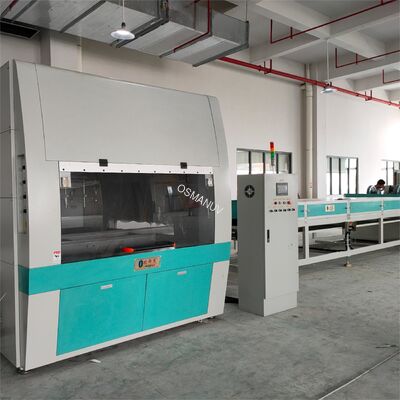

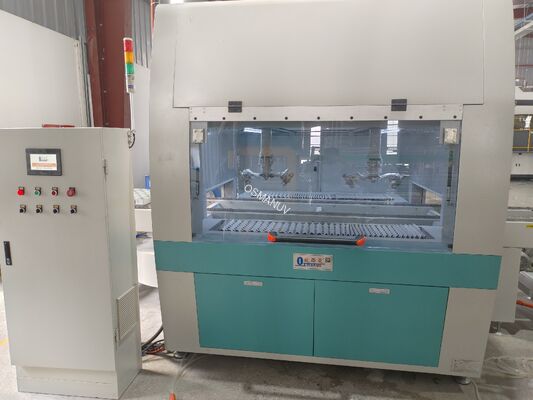

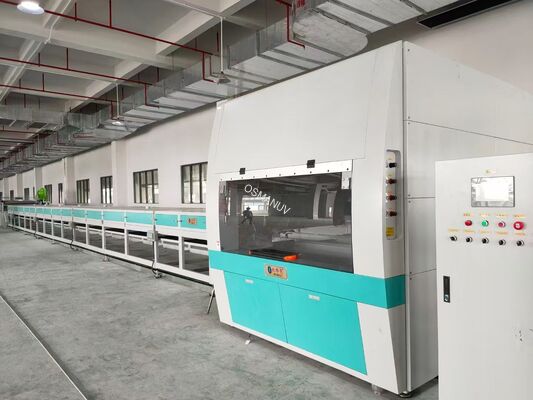

Automatic Reciprocating Spray Coating Machine with Customizable Spray Guns for Uniform Barrier Coating

This advanced automatic reciprocating spray coating machine is specifically engineered for the pulp molding industry. It utilizes high-precision reciprocating spray guns to apply uniform functional coatings—waterproof, oil-proof, and biodegradable barrier coatings—onto molded pulp products such as tableware, food containers, and industrial packaging. The system combines automatic loading, precision reciprocating spray coating, and integrated drying in a single continuous production flow.

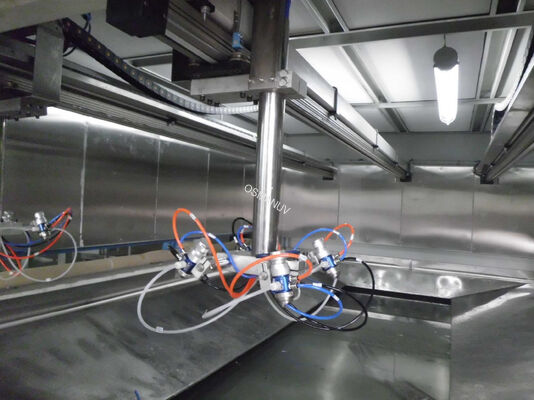

• Precision Reciprocating Spray Coating: High-precision spray guns mounted on a reciprocating mechanism move back and forth across the product surface, ensuring uniform coating coverage on complex 3D geometries, including corners, sidewalls, and curved surfaces. The system achieves coating thickness uniformity of ±5%.
• High Transfer Efficiency: Advanced spray gun technology with optimized atomization achieves transfer efficiency of up to 85%, significantly reducing coating material consumption.

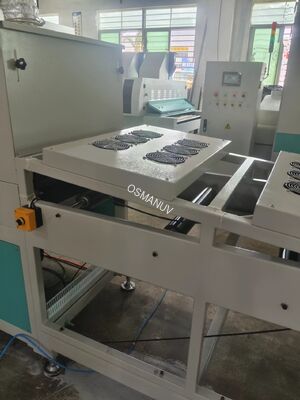

• Integrated Drying: The production line includes an integrated IR or UV-LED drying tunnel, enabling immediate curing and downstream handling without additional transfer steps.
• Clean & Eco-Friendly: An enclosed spray booth with exhaust and filtration system captures overspray and solvent vapors, ensuring a clean working environment.

• Molded Pulp Tableware: Spray coating waterproof and oil-proof barriers on plates, bowls, trays, clamshell boxes, and cup carriers — uniform coverage on complex 3D geometries.
• Industrial Pulp Packaging: Spray coating protective and anti-static coatings on egg trays, fruit trays, electronic cushioning pads, and industrial corner protectors.
• Agricultural Products: Spray coating biodegradable barrier coatings on seedling pots, horticultural trays, and planting containers.
• Premium Molded Products: Spray coating aesthetic and functional coatings on medical device trays, cosmetic packaging inserts, and custom-shaped containers.
• High-Volume Production Lines: Continuous reciprocating spray coating for large-scale manufacturing where production flexibility and coating quality are critical.

This automatic reciprocating spray coating machine is highly customizable across multiple dimensions to fit your specific production requirements:

• Spray Gun Configuration: Customizable number of spray guns (2 – 12 units), gun type (air spray / airless / HVLP), and spray patterns.
• Reciprocating Mechanism: Customizable stroke length (600mm – 1,600mm) and reciprocating speed (up to 60 cycles/min) to match your product dimensions.
• Coating Width & Thickness: Customizable coating width (600mm – 1,320mm) and coating thickness (5 – 50 μm) for different product sizes and barrier requirements.
• Drying System: Customizable drying method (IR / UV-LED / Hot Air) and temperature profiles to match your coating chemistry.
• Conveyor Speed & Configuration: Customizable speed profiles (1 – 20 m/min) and conveyor layout for different production requirements.
• Material Handling: Customizable infeed and outfeed configurations, including robotic loading/unloading integration.
• Control System Integration: Customizable communication protocols (Modbus, Profibus, Ethernet/IP) to sync with your master PLC or MES system.
• Enclosure & Exhaust: Customizable booth dimensions and exhaust capacity to match your factory layout and environmental requirements.

• Precision Reciprocating Spray Coating: Reciprocating spray guns with adjustable stroke and speed ensure uniform coverage — achieves ±5% thickness uniformity.
• High Transfer Efficiency: Advanced atomization technology achieves up to 85% transfer efficiency — significantly reduces coating consumption.
• Integrated Drying: Inline IR / UV-LED / Hot Air drying tunnel enables immediate curing and downstream handling — eliminates additional transfer steps.
• Clean & Eco-Friendly: Enclosed spray booth with exhaust and filtration system captures overspray and solvent vapors — ensures a clean working environment.
• Flexible Automation: Customizable spray gun configuration and reciprocating stroke — matches your production requirements.
• Precision Control: Real-time coating thickness monitoring and feedback control ensure consistent product quality.
• Low Maintenance: Durable spray gun and reciprocating mechanism design with easy-access maintenance points — reduced downtime and maintenance costs.
• Safe Operation: Comprehensive safety interlocks and emergency stop systems — fully compliant with international safety standards.

• Comprehensive pre-installation site assessment and layout planning
• Professional on-site installation, commissioning, and calibration
• Thorough operator training and maintenance instruction
• 12-month standard warranty on the entire system (extendable)
• Lifetime remote technical support and online diagnostics
• Preventive maintenance plans and global spare parts network
• Coating process optimization and technical consultation
• Spray gun and reciprocating mechanism maintenance and repair services

• Spray guns, reciprocating units, and precision components shipped in shock-resistant, moisture-proof foam crates
• Entire system modularized and packed in heavy-duty, weatherproof wooden crates
• Special anti-static packaging for electronic and control components
• All shipments include detailed documentation and can be arranged via air or sea based on your requirements
