High-Throughput Robotic Spray Coating System with Customizable Automation & Multi-Gun Configuration

High-Throughput Robotic Spray Coating System with Customizable Automation & Multi-Gun Configuration
High-Throughput Robotic Spray Coating System with Customizable Automation & Multi-Gun Configuration
High-Throughput Robotic Spray Coating System with Customizable Automation & Multi-Gun Configuration High-Throughput Robotic Spray Coating System with Customizable Automation & Multi-Gun Configuration High-Throughput Robotic Spray Coating System with Customizable Automation & Multi-Gun Configuration High-Throughput Robotic Spray Coating System with Customizable Automation & Multi-Gun Configuration High-Throughput Robotic Spray Coating System with Customizable Automation & Multi-Gun Configuration High-Throughput Robotic Spray Coating System with Customizable Automation & Multi-Gun Configuration

Large Image :  High-Throughput Robotic Spray Coating System with Customizable Automation & Multi-Gun Configuration

Product Details:
Place of Origin: CHINA
Brand Name: OSMANUV
Certification: ISO9001
Model Number: Specification
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wood Packaging
Delivery Time: 30 Working Days
Payment Terms: T/T
Supply Ability: Negotiation
Contact Now

High-Throughput Robotic Spray Coating System with Customizable Automation & Multi-Gun Configuration

Description
Voltage: 220V,380V,380V/220V,220V/380V,380V/50HZ Condition: New
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Overseas Third-party Support Available,Field Installation Dimension(l*w*h): Customized Size
Type: Coating Machine Automatic Grade: Automatic,Semi-Automatic,manual,Other
Driven Type: Electric Packaging Material: Wood,Plastic
Highlight:

High-Throughput Spray Coating Machine

,

Customizable Automation Robotic Spray Coating System

,

Multi-Gun Configuration Automated Coating Line

High-Throughput Robotic Spray Coating System with Customizable Automation & Multi-Gun Configuration
This advanced spray coating production line is specifically engineered for the pulp molding industry, utilizing high-precision spray guns to apply uniform functional coatings—waterproof, oil-proof, and biodegradable barrier coatings—onto molded pulp products such as tableware, food containers, and industrial packaging. The system combines automatic loading, precision spray coating, and integrated drying in a single continuous production flow.
Key Features
  • Precision Spray Coating: High-precision spray guns with adjustable spray patterns ensure uniform coating coverage on complex 3D geometries—achieves ±5% thickness uniformity
  • High Transfer Efficiency: Advanced atomization technology achieves up to 85% transfer efficiency—significantly reduces coating material consumption and waste
  • Integrated Drying: Inline IR/UV-LED/Hot Air drying tunnel enables immediate curing and downstream handling—eliminates additional transfer steps
  • Clean & Eco-Friendly: Enclosed spray booth with exhaust and filtration system captures overspray and solvent vapors—ensures a clean working environment
  • Flexible Automation: Reciprocating or robotic spray gun movement—customizable to match your production requirements
  • Precision Control: Real-time coating thickness monitoring and feedback control ensure consistent product quality
  • Low Maintenance: Durable spray gun design with easy-access maintenance points—reduced downtime and maintenance costs
  • Safe Operation: Comprehensive safety interlocks and emergency stop systems—fully compliant with international safety standards

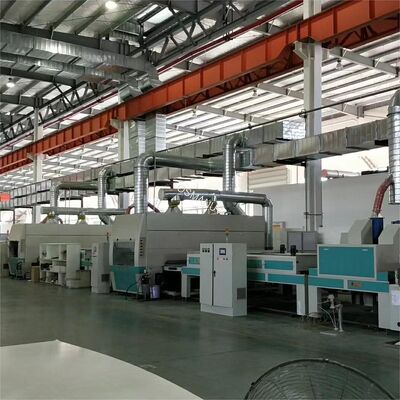

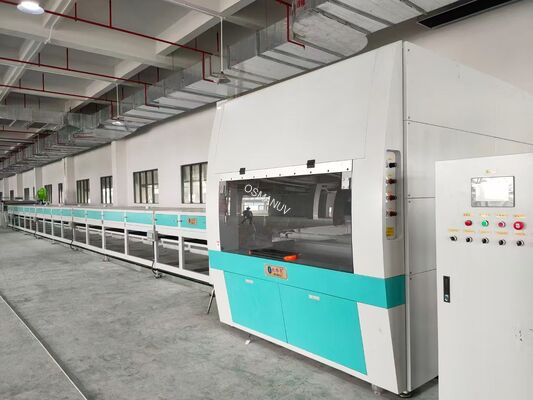

Production Line Composition
Component Description

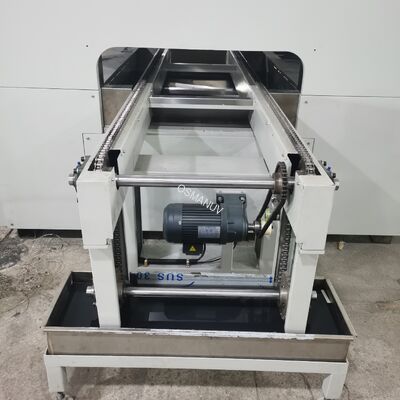

Infeed Conveyor System Automatic feeding with speed control and alignment mechanism

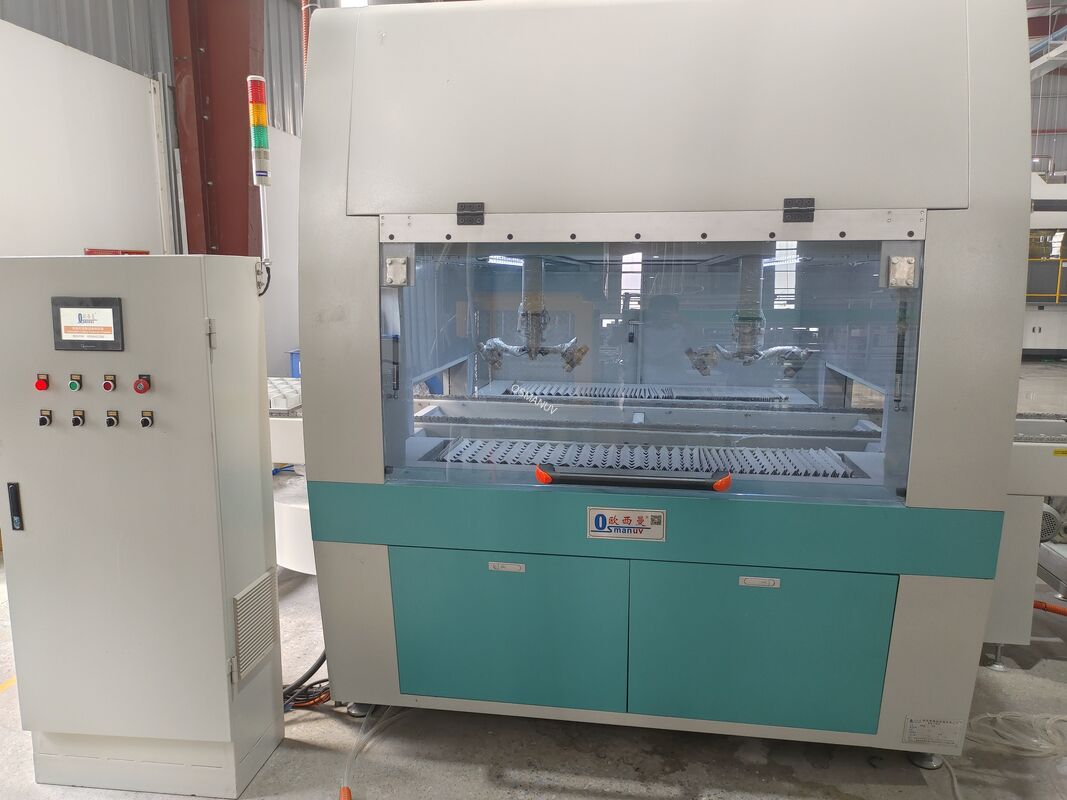

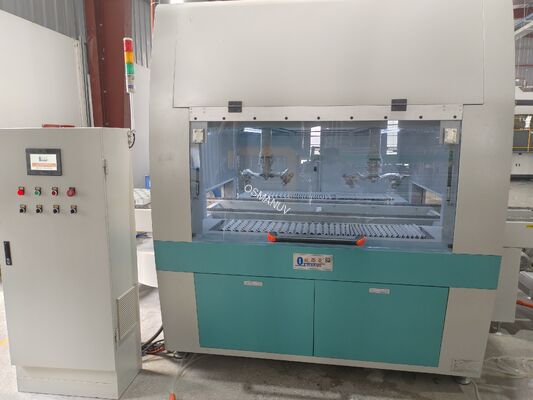

Spray Coating Booth Enclosed chamber with reciprocating or robotic spray guns (customizable)
Spray Gun System High-precision automatic spray guns with adjustable spray patterns
Coating Supply System Precision metering pumps, pressure tanks, and filtration units
Drying Tunnel IR/UV-LED/Hot Air drying system (customizable)
Exhaust & Filtration System Overspray capture and solvent vapor filtration
PLC Control Cabinet Industrial PC with HMI touchscreen, recipe storage, and data logging
Outfeed Conveyor Automatic transfer to next station or stacking unit
Technical Parameters
Parameter Specification Customization Options
Spray Gun Type Automatic air spray / Airless / HVLP Customizable spray gun type
Number of Spray Guns 2 - 12 units Customizable based on coating width
Spray Gun Movement Reciprocating / Robotic arm Customizable motion system
Coating Width 600mm - 1,320mm Customizable width available
Coating Thickness 5 - 50 μm (dry) Customizable coating weight
Coating Uniformity ±5% thickness deviation Customizable process parameters
Transfer Efficiency Up to 85% Depends on coating and gun type
Production Capacity 300 - 2,000 pcs/hour Customizable per production targets
Conveyor Speed 1 - 20 m/min (stepless) Customizable via VFD control
Drying Method IR / UV-LED / Hot Air Customizable drying system
Drying Temperature 40°C - 180°C Customizable temperature profiles
Control System Omron PLC + HMI Integration protocols customizable
Data Logging USB, Ethernet/IP, Modbus Reporting formats customizable
Power Supply 380V / 400V / 460V, 50/60Hz, 3-phase Customizable to regional standards
Exhaust Air Volume 2,000 - 8,000 m³/h Customizable based on booth size
Overall Dimensions 8m - 30m × 1.5m - 2.5m × 1.8m - 2.5m Layout and footprint fully customizable
Safety Standards CE, UL (optional) Customizable to target market
Applications
  • Molded Pulp Tableware: Spray coating waterproof and oil-proof barriers on plates, bowls, trays, clamshell boxes, and cup carriers—uniform coverage on complex 3D geometries
  • Industrial Pulp Packaging: Spray coating protective and anti-static coatings on egg trays, fruit trays, electronic cushioning pads, and industrial corner protectors
  • Agricultural Products: Spray coating biodegradable barrier coatings on seedling pots, horticultural trays, and planting containers
  • Premium Molded Products: Spray coating aesthetic and functional coatings on medical device trays, cosmetic packaging inserts, and custom-shaped containers
  • High-Volume Production Lines: Continuous spray coating for large-scale manufacturing where production flexibility and coating quality are critical
Customization Options
  • Spray Gun Configuration: Customizable number of spray guns (2 - 12 units), gun type (air spray/airless/HVLP), and movement system (reciprocating/robotic)
  • Coating Width & Thickness: Customizable coating width (600mm - 1,320mm) and coating thickness (5 - 50 μm) for different product sizes and barrier requirements
  • Drying System: Customizable drying method (IR/UV-LED/Hot Air) and temperature profiles to match your coating chemistry
  • Conveyor Speed & Configuration: Customizable speed profiles (1 - 20 m/min) and conveyor layout for different production requirements
  • Material Handling: Customizable infeed and outfeed configurations, including robotic loading/unloading integration
  • Control System Integration: Customizable communication protocols (Modbus, Profibus, Ethernet/IP) to sync with your master PLC or MES system
  • Enclosure & Exhaust: Customizable booth dimensions and exhaust capacity to match your factory layout and environmental requirements
Support and Services
  • Comprehensive pre-installation site assessment and layout planning
  • Professional on-site installation, commissioning, and calibration
  • Thorough operator training and maintenance instruction
  • 12-month standard warranty on the entire system (extendable)
  • Lifetime remote technical support and online diagnostics
  • Preventive maintenance plans and global spare parts network
  • Coating process optimization and technical consultation
  • Spray gun maintenance and repair services
Packing and Shipping
  • Spray guns and precision components shipped in shock-resistant, moisture-proof foam crates
  • Entire system modularized and packed in heavy-duty, weatherproof wooden crates
  • Special anti-static packaging for electronic and control components
  • All shipments include detailed documentation and can be arranged via air or sea based on your requirements
Frequently Asked Questions
Q: Is spray coating suitable for pulp molding products?
A: Yes. Spray coating is ideal for applying uniform functional coatings on complex 3D molded pulp products. The system is designed with precision spray guns and adjustable spray patterns to ensure complete coverage on corners, sidewalls, and curved surfaces. Fully compliant with CE and other international standards.
Q: How does spray coating compare to other coating methods?
A: Spray coating offers excellent coverage on complex 3D geometries, making it ideal for molded pulp products with intricate shapes. It provides customizable coating thickness and is compatible with a wide range of coating formulations. Compared to dip coating, spray coating offers better thickness control and less material waste.
Q: Can the system handle various product sizes and coating requirements?
A: Yes. The system features customizable spray gun configuration, coating width, coating thickness, and drying profiles. Real-time monitoring allows dynamic adjustment, ensuring optimal coating quality for different products.
Q: How much floor space does the system require?
A: The system layout is fully customizable. Depending on your production capacity and available floor space, we can design a compact or expanded configuration to best suit your needs.
Q: What are the total operating costs?
A: Overall operating costs are optimized through high transfer efficiency, reduced coating waste, and integrated drying. Coating material and electricity are the primary operating costs. We can provide a detailed cost analysis based on your specific production parameters.
