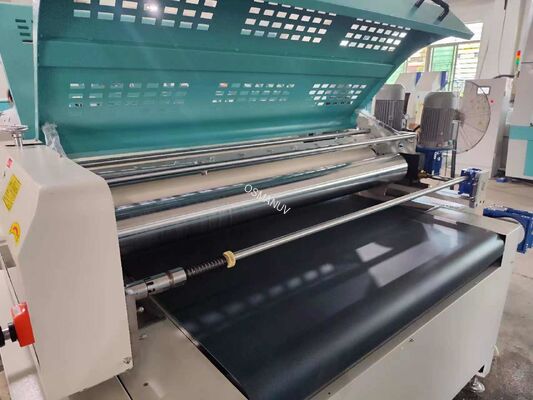

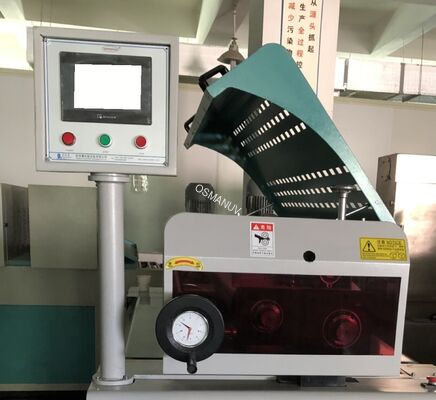

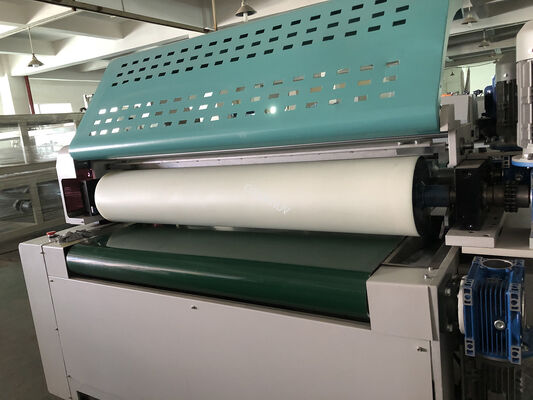

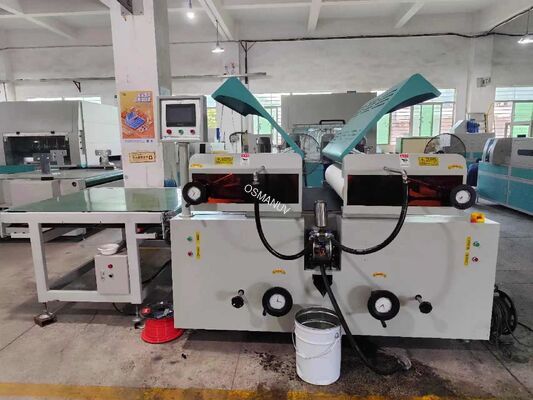

High-Speed Roller Coating Machine for Continuous Processing with Customizable Coating Width Up to 40 cycles/min

Continuous Processing, Up to 40 cycles/min, Customizable Coating Width

This roller coating production line is engineered for applying uniform, high-performance internal barrier coatings—waterproof, oil-proof, and heat-resistant—to molded pulp tableware and packaging products. The precision roller coating process uses a dosing roller and applicator roller system with independently adjustable speeds to evenly spread coating over the internal surfaces of molded pulp products, eliminating pinholes and ensuring consistent dry film thickness.

Unlike spray coating methods, roller coating delivers transfer efficiency of ≥90-95%, drastically reducing material waste—critical for high-value barrier materials such as bio-based polymers and PFAS-free formulations. The closed-loop roller system minimizes volatile emissions, coating contamination, and workplace mess.

With intelligent PLC control and recipe-driven operation, the equipment supports fully customizable drying profiles, roller speed programs, and product fixture designs to accommodate different product geometries, coating formulations, and production throughputs.

Note: All technical parameters are customizable to meet specific production requirements and product specifications.

• Food Service Ware: Internal barrier coating for plates, bowls, clamshells, lunch boxes, cup carriers—ensuring water-resistant and oil-resistant performance with PFAS-free coatings
• Egg Trays & Produce Trays: Moisture barrier coating for fruit and vegetable packaging to extend shelf life
• Electronics Packaging: Anti-static trays for semiconductors, circuit boards, hard drives—requiring precision coating uniformity
• Industrial Packaging: Corner protectors, edge guards, pallet supports—durable coating for mechanical protection
• Medical Device Trays: Sterile barrier packaging with high cleanroom compatibility requirements
• Cosmetics Packaging: Premium molded fiber inserts and display trays—aesthetic and functional coating
• Pharmaceutical Blister Pack Inserts: Tablet trays requiring uniform, food-grade barrier coating

Materials compatibility: Suitable for various pulp formulations including bamboo pulp, bagasse (sugarcane pulp), and recycled paper pulp, with customizable parameter adjustments for different fiber compositions and product thicknesses.

• Roller Configuration: Customizable roller diameter (Φ200/Φ250 mm), roller hardness (50-90 Shore A), and number of coating heads (1 or 2)
• Roller Gap Adjustment: Customizable wet coating thickness from 0.01 to 2.0 mm via precision roller gap setting
• Product Fixtures (Nests): Customizable dedicated fixtures for each product shape with quick-change system; changeover <5 minutes
• Drying Zone Configuration: Customizable drying profiles—add UV-LED, modify IR/hot air ratio, or integrate additional cooling sections
• Coating Application System: Customizable dosing pump types (peristaltic, precision syringe, diaphragm) for different coating viscosities
• Control Interface: Customizable automation levels—manual, semi-automatic, or fully automated with MES/ERP integration
• Line Length and Layout: Customizable line configuration—compact placement for limited space or extended conveyor for large-scale lines
• Cleanroom Compatibility: Customizable cleanroom integration—ISO 5 to ISO 8 with HEPA/ULPA filtration and positive-pressure enclosure
• Coating Parameters: Customizable pre-set and adjustable programs for different coating materials, viscosities, and application targets
• System Integration: Customizable I/O interfaces (Ethernet/IP, Profinet, dry contacts) for seamless integration with existing pulp molding presses and factory automation systems

• Precision Roller Coating Technology: Chrome-plated dosing roller with rubber applicator roller ensures consistent film thickness (±2% coating weight accuracy) and eliminates pinholes common in spray application
• High Material Efficiency: Roller coating achieves ≥90-95% material transfer efficiency—significantly higher than air spray (40-60%), reducing coating material costs by 30-50% for high-value barrier coatings

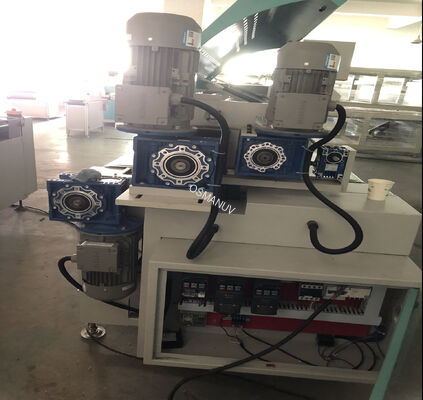

• Independent Roller Speed Control: Dosing and applicator rollers operate with independently adjustable speeds—customizable for different coating viscosities and thickness requirements
• Recipe-Driven Changeover: Store 500+ recipes; change between product families or coating formulations in <5 minutes—ideal for flexible manufacturing
• Integrated Staged Drying: IR + forced hot air in-line drying eliminates separate curing ovens and double handling, reducing work-in-process inventory
• Closed-Loop Pressure Control: Ensures consistent coating weight (±2%) and thickness uniformity (>95% across all products)
• Energy-Saving Design: VFD-controlled blowers, IR zones that activate only with product presence, and standby power mode reduce energy consumption
• Tool-Less Fixture Change: Quick-release product nests minimize downtime between production runs
• Food-Grade Construction: All product-contact surfaces in SUS304 stainless steel ensure compliance with food safety standards
• Full Data Traceability: Batch logging of coating speed, temperature, and coating weight for quality control compliance and ISO certification audits
• Heavy-Duty Modular Construction: Scalable from 12 to 36 stations via bolted turntable sections—expandable for future capacity upgrades
• Safety & Compliance: Built-in light curtains, emergency stops, enclosure interlocks, and over-temperature protection; ISO9001 certified

• Installation & Commissioning: On-site setup and calibration by experienced engineers (2-3 weeks on-site) with customizable support packages available
• Comprehensive Training: Hands-on training for operators, maintenance staff, and R&D personnel—5-10 days on-site training included
• Warranty & Maintenance: 1 year comprehensive warranty on turntable drive, roller motors, PLC, pumps, and all electronics; customizable preventive maintenance contracts available
• Spare Parts Supply: Guaranteed for 10+ years with 48-hour express global shipping from regional warehouses
• Remote Support: 24/7 remote troubleshooting via video call or IoT monitoring with VPN access to PLC for real-time diagnostics, software updates, and parameter tuning
• Process Development: Free sample testing and process development—send your molded pulp products; we provide a full optimization report including coating thickness, uniformity, and barrier performance
• Technical Consultation: Free lifetime technical consultation and future upgrade services for evolving production needs
• Lifetime Support: Technical assistance via phone, email, or online chat for the lifetime of the equipment

• Packing: Securely packed in reinforced wooden crates with anti-rust film and waterproof wrapping; sensitive components (control panel, product fixtures, precision rollers) protected with foam padding
• Standard Lead Time: 30 - 45 working days after order confirmation for standard configurations
• Custom Lead Time: Customizable delivery schedules—50-70 days for fully customized lines
• Shipping: Worldwide shipping via sea freight; FOB / CIF terms available
• Documentation: Full export documentation including technical manuals, electrical schematics, CE declaration, and customs forms provided
• Customizable Options: Export crating, custom labeling, destination port documentation, and special handling instructions available upon request
