Customizable Modular Spray Coating Line with Scalable 1-8 Guns and Seamless Line Integration
Customizable Modular Spray Coating Line with Scalable 1-8 Guns and Seamless Line Integration

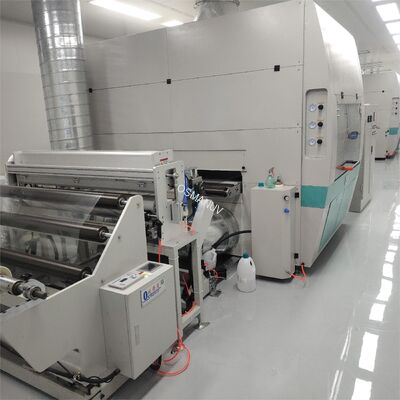

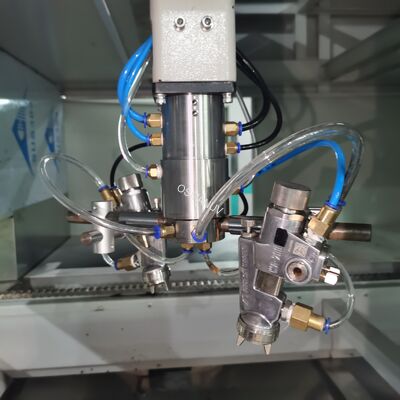

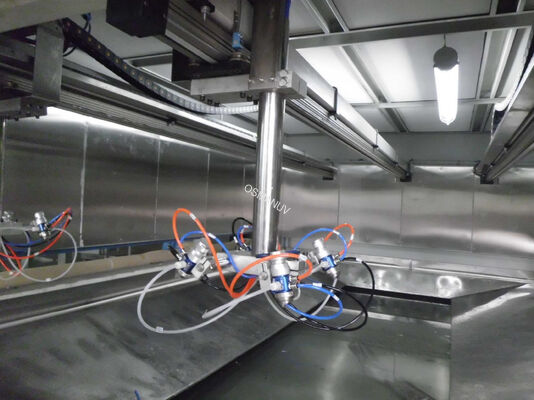

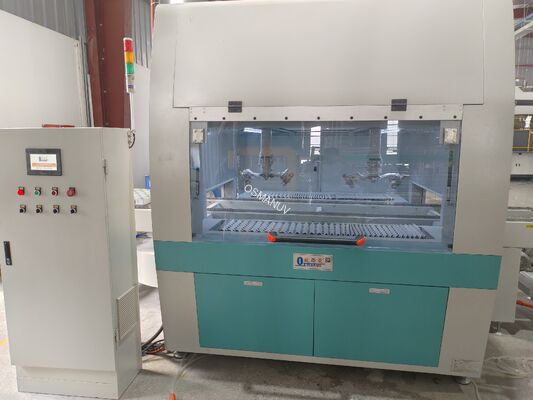

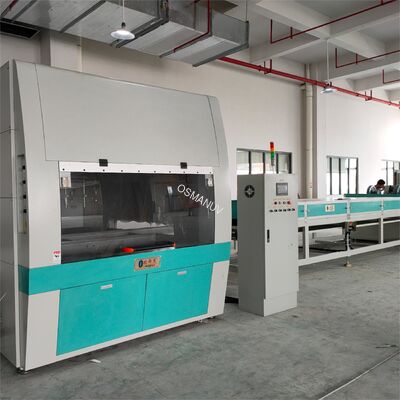

Customizable Modular Spray Coating Line for Pulp Molding This spray coating production line is engineered for applying uniform, high-performance barrier coatings—waterproof, oil-proof, and heat-resistant—to molded pulp tableware and packaging products. The system uses programmable robotic arms or ...
Place of Origin:CHINA
Brand Name:OSMANUV
Certification:ISO9001
Model Number:Specification
Minimum Order Quantity:1 Set
Price:Negotiation
Product Custom Attributes
Highlight
Customizable Modular Spray Coating Line
,Scalable 1-8 Guns Spray Coating Machine
,Seamless Line Integration Spray Coating System
Condition:
New
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Overseas Third-party Support Available,Field Installation
Dimension(l*w*h):
Customized Size,2580*1130*1140MM,1000*2575*1750mm,1200*620*550mm(L*W*H),1030*1000*620mm
Automatic Grade:
Automatic
Driven Type:
Electric
Packaging Material:
Wood
Warranty:
1 Year
Power:
3KW,16KW,65.3kw,4.2kw,0.75KW/220V/50HZ
Product Description
Customizable Modular Spray Coating Line for Pulp Molding
This spray coating production line is engineered for applying uniform, high-performance barrier coatings—waterproof, oil-proof, and heat-resistant—to molded pulp tableware and packaging products. The system uses programmable robotic arms or automated spray guns to evenly apply water-based or solvent-based functional coatings onto the internal and external surfaces of pulp molded products.
Robotic spray systems deliver material transfer efficiency of ≥85%, drastically reducing material waste compared to manual spraying (30-40% efficiency). Customizable spray parameters include gun angle, distance, flow rate, and pattern width to accommodate different product geometries and coating viscosities. The system effectively eliminates pinholes, streaks, and inconsistent film thickness common in manual application.
With intelligent PLC control and recipe-driven operation, the equipment supports fully customizable drying profiles, spray path programs, and product fixture designs to accommodate different product geometries, coating formulations, and production throughputs.
Technical Specifications
| Parameter | Specification / Range | Customization Options |
|---|---|---|
| Robot Type | 6-axis industrial articulated arm (standard); Cartesian or SCARA optional | Customizable reach, payload, and accuracy |
| Spray Gun Type | Airless / HVLP / Air-assisted airless (selectable) | Customizable nozzle sizes (0.8-2.0 mm) |
| Spray Technology | High-transfer-efficiency air-assisted airless | Customizable to ultrasonic or low-flow spray for ultra-thin coatings |
| Coating Transfer Efficiency | ≥85% (standard); up to 95% with optimized settings | Optimized via customizable spray parameters |
| Repeat Positioning Accuracy | ±0.05 mm (robotic) / ±0.5 mm (vision-guided) | Customizable based on product tolerance requirements |
| Coating Uniformity | ±3% film thickness deviation | Optimized via closed-loop control |
| Spray Speed | 0 - 1,500 mm/s (adjustable) | Customizable speed profiles |
| Max Product Size (L×W×H) | 800 × 600 × 300 mm (standard); larger sizes available | Customizable fixtures and conveyor width |
| Coating Thickness (Wet) | Adjustable: 0.01 - 0.50 mm | Adjustable via flow rate and spray pattern |
| Compatible Coating Types | Water-based acrylics, PE, PLA, bio-based polymers, PFAS-free barrier coatings, solvent-based lacquers, UV-curable coatings | Customizable for specific coating formulations |
| Coating Viscosity Range | 20 - 500 cP (standard); up to 2,000 cP with optional pump | Customizable pump and fluid delivery system |
| Drying Method | Multi-zone IR + forced hot air | Customizable: IR only, hot air only, UV-LED, or NIR |
| Drying Temperature Range | 40 - 150°C (zone-independent PID control) | Customizable temperature profiles |
| Number of Spray Guns | 1 - 8 guns (standard configuration) | Customizable station count |
| Power Supply | 380V / 400V / 460V, 50/60Hz, 3-phase | Configurable to regional standards (e.g., 220V/60Hz) |
| Control System | PLC with 10-15″ HMI touchscreen, 100+ recipe storage | Customizable automation protocols (PROFIBUS, Ethernet/IP) |
| Data Logging | USB, Ethernet/IP, Profinet; optional OPC-UA for MES integration | Customizable data reporting formats |
| Air Consumption | 0.6 - 0.8 MPa, 1.2 m³/min (standard) | Customizable per gun configuration |
| Overall Line Dimensions (L×W×H) | Approx. 3,200 - 15,000 × 1,800 - 3,000 × 2,200 mm | Customizable layout and footprint |
| Materials (Contact Surfaces) | SUS304 food-grade stainless steel | -- |
| Safety Features | Light curtain, emergency stops, enclosure interlock, explosion-proof exhaust, over-temperature protection | Customizable per factory requirements |
Note: All technical parameters are customizable to meet specific production requirements and product specifications.
Applications
- Food Service Ware: Internal and external barrier coating for plates, bowls, clamshells, lunch boxes, cup carriers—ensuring water-resistant and oil-resistant performance with PFAS-free coatings
- Egg Trays & Produce Trays: Moisture barrier coating for fruit and vegetable packaging to extend shelf life; reduces water absorption (Cobb value) and prevents leakage
- Electronics Packaging: Anti-static coating for trays holding semiconductors, circuit boards, hard drives—requiring precision coating uniformity
- Industrial Packaging: Corner protectors, edge guards, pallet supports—durable coating for mechanical protection with enhanced stiffness
- Medical Device Trays: Sterile barrier packaging with high cleanroom compatibility requirements
- Cosmetics Packaging: Premium molded fiber inserts and display trays—aesthetic and functional coating
- Pharmaceutical Blister Pack Inserts: Tablet trays requiring uniform, food-grade barrier coating
Materials compatibility: Suitable for various pulp formulations including bamboo pulp, bagasse (sugarcane pulp), and recycled paper pulp. Research confirms that spray coating improves water resistance (up to 30-fold reduction in Cobb value), oil resistance, moisture barrier properties, and mechanical stiffness through nanocellulose or polyurethane coatings, with customizable parameter adjustments for different fiber compositions and product thicknesses.
Customization Options
- Robot Configuration: Customizable robot arm reach, payload capacity, number of axes (6-axis standard, SCARA or Cartesian optional)
- Spray Gun System: Customizable gun types (airless, HVLP, ultrasonic, low-flow spin coating), nozzle sizes, and number of guns (1-8)
- Spray Path Programming: Customizable path algorithms for complex 3D geometries; vision-guided positioning compensates for product dimensional variation
- Product Fixtures (Nests): Customizable dedicated fixtures for each product shape with quick-change system; changeover <5 minutes via recipe recall
- Drying Zone Configuration: Customizable drying profiles—add UV-LED, modify IR/hot air ratio, integrate NIR for heat-sensitive biopolymers
- Control Interface: Customizable automation levels—manual, semi-automatic, or fully automated with MES/ERP integration
- Line Length and Layout: Customizable line configuration—compact placement for limited space or extended conveyor for large-scale lines
- Cleanroom Compatibility: Customizable cleanroom integration—ISO 5 to ISO 8 with HEPA/ULPA filtration and positive-pressure enclosure
- Coating Parameters: Customizable pre-set and adjustable programs for different coating materials, viscosities, and application targets
- System Integration: Customizable I/O interfaces (Ethernet/IP, Profinet, dry contacts) for seamless integration with existing pulp molding presses and factory automation systems
Key Features
- Robotic Precision: 6-axis articulated arm with ±0.05 mm repeatability ensures 100% consistent coverage on complex 3D geometries, eliminating pinholes and streaks common in manual spraying
- High Transfer Efficiency: Advanced air-assisted airless technology achieves ≥85% material transfer efficiency—significantly higher than manual spraying (30-40%), reducing coating material costs by up to 40%
- Vision-Guided Positioning: Vision system compensates for dimensional variation in pulp molded products, ensuring accurate spray path alignment on every cycle
- Closed-Loop Paint System: Real-time flow rate and pressure monitoring with automatic viscosity control maintains consistent coating quality and reduces waste
- Recipe-Driven Changeover: Store 100+ recipes; change between product families or coating formulations in <5 minutes—ideal for flexible manufacturing
- Integrated Staged Drying: IR + forced hot air or UV-LED in-line drying eliminates separate curing ovens and double handling, reducing work-in-process inventory
- Energy-Saving Design: VFD-controlled blowers, IR zones that activate only with product presence, and standby power mode reduce energy consumption
- Automatic Nozzle Cleaning: Anti-clogging design with programmable cleaning cycles minimizes downtime and ensures consistent spray quality
- Food-Grade Construction: All product-contact surfaces in SUS304 stainless steel ensure compliance with food safety standards
- Full Data Traceability: Batch logging of spray speed, temperature, coating weight, and cycle times for quality control compliance and ISO certification audits
- Explosion-Proof Design: Optional explosion-proof enclosure and exhaust system for solvent-based coatings—customizable option
- Heavy-Duty Modular Construction: Scalable from 1 to 8 spray guns; expandable for future capacity upgrades via bolted sections
- Safety & Compliance: Built-in light curtains, emergency stops, enclosure interlocks, over-temperature protection; CE and ISO9001 certified
Support and Services
- Installation & Commissioning: On-site setup, calibration, and path programming by experienced engineers (2-3 weeks on-site) with customizable support packages available
- Comprehensive Training: Hands-on training for operators, maintenance staff, and R&D personnel—5-10 days on-site training included; video manuals also provided
- Warranty & Maintenance: 12-month comprehensive warranty on robotic arm, PLC, pumps, and all electronics; customizable preventive maintenance contracts available
- Spare Parts Supply: Guaranteed for 10+ years with 48-hour express global shipping from regional warehouses
- Remote Support: 24/7 remote troubleshooting via video call or IoT monitoring with VPN access to PLC for real-time diagnostics, software updates, and parameter tuning
- Process Development: Free sample testing and process development—send your molded pulp products; we provide a full optimization report including spray parameters, coating thickness, uniformity, and barrier performance
- Technical Consultation: Free lifetime technical consultation and future upgrade services for evolving production needs
- Lifetime Support: Technical assistance via phone, email, or online chat for the lifetime of the equipment
Packing and Shipping
- Packing: Securely packed in reinforced wooden crates with anti-rust film and waterproof wrapping; sensitive components protected with custom foam inserts
- Standard Lead Time: 30 - 45 working days after order confirmation for standard configurations
- Custom Lead Time: Customizable delivery schedules—50-70 days for fully customized lines
- Shipping: Worldwide shipping via sea freight, air freight, or rail; FOB / CIF terms available
- Documentation: Full export documentation including technical manuals, electrical schematics, CE declaration, and customs forms provided
- Customizable Options: Export crating, custom labeling, destination port documentation, and special handling instructions available upon request
Frequently Asked Questions
Q1: What is the typical production capacity of this spray coating line?
Production capacity ranges from 10-40 cycles per minute depending on configuration (product-dependent). By adding spray guns or increasing conveyor speed, throughput can be scaled to meet production targets. Capacity is fully customizable based on your target production volume and product geometry.
Q2: How does spray coating compare to other coating methods in terms of material efficiency?
Advanced high-transfer-efficiency spray technology achieves ≥85% material transfer efficiency—significantly higher than manual spraying (30-40%). For high-value barrier coatings, this can reduce material costs by up to 40%.
Q3: Can the line be integrated with my existing pulp molding press?
Absolutely. The infeed conveyor height, orientation, and synchronization signals (dry contacts, Ethernet/IP, Profinet) are fully customizable for seamless integration with your existing forming press. We can also integrate robotic pick-and-place for direct transfer from press to the spray coating unit.
