Automatic Spray Coating Machine for Wood & Metal – PLC-Controlled Reciprocating Sprayer, Fully Customizable Nozzle & Stroke

Automatic Spray Coating Machine for Wood & Metal – PLC-Controlled Reciprocating Sprayer, Fully Customizable Nozzle & Stroke
Automatic Spray Coating Machine for Wood & Metal – PLC-Controlled Reciprocating Sprayer, Fully Customizable Nozzle & Stroke
Automatic Spray Coating Machine for Wood & Metal – PLC-Controlled Reciprocating Sprayer, Fully Customizable Nozzle & Stroke Automatic Spray Coating Machine for Wood & Metal – PLC-Controlled Reciprocating Sprayer, Fully Customizable Nozzle & Stroke Automatic Spray Coating Machine for Wood & Metal – PLC-Controlled Reciprocating Sprayer, Fully Customizable Nozzle & Stroke Automatic Spray Coating Machine for Wood & Metal – PLC-Controlled Reciprocating Sprayer, Fully Customizable Nozzle & Stroke Automatic Spray Coating Machine for Wood & Metal – PLC-Controlled Reciprocating Sprayer, Fully Customizable Nozzle & Stroke Automatic Spray Coating Machine for Wood & Metal – PLC-Controlled Reciprocating Sprayer, Fully Customizable Nozzle & Stroke

Large Image :  Automatic Spray Coating Machine for Wood & Metal – PLC-Controlled Reciprocating Sprayer, Fully Customizable Nozzle & Stroke

Product Details:
Place of Origin: CHINA
Brand Name: OSMANUV
Certification: ISO9001
Model Number: Specification
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: WOOD PACKAGING
Delivery Time: 30-45 days
Payment Terms: T/T
Supply Ability: Negotiation
Contact Now

Automatic Spray Coating Machine for Wood & Metal – PLC-Controlled Reciprocating Sprayer, Fully Customizable Nozzle & Stroke

Description
Printing Height: 2-3mm Power Supply: 220V/380V, 50/60Hz
Machining Thickness: 200mm Spray Volume: 0-1000ml/min
Coating Material: Powder, Liquid, Etc. Conveying Speed: 1-10m/min
Printhead Resolution: 1200 Dpi Coatingmaterial: Paint, Varnish, Adhesive
Highlight:

PLC-controlled spray coating machine

,

automatic wood metal sprayer

,

customizable nozzle stroke sprayer

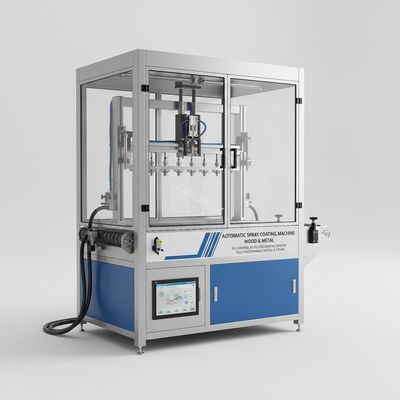

Automatic Spray Coating Machine for Wood & Metal
PLC-Controlled Reciprocating Sprayer, Fully Customizable Nozzle & Stroke
Product Overview

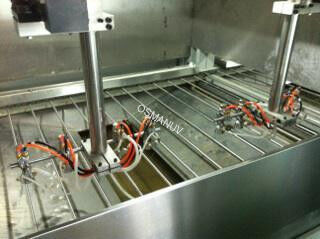

The Spray Coating Machine (also called automatic spray painter) applies a uniform layer of paint, varnish, water-based coating, or other liquid finishes onto flat or shaped products. It uses reciprocating spray guns or robotics to cover the surface efficiently.
The machine is fully customizable - number of guns, spray pattern, stroke length, conveyor speed, and drying method - to fit furniture, metal parts, plastic, and automotive component painting.
Technical Specifications
Parameter Standard Value Customizable Range
Max product width 1300 mm Customizable up to 2600 mm
Max product height 150 mm Customizable up to 500 mm
Conveyor speed 0 - 15 m/min Customizable up to 30 m/min
Reciprocating stroke 0 - 1400 mm (adjustable) Customizable up to 2500 mm
Number of spray guns 2 (standard) 1 - 8 guns customizable
Spray gun type HVLP (high volume low pressure) Airless / Air-assisted / Electrostatic / customizable brand
Spray width per gun 200 - 400 mm Customizable via nozzle/air cap
Transfer efficiency 70 - 85% (HVLP) Customizable with electrostatic (up to 95%)
Coating thickness 15 - 150 µm (wet) Customizable down to 5 µm
Overspray recovery Dry filter (standard) Water curtain / Cyclone + bag filter customizable
Drying method Hot air (2 zones) IR / UV / Ambient - customizable zone length
Power supply 380V / 50Hz (3-phase) 220V - 480V, 50/60Hz customizable
Applications
  • Woodworking - Furniture panels, doors, window frames, flooring
  • Metal finishing - Steel cabinets, automotive parts, aluminum profiles
  • Plastic components - Electronic housings, appliance parts
  • Glass & ceramics - Decorative coatings, functional films
  • Customizable for: coils, pipes, irregular 3D objects (with rotary attachment)
Customization Options
All models support full customization:
  • Gun traverse method (reciprocating arm / XY gantry / 6-axis robot)
  • Paint supply type (gravity, siphon, pressure tank, or circulating system)
  • Flameproof electricals for solvent-based paints
  • Automatic gun triggering (detects product start/end via photoelectric sensor)
  • Color change system (manual or automatic flushing)
  • Rapid mold/part changeover kit
  • CE / ATEX / NFPA certification - customizable
Key Features
  • Uniform coating coverage with adjustable overlap (25 - 75%)
  • Reduced overspray thanks to optimized gun angle & air settings
  • Automatic stroke width adjustment to match product width
  • Multi-product recipe storage (100+ programs on HMI)
  • Removable booth panels for easy cleaning
  • Energy-saving circulation of drying air (optional heat recovery)
Support and Services
  • 18-month warranty (extendable)
  • Remote support via WhatsApp, Teams, or video call
  • Spare parts (guns, nozzles, filters, pumps) stocked for 5+ years
  • On-site installation, calibration & operator training (for industrial orders)
  • Free feasibility testing: send your part and coating - we return coated sample + report
Packing and Shipping
  • Packing: Heavy-duty plywood crate + foam padding + VCI anti-rust paper
  • Sensitive parts (guns, controllers) packed separately with bubble wrap
  • Shipping: FOB (Shanghai / Guangzhou) or CIF by sea, air, or rail
  • Lead time: 20 - 60 days based on customization level
Frequently Asked Questions
Q: Can I use water-based and solvent-based paint on the same machine?
A: Yes, but cleaning procedures differ. We can customize a quick-flush circulation system and explosion-proof option for solvents.
Q: How is overspray recovered and disposed of?
A: Standard dry filter (easy to replace). For high production, we customize water curtain or cyclone + bag filter for paint sludge collection.
Q: Does the machine come with a drying system?
A: Basic models do not include drying. We can customize with IR, hot air, or UV drying tunnels matched to your coating chemistry.
