Product Details:
Place of Origin: CHINA
Brand Name: OSMANUV
Certification: ISO9001
Model Number: Specification
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: WOOD PACKAGING
Delivery Time: 30-45 days
Payment Terms: T/T
Supply Ability: Negotiation
Contact Now

High-Build Spray Machine Barrier Coating | Anti-Block & Anti-Corrosion for Automated Lines

Description
Control System: PLC Touch Screen Control Spray Volume: 0-1000ml/min
Driven Type: Electric Powersupply: 220V/50Hz
Nozzlediameter: 0.5 Mm Spray Gun Type: Pneumatic
Minimum Height: 410mm Power Supply: 220V/380V, 50/60Hz
Printing Speed: 28m/min
Highlight:

High-Build spray coating machine

,

Anti-block spray coating machine

,

Anti-corrosion automated line coating

High-Build Spray Machine Barrier Coating | Anti-Block & Anti-Corrosion for Automated Lines

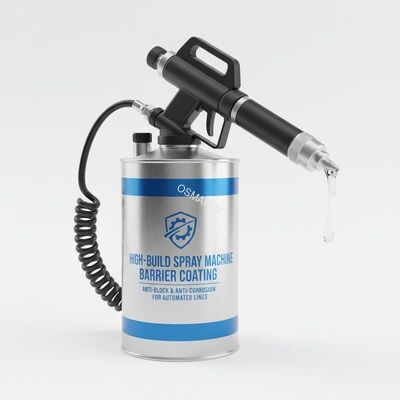

This spray machine barrier coating is designed to protect spray equipment and surrounding surfaces from overspray, chemical attack, and mechanical abrasion. It forms a removable or permanent protective film that prevents paint/dirt build-up on spray booth walls, conveyors, and robot arms. Ideal for high-volume finishing lines. Customizable viscosity, color, and curing temperature available for different spray placer models.

Technical Parameters
Parameter Value / Range
Solid Content 25% - 65% (customizable)
Viscosity (cP @25°C) 200 - 2500 (adjustable)
Density (g/cm³) 0.98 - 1.35
Curing Time 3 - 15 min @80-150°C (air dry optional)
Max Operating Temperature 180°C (continuous)
Tensile Strength (MPa) 8 - 22
Elongation at Break (%) 50 - 300%
Chemical Resistance pH 3-12, solvents, oils
VOC (g/L) < 50 (low-VOC version available)
Application
  • Spray booth walls & floors - prevents paint adhesion, easy stripping
  • Conveyor fixtures & robot arms - reduces cleaning downtime
  • Overspray collection zones - acts as release layer
  • Automotive, wood, metal, plastic coating lines
  • Custom shapes/parts - moldable barrier film (customizable thickness)
Customization

We offer full customization:

  • Color (clear, white, blue, anti-static)
  • Peelability (permanent vs. peelable barrier)
  • Chemical resistance profile (acid/alkali/solvent optimized)
  • Curing method (UV, thermal, moisture, or ambient)
  • Spray machine compatibility (low-pressure, high-pressure, electrostatic)
  • Batch size from 1L samples to 1000L IBC tote
Features
  • ✅ Anti-block & non-stick surface after curing
  • ✅ Corrosion protection for spray equipment
  • ✅ Reduces cleaning time by up to 80%
  • ✅ Can be applied by robot or manual spray gun
  • ✅ Strippable or washable with compatible solvent
  • ✅ Heat-resistant up to 180°C
  • ✅ Free of heavy metals & halogens (eco-friendly option)
Support and Services
  • Free sample testing on your spray line
  • On-site application training (spray parameters & curing)
  • Custom formula R&D within 10 working days
  • Technical datasheets & SDS in 8 languages
  • 24/7 online support for troubleshooting
  • Recycling program for stripped coating waste
Packing and Shipping
  • Standard packing: 5L, 20L, 200L steel/plastic drums
  • Custom packing: 1L cans, 1000L IBC, or bulk tanker
  • Shipping: UN-approved packaging for non-hazardous or limited-quantity hazardous (depending on formula)
  • Lead time: 3-5 days for stock, 10-15 days for custom batches
  • Storage: 12 months in original sealed container @5-35°C
Frequently Asked Questions
Q1: Can this barrier coating be used on all spray machine brands?
A: Yes. The formula is customizable for different nozzle types, pressures, and robot speeds. Contact us with your spray placer model.
Q2: Is it removable?
A: We offer both peelable (dry film strips off easily) and permanent versions. The peelable type is most common for spray booth protection.
Q3: How long does the cured coating last before recoating?
A: Under normal overspray conditions, 30-90 days. Recoatable without stripping if using same barrier material.
Q4: What's the minimum order for a customized formula?
A: 20L for basic adjustments (color/viscosity). 100L for full chemical resistance customization.
