Fully Automatic Reciprocating Spray Coating Line | Customizable PLC & Paint Supply System | Low Overspray Rate

Fully Automatic Reciprocating Spray Coating Line | Customizable PLC & Paint Supply System | Low Overspray Rate
Fully Automatic Reciprocating Spray Coating Line | Customizable PLC & Paint Supply System | Low Overspray Rate
Fully Automatic Reciprocating Spray Coating Line | Customizable PLC & Paint Supply System | Low Overspray Rate Fully Automatic Reciprocating Spray Coating Line | Customizable PLC & Paint Supply System | Low Overspray Rate Fully Automatic Reciprocating Spray Coating Line | Customizable PLC & Paint Supply System | Low Overspray Rate Fully Automatic Reciprocating Spray Coating Line | Customizable PLC & Paint Supply System | Low Overspray Rate Fully Automatic Reciprocating Spray Coating Line | Customizable PLC & Paint Supply System | Low Overspray Rate Fully Automatic Reciprocating Spray Coating Line | Customizable PLC & Paint Supply System | Low Overspray Rate

Large Image :  Fully Automatic Reciprocating Spray Coating Line | Customizable PLC & Paint Supply System | Low Overspray Rate

Product Details:
Place of Origin: CHINA
Brand Name: OSMANUV
Certification: ISO9001
Model Number: Specification
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: WOOD PACKAGING
Delivery Time: 30-45days
Payment Terms: T/T
Supply Ability: Negotiation
Contact Now

Fully Automatic Reciprocating Spray Coating Line | Customizable PLC & Paint Supply System | Low Overspray Rate

Description
Working Speed: 1-10m/min Spray Gun Diameter: 1.0-1.5mm
Dry Way: UV Lamp Spray Distance: 0-200mm
Apply To: Pulp Food Container Coating Durability: High Durability
Material: Natural Rubber,PVC Dimensions: 800 X 600 X 1200 Mm
Highlight:

fully automatic spray coating line

,

customizable PLC spray coating system

,

low overspray spray coating machine

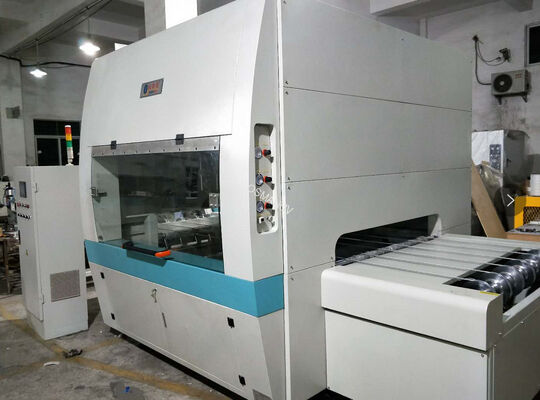

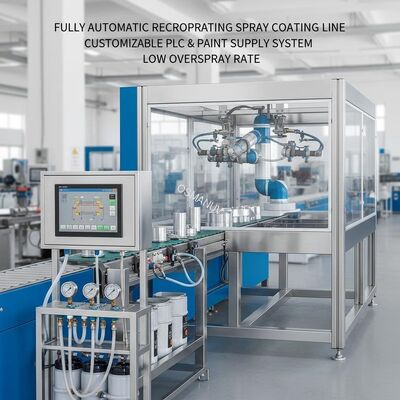

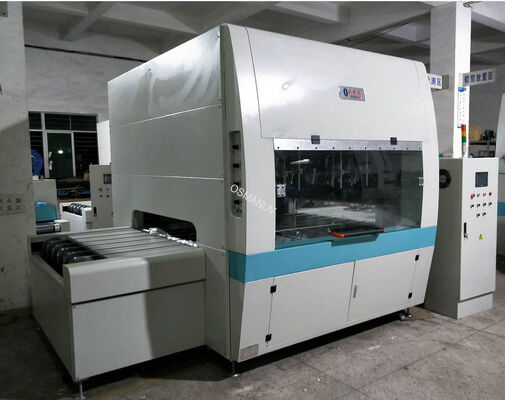

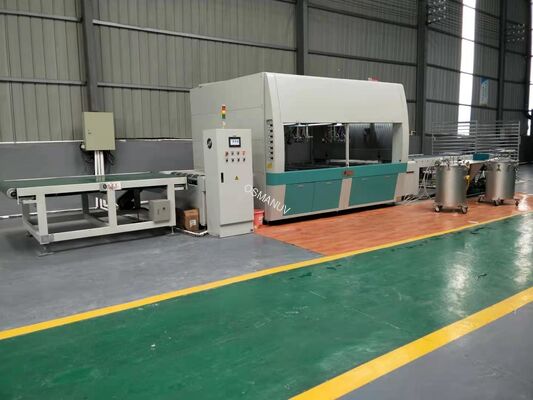

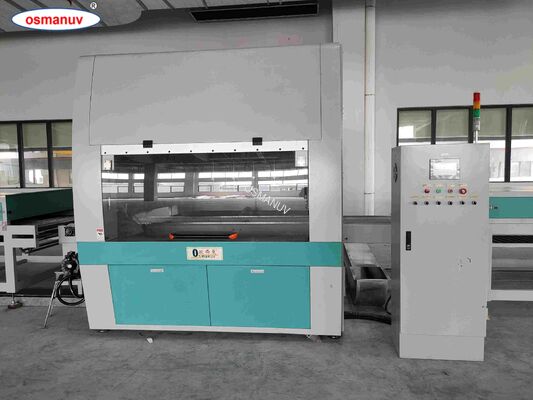

Fully Automatic Reciprocating Spray Coating Line
Product Overview

This automatic spraying machine is designed for high-efficiency, uniform coating on wood, metal, plastic, and ceramic parts. Integrated electrostatic technology reduces paint waste by up to 40%. The modular structure allows customizable configuration for small batch or mass production. Supports water-based, solvent-based, and UV paints.

Technical Parameters
Parameter Standard Range Customizable Options
Max workpiece size (L×W×H) 2000×1000×500 mm Yes - up to 4000×2000×800 mm
Spray gun type Automatic air spray gun Yes - airless / HVLP / electrostatic
Number of guns 2 (standard) Yes - 1 to 8 guns
Conveyor speed 1-5 m/min Yes - 0.5-10 m/min
PLC control 7" HMI + LOGO! Yes - Delta
Paint recovery efficiency ≥85% Yes - add cyclone separator
Power supply 380V / 50Hz / 3-phase Yes - 220V / 60Hz / custom voltage
Air consumption 600 L/min @ 6 bar Yes - regulated per gun quantity
Applications
  • Furniture & wooden doors
  • Automotive parts (bumpers, mirrors, wheels)
  • General industry (machinery covers, electronics housings)
  • Plastic & composite products
  • Customizable for explosion-proof environment (ATEX) or cleanroom class
Customization Options
  • Size & layout of the whole line
  • Spraying trajectory (teach-in or offline programming)
  • Color change system (manual / semi-auto / full-auto)
  • Drying method (IR, hot air, UV)
  • Data export (MES / SCADA / OPC UA)
Key Features
  • Closed-loop pressure control for consistent film thickness
  • Automatic gun trigger reduces paint consumption
  • Touchscreen recipe management (store up to 1000 recipes)
  • Quick color change (< 3 minutes with customizable flushing module)
  • Overspray capture system with washable filters
Support and Services
  • Free remote troubleshooting (24/7)
  • On-site commissioning (customizable service duration)
  • Spare parts supply for 10+ years
  • Operator training (video / on-site / customizable training plan)
  • Line audit and productivity optimization report
Packing and Shipping
  • Packing: Stretch-wrapped with anti-rust oil + fumigation-free wooden case (customizable labeling & export carton)
  • Shipping: FOB / CIF / EXW (customizable port: Shanghai / Ningbo / Shenzhen)
  • Lead time: 20-35 working days (customizable rush order processing)
Frequently Asked Questions
Q1: Can the spraying width be customized for irregular shapes?
A: Yes. The robot arm or reciprocator stroke is 100% customizable based on your workpiece CAD drawing.
Q2: Do you support water-based paint?
A: Yes, with customizable stainless steel tank and acid-resistant hoses.
Q3: What is the minimum order quantity?
A: 1 set (complete line is customizable even for single unit).
Q4: How to get a customized quotation?
A: Send us your: workpiece size, paint type, output per shift, and preferred PLC brand - we design within 24h.

Tag:

L3800mm uv coater for digital printing,

180m/Min Spray Coating Machine,

60KW Spray Coating Machine
