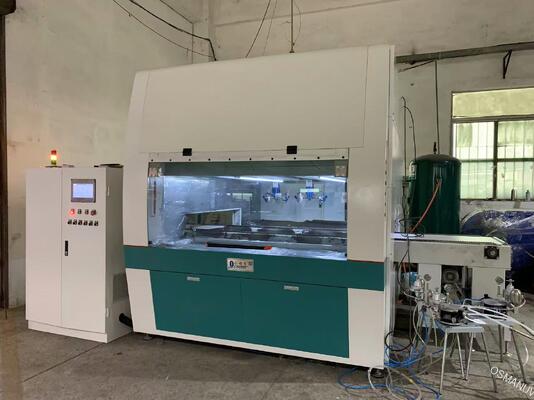

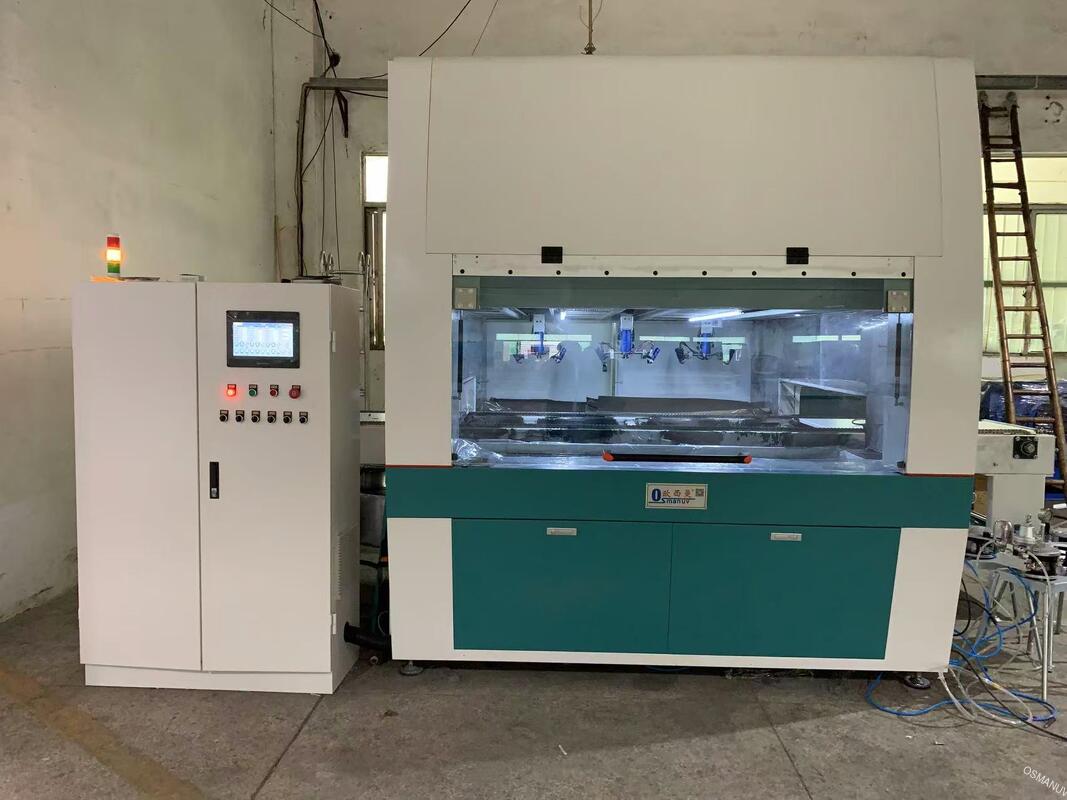

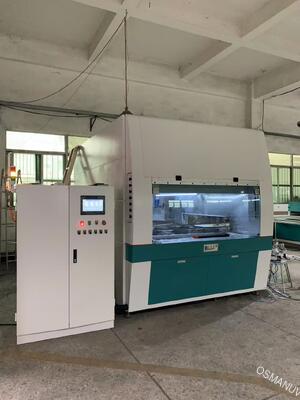

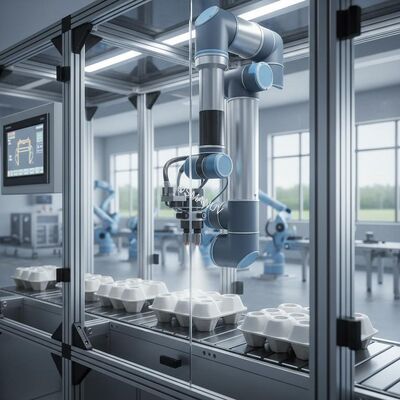

High-Precision Robotic Internal Coating Spraying System for Molded Pulp Packaging
Product Details:
| Place of Origin: | China |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-PT-1320 |
| Document: | automatic spray coating mac...ne.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 30~40 Days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Coating Durability: | High Durability | Delivery Pile Height: | 1100 Mm |
|---|---|---|---|
| Effective Width: | 1300mm | Core Components: | PLC, Bearing, Motor, Pump |
| Operation Environment: | Temperature: 15-35°C, Humidity: 20%-60% | Dry Way: | UV Lamp |
| Spray Gun: | Automatic Gun | Voltage: | 380V/50HZ, Can Be Adjustable |
| Highlight: | robotic internal coating system,molded pulp spraying machine,high-precision spray coating system |
||
Product Description
- Robotic spraying arm (6-axis)

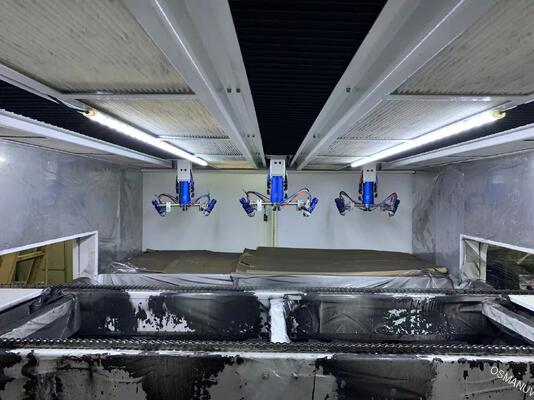

- High-pressure airless spray gun

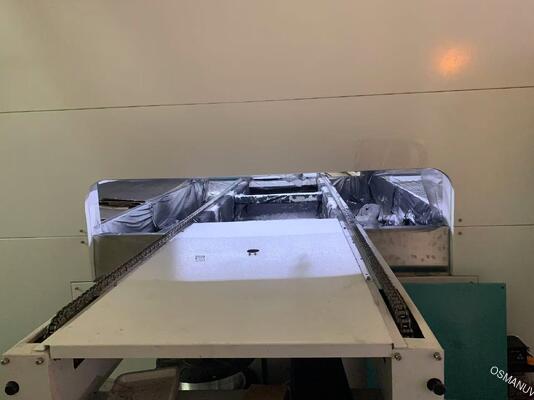

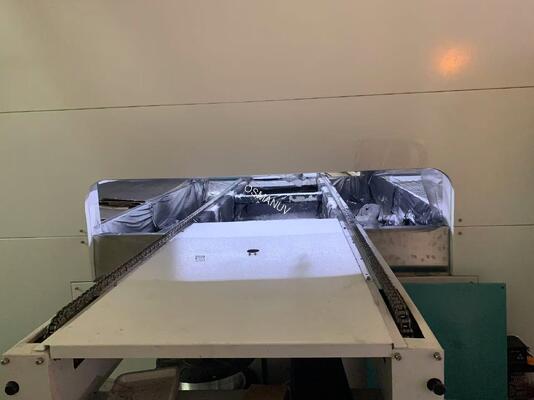

- Conveyor belt system with workpiece positioning sensors
- Automatic paint supply & circulation system
- PLC control panel with HMI touch screen
- Exhaust & ventilation unit (explosion-proof)
- Paint recovery & waste treatment module
This automatic internal coating spraying equipment is specifically designed for molded pulp industrial packaging (e.g., egg trays, fruit trays, electronic cushioning packaging). It uses programmable robotic arms to evenly apply water-based or solvent-based functional coatings (waterproof, oil-proof, anti-static) onto the inner surface of pulp molded products. The system ensures consistent film thickness, reduces overspray, and increases coating material utilization by up to 40%. Ideal for medium to large-scale production lines.
| Model | RICS-MP680 |
| Max. workpiece size (L×W×H) | 800×600×300 mm |
| Coating speed | 0-1500 mm/s (adjustable) |
| Repeat positioning accuracy | ±0.05 mm |
| Spray gun type | Airless / HVLP (optional) |
| Coating material viscosity range | 20-500 cP |
| Power supply | 380V/50Hz, 3-phase |
| Air consumption | 0.6-0.8 MPa, 1.2 m³/min |
| Overall dimensions (L×W×H) | 3200×1800×2200 mm |
| Weight | 1850 kg |
- Molded pulp industrial packaging: electronic product trays, medical device packaging, industrial shock-absorbing liners
- Internal surface coating for water/oil/grease resistance
- Anti-static or anti-corrosion coating for special storage requirements
Every system is fully customizable: we can adjust robot arm reach, number of spray guns, conveyor width, coating material compatibility, control software interface, and integration with existing production lines. Custom jigs/fixtures for non-standard workpiece shapes are also available.
- 24/7 online remote troubleshooting
- On-site installation & commissioning
- Operator training (video manuals + in-person)
- 12-month warranty, lifetime spare parts supply
- Annual maintenance contract available
- Packed in plywood export crates with anti-rust film
- Seaworthy packaging, suitable for container shipping (40'HC)
- Delivery: FOB Shanghai or CIF term
- Shipping weight ≈ 2100 kg, volume ≈ 12 m³
A: Yes, with optional extended nozzle and articulated robot arm - customizable reach up to 500 mm.
A: Water-based acrylic, silicone, wax emulsions, solvent-based lacquers, and UV-curable coatings.
A: Less than 5 minutes via recipe recall and quick-change tooling (customizable quick-clamp jigs).
