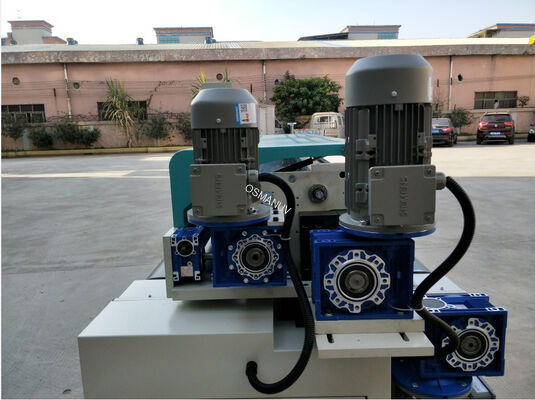

Wide-Width Heavy-Duty Single Roller Coater for Furniture Board Finishing

Wide-Width Heavy-Duty Single Roller Coater for Furniture Board Finishing

Composition of Production Line

This heavy-duty single roller coating line is designed for continuous, high-volume finishing of large-format furniture panels and consists of:

• Automatic Panel Feeding Conveyor: Synchronized infeed system with variable speed control for seamless integration with upstream sanding or filling equipment

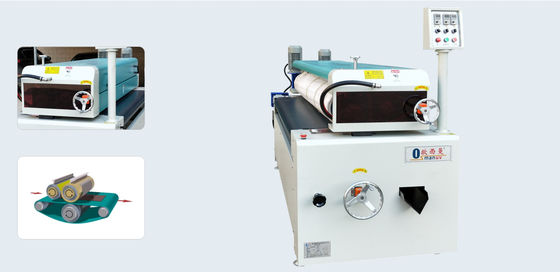

• Precision Single Roller Coating Head: Core coating unit comprising a chrome-plated dosing roller and a high-quality rubber applicator roller

• Integrated Coating Circulation System: Closed-loop paint supply with recirculation pump, filtration unit, and V-shaped reflux tank for 100% coating recovery and minimal waste

• PLC Control Cabinet with Touchscreen HMI: Centralized control system for parameter adjustment, recipe storage, and real-time production monitoring

• Automatic Unloading Conveyor: Outfeed section with optional stacking unit for organized collection of finished panels

• Optional UV Drying Tunnel: Modular drying section with UV lamps for instant curing of UV-curable coatings

Product Description

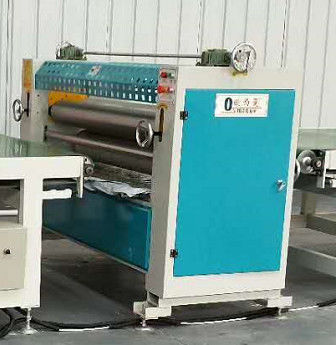

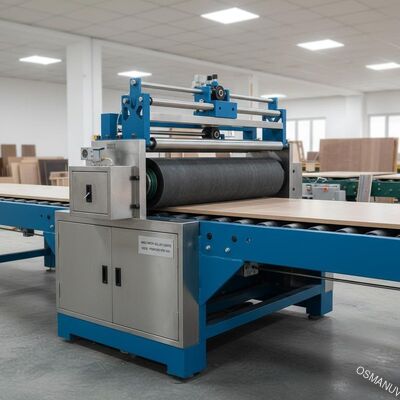

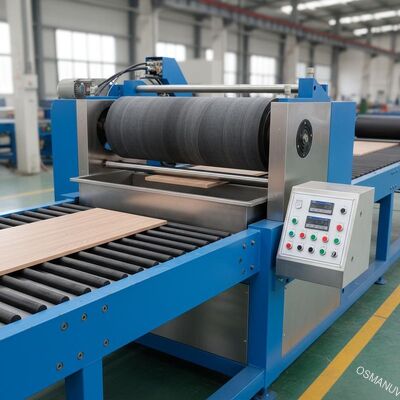

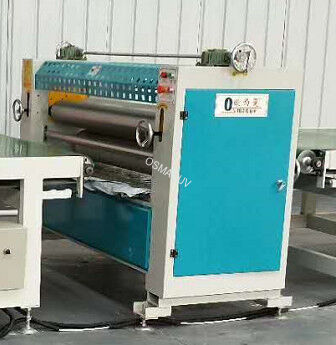

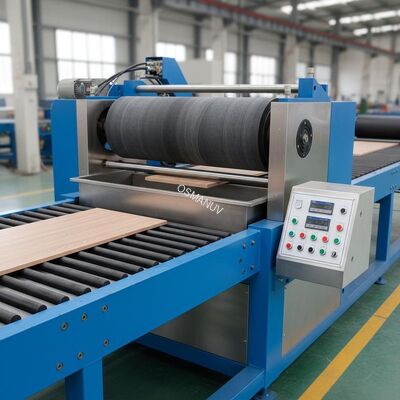

The Wide-Width Heavy-Duty Single Roller Coater is a professional coating machine specifically engineered for applying primers, sealers, fillers, topcoats, UV coatings, water-based coatings, oils, and stains onto flat furniture board surfaces. It is suitable for various types of furniture boards, decorative building materials, composite boards, MDF, particleboard, plywood, solid wood panels, and other flat sheet materials.Utilizing a precision-engineered single roller system with a dosing roller and an applicator roller, the machine delivers uniform, pinhole-free coating films with exceptional smoothness and fullness, effectively preventing issues such as sagging, streaking, and missed coating.The integrated conveyor belt feeds panels through the coating head while adjustable pressure between the dosing and applicator rollers, along with variable roller speeds, ensures precise control over coating thickness down to microns.-
 This heavy-duty configuration is built with high-strength steel construction and premium brand components, ensuring long-term stable operation even under continuous high-volume production demands.

Technical Parameters

Application

Ideal for applying uniform coatings onto furniture boards and flat panel materials across multiple sectors:

• Furniture manufacturing: Coating of MDF, particleboard, plywood, solid wood, and engineered wood panels for cabinets, wardrobes, tables, and shelving units

• Door and window finishing: Application of primers and topcoats on flat wooden doors, door skins, and window frames

• Flooring production: UV coating and sealing of engineered wood flooring, laminate flooring, and parquet panels

• Decorative panel processing: Coating of decorative building materials, wall panels, composite boards, PVC panels, and high-pressure laminates

• Kitchen and bathroom cabinets: Primer and topcoat application on cabinet door panels and component parts

Customization

The line configuration is fully customizable to fit specific factory space, production volume, substrate materials, and coating requirements. Customization options include:

• Working width customizable from 600mm to 2600mm to match specific panel dimensions

• Roller diameter and hardness customizable based on coating type (primer vs. topcoat) and substrate material

• Custom roller configurations for specialized applications, including reverse-roll or gravure-roll metering systems

• Integrated pre-treatment section (sanding, cleaning, corona treatment) for enhanced coating adhesion

• Modular drying/curing section (IR, UV-LED, hot air, or combination) tailored to coating chemistry

• Additional features such as automatic paint viscosity control, double-sided coating capability, or robotic panel loading/unloading

• CE or UL electrical certification customization for specific export markets

Features

• Wide-Width Capability: Handles large-format furniture panels up to 2600mm width in a single pass, eliminating the need for secondary splicing and reducing production steps

• Precision Coating Control: Adjustable pressure between dosing and applicator rollers, variable roller speeds, and optional reverse rotation of dosing roller for enhanced control

• High Material Utilization: Closed-loop circulation system with V-shaped reflux tank achieves 100% coating recovery, significantly reducing material waste compared to spray methods

• Tool-Free Roller Maintenance: Applicator roller can be removed without tools, enabling quick color changes and cleaning in under 10 minutes

• Heavy-Duty Construction: High-strength steel frame, CNC-machined components, and CO₂ welded construction for long-term stability under continuous operation

• User-Friendly Control: Intuitive touchscreen interface with recipe storage for different panel types and coating formulations

• Energy Efficiency: Optional energy-saving features including heat recovery from drying sections and servo-driven roller systems

Support and Services

• Installation & Commissioning: On-site support for installation, alignment, and full line integration

• Operator Training Programs: Comprehensive training covering machine operation, parameter adjustment, maintenance procedures, and safety protocols

• Technical Hotline & Remote Support: Responsive technical assistance via phone, email, and remote diagnostics (IoT connectivity available)

• Preventive Maintenance Plans: Scheduled maintenance programs to maximize uptime and extend equipment lifespan

• Spare Parts Availability: Lifetime supply of genuine spare parts with global distribution network

• Process Optimization Consulting: Expert guidance on coating selection, parameter optimization, and production efficiency improvement

Packing and Shipping

• Packaging: High-quality export wooden case packaging with shock-proof foam lining and moisture-barrier film to prevent shipping damage

• Shipping: Worldwide shipping available with flexible logistics options including sea freight (standard 20ft/40ft container), air freight, and land transportation

• Delivery Time: 30 – 45 days for standard configurations; 45 – 60 days for customized configurations

• Port of Loading: Major Chinese ports (Shanghai, Ningbo, Shenzhen) with full export documentation provided

FAQ

Q: What types of coatings can be applied with this machine?
A: The machine is compatible with a wide range of coating materials including UV-curable coatings, water-based paints and primers, solvent-based coatings, PU and NC lacquers, oils, stains, waxes, fillers, and adhesives.

Q: Can the coating thickness be customized for different applications?
A: Yes, coating thickness is fully adjustable via PLC-controlled parameters, typically ranging from 0.01mm to 2.0mm wet film thickness, to meet specific requirements for primers (thicker) or topcoats (thinner).-

Q: What is the maximum panel width this machine can handle?
A: The standard configuration handles up to 1300mm working width, but the machine is fully customizable up to 2600mm to accommodate large-format furniture panels and decorative building materials.

Q: How easy is it to change colors or coating materials?
A: Very easy. The applicator roller can be removed without tools for quick cleaning, and the closed-loop circulation system allows for rapid material changeover. Color change typically takes 10–15 minutes.
