Precision Ultrasonic Spray Coating Line with Multi-Station Spray and Temperature & Humidity Control

Precision Ultrasonic Spray Coating Line with Multi-Station Spray and Temperature & Humidity Control
Precision Ultrasonic Spray Coating Line with Multi-Station Spray and Temperature & Humidity Control Precision Ultrasonic Spray Coating Line with Multi-Station Spray and Temperature & Humidity Control Precision Ultrasonic Spray Coating Line with Multi-Station Spray and Temperature & Humidity Control Precision Ultrasonic Spray Coating Line with Multi-Station Spray and Temperature & Humidity Control Precision Ultrasonic Spray Coating Line with Multi-Station Spray and Temperature & Humidity Control Precision Ultrasonic Spray Coating Line with Multi-Station Spray and Temperature & Humidity Control Precision Ultrasonic Spray Coating Line with Multi-Station Spray and Temperature & Humidity Control Precision Ultrasonic Spray Coating Line with Multi-Station Spray and Temperature & Humidity Control Precision Ultrasonic Spray Coating Line with Multi-Station Spray and Temperature & Humidity Control

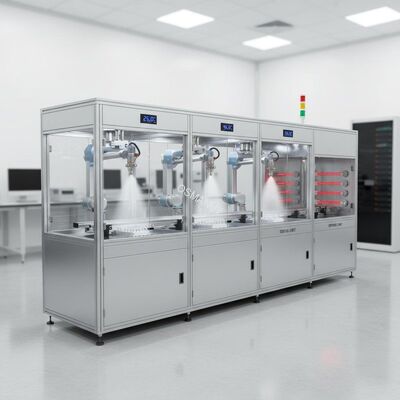

Large Image :  Precision Ultrasonic Spray Coating Line with Multi-Station Spray and Temperature & Humidity Control

Product Details:
Place of Origin: China
Brand Name: OSMANUV
Certification: ISO9001
Model Number: OSM-PT-1320
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: 30~40 Days
Payment Terms: T/T
Supply Ability: Negotiation
Contact Now

Precision Ultrasonic Spray Coating Line with Multi-Station Spray and Temperature & Humidity Control

Description
Conveyor Speed: 0.5 – 15 M/min
Highlight:

Precision ultrasonic spray coating machine

,

Multi-station spray coating system

,

Temperature-controlled spray coating equipment

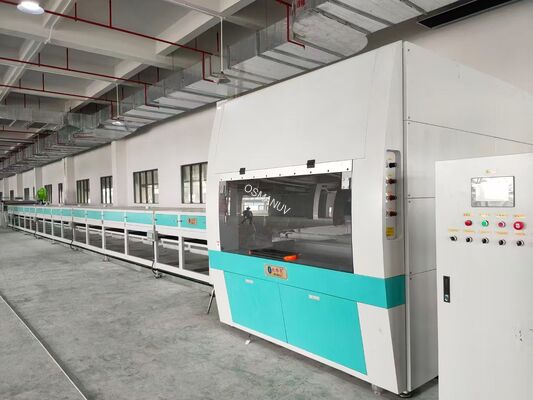

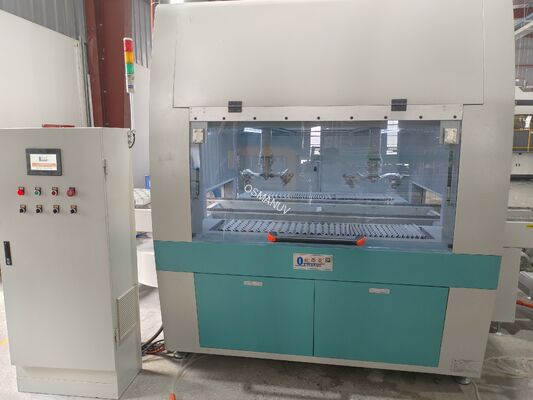

Precision Ultrasonic Spray Coating Line for Delicate Industrial Pulp Packaging
This High-Speed Inline Spray Coating Line is specifically engineered for large-volume internal coating application onto industrial pulp molded packaging, including heavy-duty trays, corner protectors, edge guards, electronics packaging, automotive parts trays, and custom industrial molded fiber components. Unlike batch processing systems, this inline design enables continuous coating of products as they move through the line on a conveyor, significantly increasing throughput and reducing handling labor.

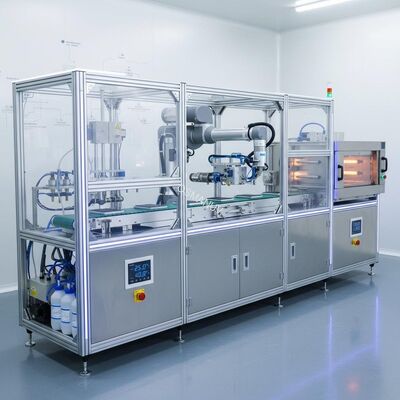

Production Line Composition

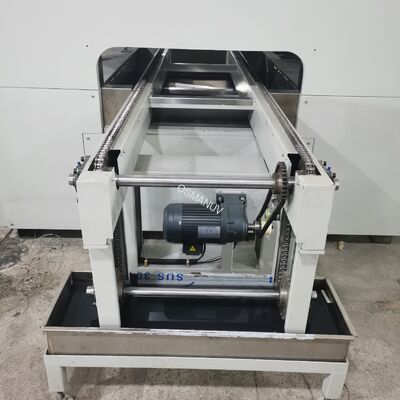

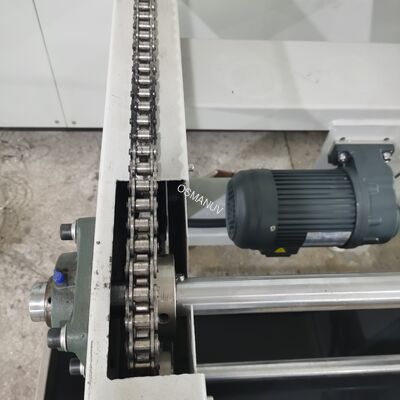

  • Infeed Conveyor — servo-driven with product spacing control, width customizable (400–1600 mm)
  • Pre-treatment Station — dust removal and surface cleaning with ionizing air knife

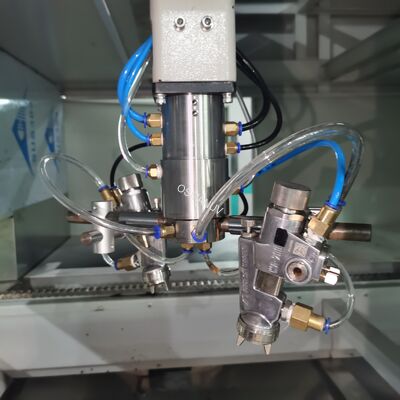

  • Multi-Station Spray Coating Chamber — 2–8 spray stations with independent control, equipped with high-precision air spray or HVLP guns
  • Coating Supply & Circulation System — stainless steel tank with agitator, diaphragm pump, 50–200 µm filtration

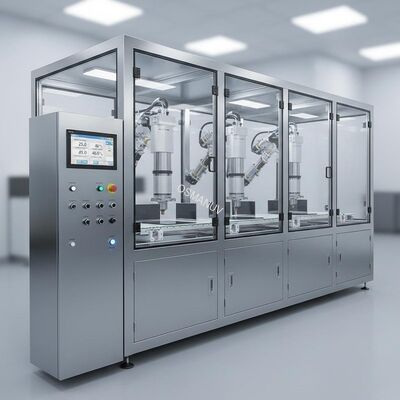

  • Temperature & Humidity Controlled Spray Booth — three-stage filtration system, maintains 18–28°C and 45–65% RH for optimal coating conditions

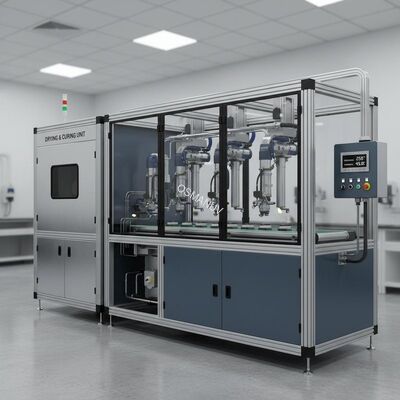

  • Multi-Zone Drying Tunnel — IR, hot air, or UV-LED curing (customizable), each zone independently controlled
  • Exhaust & Paint Mist Treatment System — capture efficiency >98% with dry or wet treatment
  • PLC Control Cabinet — or Allen‑Bradley PLC with 12″ touchscreen HMI
  • Quality Inspection Station — optional vision system for defect detection
  • Outfeed Conveyor with Robotic Stacking — automatic product counting and stacking
All product contact parts are constructed from SUS304 food-grade stainless steel.
Technical Parameters
Parameter Value / Range
Production line type Continuous inline spray coating (single‑pass or multi‑pass, customizable)
Max. working width 400 / 600 / 800 / 1000 / 1200 / 1400 / 1600 mm (customizable)
Product height range 10 – 250 mm (adjustable, motorized option)
Conveyor speed 0.5 – 15 m/min (inverter controlled)
Production capacity 500 – 5000 pcs/hour (product‑dependent, customizable)
Number of spray stations 2 – 8 stations (independently controlled)
Spray nozzle type HVLP / Air spray / Airless / Ultrasonic (customizable)
Coating type Water‑based, bio‑polymer (PLA/PHA), solvent‑based, UV‑curable (customizable)
Coating thickness (dry) 5 – 100 µm (customizable)
Coating weight per product 0.1 – 10 g (programmable)
Coating transfer efficiency ≥85% (HVLP/Ultrasonic)
Spray booth temperature 18 – 28°C (±2°C, PID controlled)
Spray booth humidity 45 – 65% RH (±5%, PID controlled)
Drying method IR / Hot air / UV‑LED / NIR / Combination (customizable)
Drying temperature range 40 – 120°C (zone‑independent)
Curing time 30 – 300 seconds (customizable)
Paint mist capture efficiency ≥98%
VOC emissions <50 mg/m³ (compliant with international standards)
Power supply 380V / 400V / 460V, 50/60Hz, 3‑phase (customizable)
Control system S7‑1200/1500 PLC or Allen‑Bradley, 12″ HMI, recipe storage (200+ recipes)
Data logging USB, Ethernet/IP, Profibus, optional cloud integration
Safety features Explosion‑proof electricals, gas detection, flame suppression, emergency stops
Housing material SUS304 stainless steel (spray chamber), heavy steel frame with anti‑corrosion paint
Compliance CE, ISO9001, optional UL, ATEX
Applications
  • Heavy-duty industrial packaging — corner protectors, edge guards, pallet supports
  • Electronics packaging — anti-static trays for semiconductors, circuit boards, hard drives
  • Automotive parts packaging — molded fiber trays for delicate components
  • Industrial machinery packaging — custom inserts for heavy equipment
  • E-commerce and shipping packaging — molded pulp mailers, protective corner pieces
  • Logistics and warehousing — reusable molded fiber dunnage and separators
  • Bulk industrial containers — molded fiber bins and totes
Customization Options
  • Customizable working width — from 300 mm to 2000 mm
  • Customizable number of spray stations — 2 to 8 stations for single or multi-layer coating
  • Customizable spray nozzle configuration — fixed, reciprocating, or robotic
  • Customizable coating type — water-based, bio-polymer, solvent-based, UV-curable, or specialty functional coatings
  • Customizable coating thickness — from 3 µm to 200 µm
  • Customizable drying system — IR, hot air, UV-LED, NIR, or combination
  • Customizable conveyor type — belt, roller, chain, or vacuum belt for thin products
  • Customizable product handling — manual loading, semi-automatic, or fully automatic with robotic loader/unloader
  • Customizable temperature and humidity range — for specialized coating chemistries
  • Customizable exhaust treatment — dry filter, wet scrubber, or activated carbon
  • Customizable data integration — MES/ERP integration, remote monitoring, cloud reporting
  • Customizable voltage and frequency — for any global location
  • Customizable safety package — ATEX certification, light curtains, area scanners
Key Features
  • High-speed continuous operation — up to 50 cycles per minute, ideal for mass production
  • Multi-station spray capability — primer + topcoat in a single pass
  • Precision coating control — ±2% coating weight accuracy
  • Temperature & humidity controlled spray booth — eliminates environmental variables, ensures consistent quality regardless of factory conditions
  • High transfer efficiency — ≥85% with HVLP/ultrasonic nozzles, reducing coating material waste by up to 30%
  • Low VOC emissions — <50 mg/m³ with integrated exhaust treatment
  • Paint mist capture >98% — clean working environment, regulatory compliant
  • Recipe management — 200+ recipes for instant changeover between products
  • Automated cleaning cycle — programmable nozzle purging and chamber flushing
  • Energy efficient — VFD fans, zone‑controlled drying, standby mode
  • Data traceability — full batch logging for quality assurance and regulatory compliance
  • Easy maintenance — swing‑open spray chamber doors, quick‑release nozzles, accessible filter banks
  • Modular design — add stations or upgrade components without replacing the entire line
Support and Services
  • Lifetime free technical support — phone, email, video call
  • On‑site installation & commissioning — engineers available worldwide
  • Operator & maintenance training — 5 days on‑site training included
  • 2‑year warranty — on all mechanical and electrical components
  • Spare parts supply — guaranteed for 10+ years; 48‑hour express shipping
  • Preventive maintenance program — annual inspection, nozzle calibration, filter replacement
  • Coating formulation consulting — our coating engineers help you select or develop the optimal coating for your product
  • Free sample testing — send your molded fiber products; we provide coating test report with optimized parameters
  • Remote diagnostics — VPN access to PLC for real‑time troubleshooting
Packing and Shipping
  • Packed in export‑grade plywood cases with VCI anti‑rust film, desiccant bags, and foam padding
  • Shipped in modular sections (main frame, spray chambers, conveyor sections, control cabinet) for container loading
  • Sensitive components (nozzles, sensors, PLC) packed separately with anti‑static protection
  • Includes: English manual, CE certificate, electrical schematics, calibration certificates, tool kit, spare parts kit
  • Shipping terms: FOB / CIF / DDP by sea, air freight, or land transport
  • Lead time: 35 days for standard configuration; 45–60 days for fully customized lines
Frequently Asked Questions
Q1: What is the typical production capacity of this inline spray coating line?
A1: Production capacity depends on product size, conveyor speed, and number of spray stations. Typical capacity ranges from 500 to 5,000 pieces per hour. For example, a 600 mm wide line running at 8 m/min can coat approximately 2,000–3,000 small to medium-sized industrial trays per hour. Capacity is fully customizable by adjusting line length and speed.
Q2: Can this line coat both the inside and outside of molded fiber products?
A2: This model is optimized for internal surface coating. For products requiring both internal and external coating, we recommend a two-pass configuration (internal coat, flip, external coat) or consider our double-sided spray line (Product 3).
Q3: How does the temperature and humidity controlled spray booth improve coating quality?
A3: Water-based and bio-polymer coatings are highly sensitive to temperature and humidity. If the environment is too dry, the coating dries too quickly and may crack. If too humid, the coating may not cure properly. The controlled booth maintains optimal conditions (18–28°C, 45–65% RH), ensuring consistent film formation, adhesion, and barrier performance regardless of factory conditions.
Q4: What types of coatings can be used on industrial pulp packaging?
A4: The line is compatible with water-based barrier coatings (acrylic, polyurethane), bio-polymer dispersions (PLA, PHA, PBAT), solvent-based coatings, and UV-curable coatings. For food-contact applications, we recommend PFAS-free, FDA-compliant formulations. For heavy-duty industrial applications requiring high abrasion resistance, polyurethane or epoxy coatings are recommended.
Q5: What is the typical VOC emission level of this system?
A5: With water-based coatings, VOC emissions are typically below 50 mg/m³. The integrated paint mist capture system removes >98% of particulates, and emission concentrations are maintained below 15 mg/m³. For solvent-based coatings, we offer activated carbon filtration to meet local environmental regulations.
