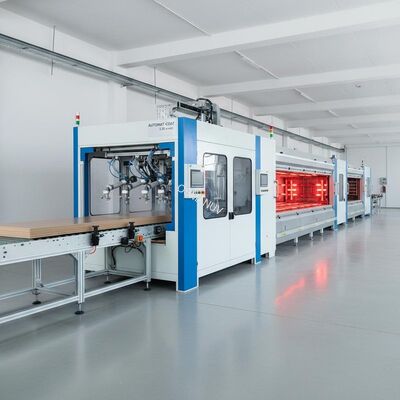

High-Speed Automated Spray Coating Line for Furniture Panels – 5-20 m/min Production with Customizable Gun Configuration for MDF & Particleboard

High-Speed Automated Spray Coating Line for Furniture Panels – 5-20 m/min Production with Customizable Gun Configuration for MDF & Particleboard
High-Speed Automated Spray Coating Line for Furniture Panels – 5-20 m/min Production with Customizable Gun Configuration for MDF & Particleboard
High-Speed Automated Spray Coating Line for Furniture Panels – 5-20 m/min Production with Customizable Gun Configuration for MDF & Particleboard High-Speed Automated Spray Coating Line for Furniture Panels – 5-20 m/min Production with Customizable Gun Configuration for MDF & Particleboard High-Speed Automated Spray Coating Line for Furniture Panels – 5-20 m/min Production with Customizable Gun Configuration for MDF & Particleboard High-Speed Automated Spray Coating Line for Furniture Panels – 5-20 m/min Production with Customizable Gun Configuration for MDF & Particleboard High-Speed Automated Spray Coating Line for Furniture Panels – 5-20 m/min Production with Customizable Gun Configuration for MDF & Particleboard High-Speed Automated Spray Coating Line for Furniture Panels – 5-20 m/min Production with Customizable Gun Configuration for MDF & Particleboard High-Speed Automated Spray Coating Line for Furniture Panels – 5-20 m/min Production with Customizable Gun Configuration for MDF & Particleboard

Large Image :  High-Speed Automated Spray Coating Line for Furniture Panels – 5-20 m/min Production with Customizable Gun Configuration for MDF & Particleboard

Product Details:
Place of Origin: China
Brand Name: OSMANUV
Certification: ISO9001
Model Number: OSM-PT-1320
Document: automatic spray coating mac...ne.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: 30~40 Days
Payment Terms: T/T
Supply Ability: Negotiation
Contact Now

High-Speed Automated Spray Coating Line for Furniture Panels – 5-20 m/min Production with Customizable Gun Configuration for MDF & Particleboard

Description
Minimum Processing Length: 1000mm Materialcompatibility: Paint, Varnish, Adhesive
Machinery Test Report: Provided Applicationarea: Industrial And Automotive Coating
Coating Thickness: 0.1-3mm Control System: PLC/HMI
Coatingthicknessrange: 5-200 Microns Controltype: Digital Control Panel
Highlight:

automated spray coating line for furniture

,

high-speed spray coating machine for MDF

,

customizable spray gun configuration for particleboard

High-Speed Automated Spray Coating Line for Furniture Panels – 5-20 m/min Production with Customizable Gun Configuration for MDF & Particleboard
Product Overview

Our Automated Spray Coating Production Line is a high-efficiency, continuous finishing system specifically engineered for applying uniform surface coatings to flat furniture panels such as MDF, particleboard, plywood, solid wood, and composite boards. Ideal for primers, basecoats, topcoats, UV-curable paints, and water-based coatings.

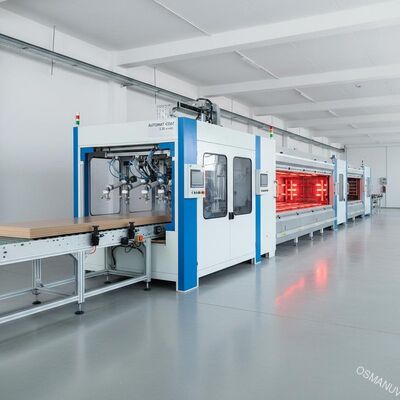

Production Line Composition

Our fully integrated, modular system includes:

  • Automatic Feeding Conveyor for smooth panel infeed
  • Dust Removal & Ionization Unit for optimal coating adhesion

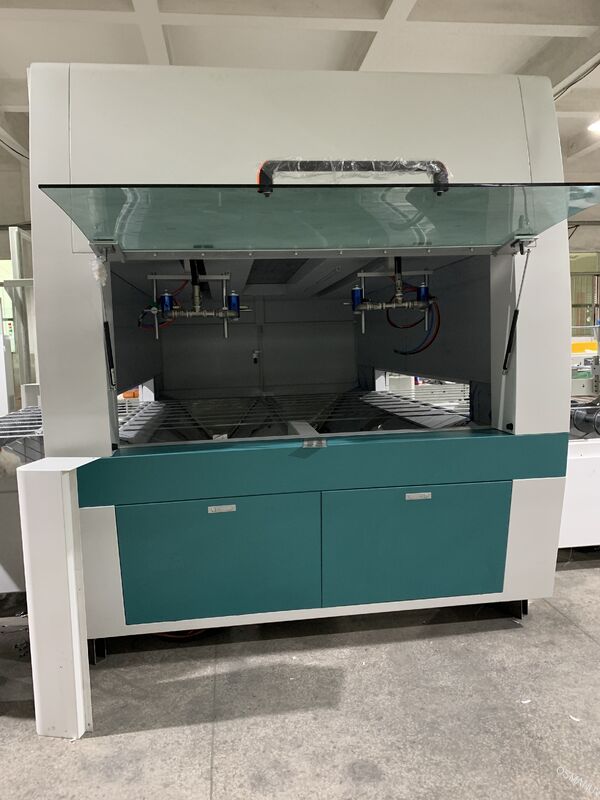

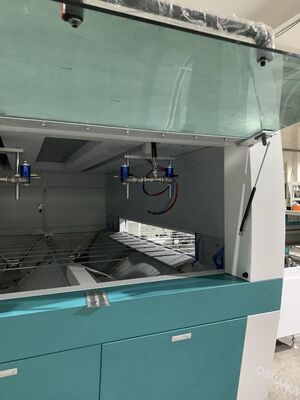

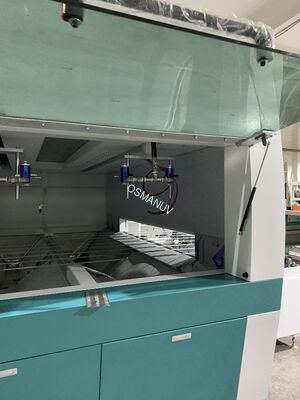

  • Precision Roller Coater / Spray Coating Chamber with reciprocating spray guns
  • Paint Supply & Circulation System with precision pressure regulators
  • Leveling Tunnel for smoother surface before drying
  • Drying/Curing Oven with zoned temperature control
  • Air Cooling Section to reduce panel temperature
  • Automatic Unloading & Stacking Unit
  • Centralized PLC Control Panel with touch-screen HMI

Note: Line configuration is fully customizable to fit your specific production space and output requirements.

Technical Specifications
Parameter Standard Model A High-Speed Model B Customization Range
Effective Working Width 650mm / 1300mm 1300mm / 2000mm Customizable from 650mm to 2500mm
Panel Thickness Range 3 - 80 mm 3 - 120 mm Customizable up to 150mm
Conveyor Speed 1 - 10 m/min (stepless) 5 - 20 m/min (stepless) Customizable speed range (0-30 m/min)
Number of Spray Guns 2 reciprocating guns 4-8 reciprocating guns Customizable from 2 to 12 guns
Coating Thickness Control 5 - 50 microns (adjustable) 5 - 80 microns (adjustable) Customizable via PLC & gun parameters
Drying/Curing Method IR drying oven (3 zones) IR + UV curing (combination) Customizable (IR, UV, convection, or hybrid)
Control System PLC + HMI (Delta) PLC + HMI (Mitsubishi) with recipe storage Customizable (Mitsubishi, Delta, etc.)
Applications
  • Panel Furniture: MDF, particleboard, plywood, solid wood panels
  • Decorative Boards: Wall panels, ceiling panels, door skins
  • Engineered Flooring: Priming and topcoating of WPC or solid wood flooring
  • Kitchen Cabinets & Bathroom Vanities
  • Office Furniture: Desktops, partition panels, storage units
  • Musical Instruments & Craft Items
Key Features
  • Reciprocating Spray Technology with servo-driven rail
  • High Transfer Efficiency saving 20-30% paint compared to manual spraying
  • PLC Precision Control with up to 100 recipe storage
  • Automatic Paint Circulation for consistent viscosity
  • Zoned Drying Control for optimal curing
  • Energy-Saving Design with insulated oven panels
  • Rapid Color Change capability (5-10 minutes)
  • Comprehensive Safety systems and easy maintenance
  • Dust-Free Environment with enclosed spray chamber
Support and Services
  • Pre-Sales Consultation and sample testing
  • Layout Design with 2D/3D drawings
  • Installation & Commissioning by experienced technicians
  • Comprehensive Training for operators and maintenance staff
  • 12-month warranty for mechanical parts, 6 months for electrical components
  • 24/7 Remote Support via phone, email, or video call
  • Guaranteed availability of genuine spare parts
Frequently Asked Questions
Q1: What types of coatings can this automated line apply?
A: The line is compatible with most wood coatings including water-based, solvent-based, UV-curable, PU, NC, and acid-curing paints. Components can be customized based on your specific coating chemistry.
Q2: How much paint can I save compared to manual spraying?
A: Our automated systems typically achieve 70-80% transfer efficiency, meaning 20-30% less paint waste compared to manual spraying.
Q3: How long does it take to change colors?
A: With optional automatic flushing system: 5-10 minutes. Without flushing system: 15-20 minutes for manual cleaning.
Q4: Can the line be upgraded later for higher speed or additional functions?
A: Absolutely. The modular design allows future upgrades such as adding more spray guns, extending the drying oven, or integrating additional modules. Discuss your future plans for a customizable upgrade path.
