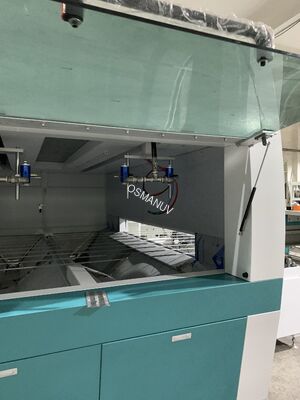

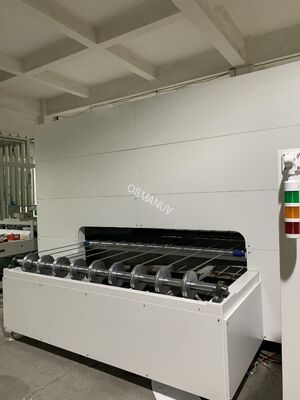

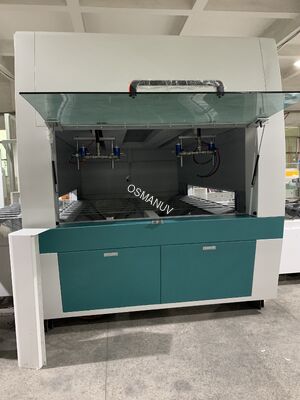

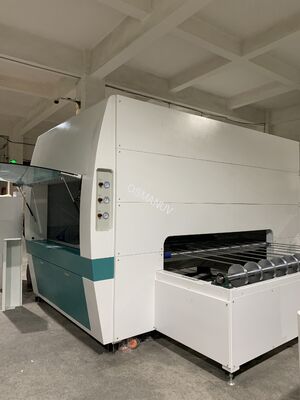

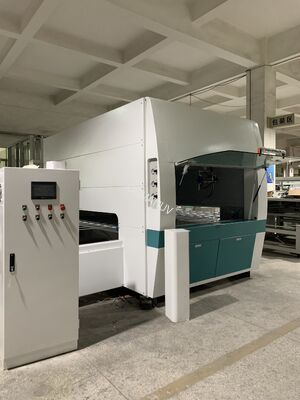

Precision 360° Internal Spray Coating Machine for Pulp Molding Industrial Containers & Furniture Components - Customizable Coating Thickness 5-50 microns

Precision 360° Internal Spray Coating Machine for Pulp Molding Industrial Containers & Furniture Components - Customizable Coating Thickness 5-50 microns
Precision 360° Internal Spray Coating Machine for Pulp Molding Industrial Containers & Furniture Components - Customizable Coating Thickness 5-50 microns
Precision 360° Internal Spray Coating Machine for Pulp Molding Industrial Containers & Furniture Components - Customizable Coating Thickness 5-50 microns Precision 360° Internal Spray Coating Machine for Pulp Molding Industrial Containers & Furniture Components - Customizable Coating Thickness 5-50 microns Precision 360° Internal Spray Coating Machine for Pulp Molding Industrial Containers & Furniture Components - Customizable Coating Thickness 5-50 microns Precision 360° Internal Spray Coating Machine for Pulp Molding Industrial Containers & Furniture Components - Customizable Coating Thickness 5-50 microns Precision 360° Internal Spray Coating Machine for Pulp Molding Industrial Containers & Furniture Components - Customizable Coating Thickness 5-50 microns Precision 360° Internal Spray Coating Machine for Pulp Molding Industrial Containers & Furniture Components - Customizable Coating Thickness 5-50 microns Precision 360° Internal Spray Coating Machine for Pulp Molding Industrial Containers & Furniture Components - Customizable Coating Thickness 5-50 microns

Large Image :  Precision 360° Internal Spray Coating Machine for Pulp Molding Industrial Containers & Furniture Components - Customizable Coating Thickness 5-50 microns

Product Details:
Place of Origin: China
Brand Name: OSMANUV
Certification: ISO9001
Model Number: OSM-PT-1320
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: 30~45 Days
Payment Terms: T/T
Supply Ability: Negotiation
Contact Now

Precision 360° Internal Spray Coating Machine for Pulp Molding Industrial Containers & Furniture Components - Customizable Coating Thickness 5-50 microns

Description
Feeding Size: 1320mm Spray Width: 1320mm
Coating Thickness: 3-200mm Spray Gun Diameter: 1.0-1.5mm
Electric Power: 157kw Core Components: PLC, Bearing, Motor, Pump
Spraymethod: Air Spray, Electrostatic Spray Coating Material: Powder, Liquid, Etc.
Highlight:

360° internal spray coating machine

,

pulp molding spray coating machine

,

customizable thickness spray coating machine

Precision 360° Internal Spray Coating Machine
Production Line Overview
Our Internal Spray Coating Production Line is a fully integrated, modular system designed for seamless workflow across furniture panels and molded pulp products. The standard production line includes:
  • Automatic Feeding System: Vacuum suction or conveyor feeding for furniture panels; robotic pick-and-place for molded pulp products
  • Dust Removal & Ionization Unit: Eliminates surface particles and static charge for optimal coating adhesion
  • Core Spray Coating Station: Reciprocating spray for furniture panels (2-8 guns) or rotary system for molded pulp products (12-24 stations)
  • Precision Coating Delivery: Pneumatic diaphragm pumps with pressure stabilization
  • Drying/Curing Tunnel: Modular IR or convection drying with zoned temperature control (ambient to 120°C)
  • Automatic Unloading & Stacking: Organized collection of finished products
  • Centralized PLC Control Panel: Touch-screen HMI with Mitsubishi or Delta components for recipe management
Note: Line configuration is fully customizable to fit your specific factory space and production volume.
Product Description
This high-precision, automated solution applies uniform functional coatings to internal and external surfaces of furniture panels and molded pulp products.
Furniture Panel Applications: Utilizes reciprocating spray technology for even coverage on flat panels, cabinet doors, and decorative boards. Handles solid wood, MDF, particleboard, and composite materials.

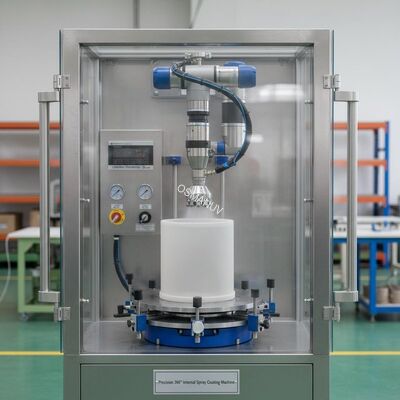

Molded Pulp Packaging: Employs advanced rotary/spin-coating technology with custom-engineered fixtures. Centrifugal force ensures even coating distribution across complex interior geometries, including deep corners and sidewalls.
Ideal for applying waterproof, oil-proof, high-temperature resistant (exceeding 100°C), and surface hardening coatings that meet food safety standards. Guarantees consistent coating weight (5-50 microns), eliminates manual errors, and reduces material waste with coating utilization reaching nearly 100%.
Technical Parameters
Parameter Furniture Panel Configuration Molded Pulp Configuration Customization Range
Number of Stations Continuous conveyor 12-24 stations (rotary) Customizable from 1 to 24+ stations
Production Output 2800-3000 m²/8 hours 1000-6000 units/hour Fully Customizable based on product size
Effective Working Width Up to 2020mm N/A (fixture-based) Customizable from 650mm to 2000mm+
Coating Thickness 5-50 microns (adjustable) 5-50 microns (adjustable) Customizable dispense volume
Spray System Reciprocating guns (2-8 pcs) Rotary/spin coating with precision nozzles Customizable gun quantity and type
Control System PLC with HMI (Mitsubishi/Delta) PLC with HMI (Mitsubishi) Customizable software, data logging
Applications
Furniture & Wood Products:
  • Panel furniture (office, kitchen, bathroom)
  • Engineered flooring
  • Decorative wall panels and doors
  • Window frames and moldings
Molded Pulp & Packaging:
  • Food containers (bowls, plates, trays, lunch boxes)
  • Disposable tableware (cups, soup containers)
  • Industrial protective packaging
  • Agricultural trays
Additional Materials: Plastic products, aluminum composite panels, glass and decorative building materials
Customization Options
  • Custom Fixture Design: Holding fixtures tailored to your product's exact internal geometry
  • Spray Gun Configuration: Customizable number and arrangement of guns (2-8) based on product complexity
  • Station Quantity: Customizable from single-station R&D units to high-speed 24-station rotary systems
  • Coating Method: Customizable selection of reciprocating spray, rotary spin coating, or combination
  • Coating Type Compatibility: Systems configured for water-based, UV-curable, PU varnishes, and eco-friendly coatings
  • Material Construction: Choice of cold-rolled steel with electrostatic paint or SUS 304 stainless steel
Key Features
  • Dual-Market Versatility: One system configured for both furniture panels and molded pulp packaging
  • 360° Uniform Coverage: Spin technology ensures seamless coating on complex 3D shapes with deep recesses
  • Precision & Repeatability: PLC-controlled systems ensure consistent coating weight, reducing reject rates
  • Material Waste Reduction: Automated application minimizes overspray; coating utilization up to 100%
  • Eco-Friendly Operation: Compatible with water-based and low-VOC coatings
  • Stainless Steel Construction: SUS 304 for corrosion resistance and food-grade compliance
Support and Services
  • Pre-Sales Engineering Consultation: Analysis of your specific samples and coating requirements
  • Sample Testing: Test your products in our demonstration center
  • Installation & Commissioning: On-site setup, calibration, and integration
  • Comprehensive Training: Hands-on training for operators and maintenance staff
  • Warranty: 12-month warranty on whole machine (1 year mechanical, 6 months electrical)
  • Remote Support: 24/7 online technical support
  • Lifetime Support: Lifelong consultation and spare parts availability
Packing and Shipping
Packing: All system modules securely packed in custom-sized, reinforced export wooden crates with waterproof lining and shock-absorbing materials.
Shipping Details:
  • Port of Loading: Shenzhen / Guangzhou, China
  • Lead Time: 25-40 working days after finalization of customization
  • Shipping Method: Sea (FCL/LCL), air freight, or express courier
  • Shipping Terms: FOB, CIF, CNF, DDP - customizable based on location
Frequently Asked Questions
Q: What is the difference between spray coating and spin coating for molded pulp?
A: Spray coating uses compressed air to atomize coating; spin coating uses centrifugal force for even distribution on complex shapes. Our lines can be customized with either technology based on your product requirements.
Q: Can this line handle different product shapes on the same production line?
A: Yes. The key is customizable fixtures. Changeover between products involves swapping fixtures and loading a different PLC recipe, completed in minutes.
Q: What types of coatings can be applied?
A: The system is compatible with water-based acrylics, PU varnishes, UV-curable coatings, PFAS-free oil-barrier coatings, and bio-polymer films. Fluid path components can be customized for specific viscosities.
Q: How is coating thickness controlled?
A: Thickness is controlled by programmable parameters: spray pressure, rotational speed, conveyor speed, and material viscosity. All parameters stored in PLC for repeatability (5-50 microns range).
Q: What is the warranty period?
A: Standard warranty is 12 months for the whole machine (1 year mechanical, 6 months electrical components).
