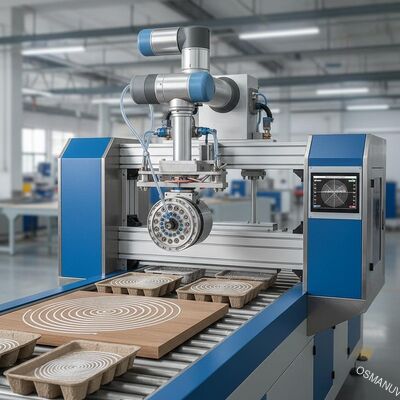

360° Reciprocating Spraying Machine for Molded Pulp & Furniture Board Surface Coating - Customizable Spray Path

Our 360° Reciprocating Spraying Machine is typically integrated as a core module within an automated surface finishing line. The standard production line composition includes:

1. Automatic Feeding Conveyor: For continuous input of molded pulp products or furniture panels.

2. Workpiece Positioning System: Ensures consistent placement and orientation for accurate spraying.

3. 360° Reciprocating Spraying Machine (This Unit): The core equipment for applying coatings from all angles.

4. Flash-Off Tunnel: Allows solvents to evaporate before curing/drying.

5. Drying/Curing Oven: Such as IR oven or UV curing machine for paint hardening.

6. Cooling Section: Reduces product temperature after drying.

7. Automatic Stacking/Collecting Unit: For organized output of finished products.

Note: The configuration can be customized based on whether you require inline or offline operation, and the specific layout of your workshop.

This 360° Reciprocating Spraying Machine is specifically engineered for automated surface coating of complex-shaped workpieces such as molded pulp products (egg trays, fruit trays, industrial packaging) and furniture components (chair legs, table tops, door frames). Utilizing advanced servo-driven reciprocating mechanisms and 360-degree rotatable spray guns, it ensures complete and uniform coverage on all surfaces, including edges, corners, and recessed areas. The machine is ideal for applying water-based paints, oil-based coatings, and protective sealants. Equipped with a user-friendly PLC control system, it significantly reduces paint waste, improves production efficiency, and ensures consistent coating quality. The machine is fully customizable to accommodate different workpiece sizes, shapes, and production speeds.

The following table outlines the standard specifications for our 360° Reciprocating Spraying Machine. Customization is available to meet unique production requirements, including variable spray gun configurations and special workpiece handling systems.

This 360° reciprocating spraying machine is widely used in various industries requiring uniform surface coating:

• Molded Pulp Products: Spraying water-resistant coatings, color paints, or antibacterial agents on egg trays, fruit trays, cup carriers, and industrial pulp packaging.

• Furniture Manufacturing: Coating of solid wood furniture components (chairs, legs, frames), MDF boards, door skins, and decorative panels.

• Automotive Parts: Spraying of interior trim components and small plastic parts.

• Electronics Housing: Application of protective and decorative coatings on electronic enclosures.

• Construction Materials: Sealing and painting of architectural decorative elements.

We understand that every application has unique requirements. Therefore, our 360° reciprocating spraying machines are highly customizable:

1. Spray Gun Configuration: Customizable number and arrangement of spray guns (reciprocating, fixed, or combination) to match your workpiece complexity .

2. Workpiece Handling: Option to choose between belt conveyor, chain conveyor, or rotary table systems based on your product shape and weight.

3. Control Programming: Customizable spray path and timing programs for different product models, stored in PLC memory for quick changeover.

4. Paint Delivery System: Selection of pressure tanks, circulation systems, or diaphragm pumps based on paint viscosity and type.

5. Enclosure & Filtration: Customizable spray booth enclosure with water curtain or dry filter systems to meet local environmental regulations.

6. Material Construction: Choice of stainless steel or mild steel construction for wet areas to ensure durability.

• 360° Continuous Rotation: Spray guns rotate 360 degrees to reach all surfaces of complex 3D workpieces, eliminating死角 and ensuring complete coverage.

• Servo-Driven Precision: High-precision servo motors control reciprocating motion and gun rotation for consistent, repeatable spray patterns.

• Intelligent PLC Control: User-friendly touch screen interface allows operators to easily adjust spray parameters, save recipes, and monitor production status.

• Quick Color Change System: Optional purge and flush system enables rapid color changes with minimal downtime and paint waste.

• Anti-Drip Nozzle Design: Special anti-drip spray gun tips prevent paint waste and contamination of workpieces.

• Modular Design: Easy access to components for maintenance and cleaning, reducing downtime and maintenance costs .

• Energy Efficient: Optimized spray patterns reduce overspray, saving paint and reducing VOC emissions.

• Pre-Sales Support: Free sample testing in our demo lab. We can spray your products to demonstrate coating quality and efficiency.

• After-Sales Service:

  • 24/7 online technical support via phone, email, or video call.

  • On-site installation guidance and commissioning available.

  • Provision of detailed user manuals, wiring diagrams, and maintenance guides.

• Warranty: 12-month warranty on the whole machine, with spare parts available for quick delivery .

• Training: Free operator training at our facility or on-site, covering machine operation, parameter adjustment, and routine maintenance .

• Packing: To ensure safe transit, the machine is wrapped in protective stretch film, then packed in a reinforced export wooden crate. This method prevents damage during sea or land transport.

• Shipping:

  • Port of Loading: Shenzhen / Guangzhou / Shanghai (as per client request).

  • Lead Time: Usually 20-30 working days after confirmation of order and customization details.

  • Shipping Method: Available by sea (FCL/LCL), air freight, or express courier for spare parts.

Q1: Can this machine handle irregularly shaped molded pulp products like egg trays?
A: Yes, absolutely. Our 360° reciprocating spraying machine is specifically designed for complex shapes. The 360-degree rotating guns and programmable spray paths ensure that even recessed areas and edges of molded pulp products receive uniform coating.

Q2: How does the machine prevent overspray and paint waste?
A: The machine features precision servo control of gun movement, ensuring paint is only applied where needed. Additionally, the anti-drip nozzle design prevents dripping when guns are not in spraying position . The spray booth can also be equipped with water curtain or dry filter recovery systems to capture overspray.

Q3: Can I spray both water-based and solvent-based paints with the same machine?
A: Yes, the machine is compatible with various paint types including water-based, solvent-based, and UV coatings . However, the material selection for pumps, tanks, and piping may need to be customized based on the specific paint chemistry.

Q4: How do I clean the machine when changing colors?
A: For quick color changes, we recommend the optional automatic purge and flush system. For manual cleaning, the spray guns and paint lines are designed for easy disassembly and cleaning, minimizing downtime .

Q5: What is the typical payback period for this equipment?
A: This depends on your production volume and labor costs. Typically, customers see payback within 12-18 months due to reduced paint consumption (saving 20-30% compared to manual spraying), improved consistency reducing reject rates, and labor savings.

Q6: Can the machine be integrated with my existing conveyor system?
A: Yes, the machine's conveyor height and speed can be customized to match your existing production line. Please provide your current line specifications during consultation.
