Precision Roller Coating Machine for High-Gloss & Uniform Surface Coating

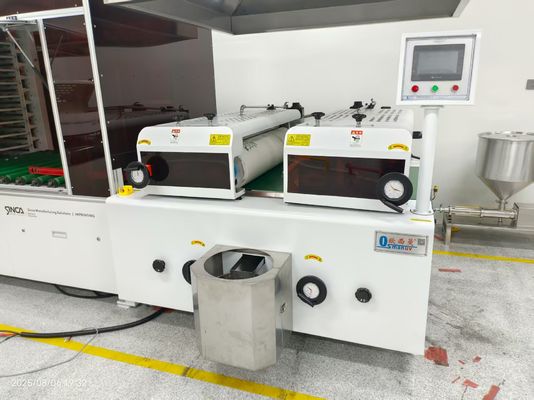

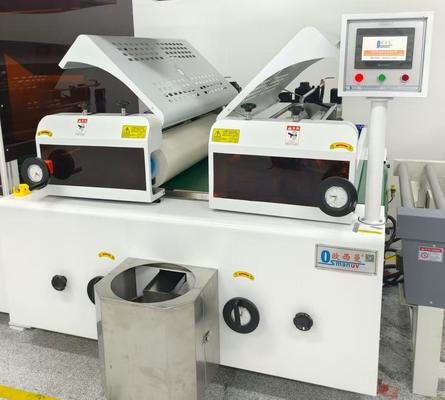

Large Image : Precision Roller Coating Machine for High-Gloss & Uniform Surface Coating

Product Details:

Place of Origin:	China
Brand Name:	OSMANUV
Certification:	ISO9001
Model Number:	OSM-GT-1320
Document:	Two-roller coating machine.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Wooden Box
Delivery Time:	30~45 Days
Payment Terms:	T/T
Supply Ability:	Negotiation

Contact Now

Precision Roller Coating Machine for High-Gloss & Uniform Surface Coating

Description

Coating Safety:	High Safety	Automatic Grade:	Automatic,Semi-Automatic,manual,Other
Power:	10KW	Effecive Width:	1320mm
Coating Type:	Double Roller	Coating Cost:	Low Cost
Convey Direction:	From Left To Right	Control System:	PLC
Highlight:	high-gloss roller coating machine , uniform surface coating equipment , precision roller coating equipment

Precision Roller Coating Machine for High-Gloss & Uniform Surface Coating

Our Precision Roll Coater is engineered to apply ultra-smooth and uniform coatings on flat substrates. Utilizing a precision-ground roller system and adjustable micrometer settings, it achieves a flawless film with exceptional consistency in thickness and gloss. Ideal for applying topcoats, varnishes, or primers where superior surface quality is critical.

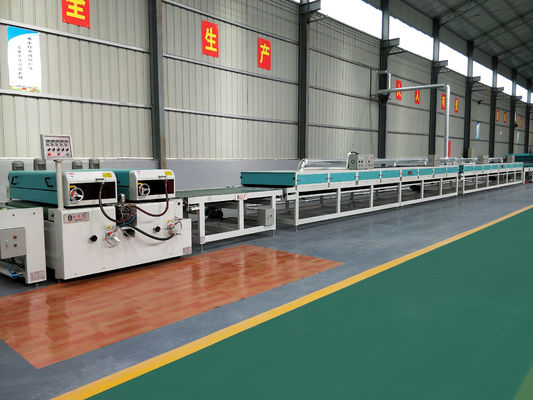

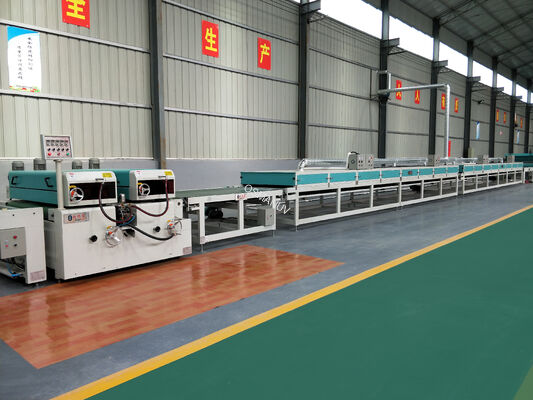

Production Line Composition

Automatic Feeding System: Belt or roller conveyor for consistent panel input
Pre-Coating Surface Cleaner (Optional): Ionizing air bar or brush cleaner to remove dust
Precision Roll Coating Unit: Core module with precision-ground coating roller, doctor roller, and backup roller
Leveling & Drying Section (Optional): Short infrared or hot air flow zone for initial coating settling
Automatic Unloading & Stacking System
Centralized Control Cabinet with HMI

Technical Specifications

Category	Parameter	Specification / Description
Core Performance	Coating Width	Customizable (Standard models: 600mm, 1300mm, 1600mm)
	Substrate Thickness Range	1mm - 80mm
	Coating Thickness Range	5 - 150 µm (wet film), adjustable
	Film Uniformity	> 95% across the entire panel width
Mechanical Specs	Roller Material	Precision-ground steel chrome-plated roller, polyurethane applicator roller (Customizable)
	Roller Diameter	Coating Roller: Ø150mm; Doctor Roller: Ø100mm
	Machine Dimensions (L×W×H)	Approx. 3500mm × 2000mm × 1800mm (Customizable per width)
	Construction Material	Main frame: carbon steel; Contact parts: Stainless steel or chrome-plated
Electrical & Control	Drive Motor Power	2.2 kW variable speed motor
	Conveyor Speed	5 - 30 meters/minute, stepless adjustment
	Control System	PLC with Touchscreen HMI, recipe storage function
	Power Supply	380V / 50Hz / 3Phase (or Customizable to local standards)

Applications

Applying high-gloss lacquer or varnish on furniture panels and cabinet doors
Uniform primer or topcoat application on metal sheets
Decorative coating on acrylic or composite panels
Applying adhesive layers for laminating processes

Key Features

Superior Finish: Micro-adjustable roller gap ensures perfectly even and smooth coating layer
High Transfer Efficiency: Precise metering minimizes coating waste compared to spraying
User-Friendly: Easy-to-clean design and intuitive touchscreen controls with saved parameter recipes
Robust Construction: Heavy-duty frame ensures stability and longevity in industrial environments

Customization Options

Coating Width: Can be manufactured to your specific panel size
Roller Configuration: Options include different roller materials (silicone, rubber) and hardness
Integration: Can be customized to connect with existing drying tunnels, sanding machines, or feeding systems
Special Features: Options may include double-sided coating, UV curing module, or specific safety enclosures

Support and Services

Pre-Sale: Technical consultation and layout planning
Installation & Training: On-site commissioning and operator training
After-Sales: 12-month warranty, lifelong technical support, and readily available spare parts supply

Packing and Shipping

Packing: Machine disassembled into key modules, securely fastened in wooden crate with waterproof lining
Shipping: Shipped via sea freight (FOB/CIF terms available) or air freight for urgent needs
All necessary documentation provided

Frequently Asked Questions

Q1: What is the main advantage of roll coating over spraying?

A1: Roll coating offers much higher material transfer efficiency (over 90%), providing significant cost savings on coatings. It also delivers a more uniform film thickness and is cleaner (no overspray).

Q2: Can this machine handle both water-based and solvent-based coatings?

A2: Yes, the standard configuration is compatible with both. For highly aggressive solvents, we recommend specifying optional customized roller materials (like certain grades of polyurethane or silicone) during ordering.

Q3: How do we control the coating thickness precisely?

A3: Thickness is controlled by the precise micrometer adjustment of the gap between the doctor roller and the coating roller, combined with the viscosity of the coating and the conveyor speed. The relationship can be calibrated.

Q4: What is the lead time for a customized width machine?

A4: For non-standard widths, the lead time is typically 8-10 weeks after order confirmation, allowing for manufacturing and testing.

Q5: Is training provided for machine maintenance?

A5: Yes, comprehensive training covers routine operation, daily maintenance, and basic troubleshooting for your technicians during commissioning.
