Precision Laboratory Roll Coating Machine for Material R&D and Pilot Production

Precision Laboratory Roll Coating Machine for Material R&D and Pilot Production
Precision Laboratory Roll Coating Machine for Material R&D and Pilot Production
Precision Laboratory Roll Coating Machine for Material R&D and Pilot Production Precision Laboratory Roll Coating Machine for Material R&D and Pilot Production Precision Laboratory Roll Coating Machine for Material R&D and Pilot Production Precision Laboratory Roll Coating Machine for Material R&D and Pilot Production Precision Laboratory Roll Coating Machine for Material R&D and Pilot Production Precision Laboratory Roll Coating Machine for Material R&D and Pilot Production Precision Laboratory Roll Coating Machine for Material R&D and Pilot Production

Large Image :  Precision Laboratory Roll Coating Machine for Material R&D and Pilot Production

Product Details:
Place of Origin: China
Brand Name: OSMANUV
Certification: ISO9001
Model Number: OSM-GT-1320
Document: Two-roller coating machine.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: 30~45 Days
Payment Terms: T/T
Supply Ability: Negotiation
Contact Now

Precision Laboratory Roll Coating Machine for Material R&D and Pilot Production

Description
Type: Drying Machine Application: Commodity
Packaging Material: Wood,Plastic,Metal,Paper,Glass Glass Thickness: 2mm
Spray Gun: Adopt American GRACO Automatic Spray Gun Effective Working Width: 1320mm
Productname: Roller Coating Equipment Rollermaterial: Stainless Steel
Highlight:

laboratory roll coating machine for R&D

,

precision roll coating equipment for pilot production

,

material R&D roller coating machine

Precision Laboratory Roll Coating Machine for Material R&D and Pilot Production

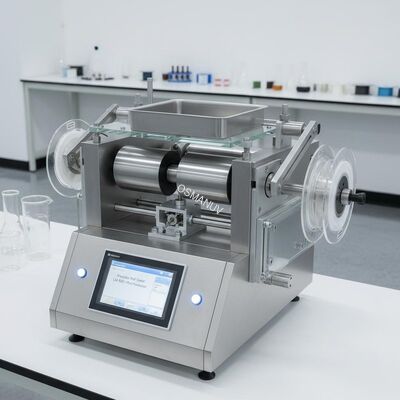

Product Overview
Designed for researchers and process developers, this lab-scale coater enables precise replication of industrial roll coating processes. Its modular design allows for rapid testing of coating parameters, substrate compatibility, and fluid formulations with minimal material waste, accelerating the journey from lab to production.
Production Line Composition
  • Manual Unwind/Rewind Stations
  • Fully Customizable Coating Head Module
  • Adjustable Doctor Blade Assembly
  • Heated Platen (RT-200°C)
  • Benchtop Frame
  • Optional add-ons: UV Curing Lamp, Thickness Measurement Gauge, and Environmental Chamber
Technical Specifications
Parameter Category Specification
Max. Substrate Width 200mm, 300mm (Standard)
Coating Length Up to 450mm per pass
Wet Film Thickness Range 6μm - 500μm (depending on applicator)
Coating Speed 2 - 1000 mm/sec (digitally controlled)
Applicator Roller Options Precision Smooth Rod, Wire-Wound Meyer Rod, Custom Engraved Anilox Roll
Heating System Customizable Temperature-Controlled Platen
Control Interface Digital Speed Control & Temperature Display
Machine Footprint Compact benchtop design (approx. 1200mm L x 600mm W)
Applications
Perfect for R&D, QC, and small-batch production of: Functional coatings on metal shims, adhesion promoters on PVC sheets, conductive inks on flexible films, pressure-sensitive adhesives, and novel coating formulations.
Customization Options
  • Coating Head: Choose from slot die, Mayer rod, or anilox roll systems for your specific fluid
  • Substrate Handling: Configure for rigid sheets, flexible rolls, or custom fixture plates
  • Curing: Customizable heating zones, UV lamp integration, or IR modules
  • Data Acquisition: Optional integration of sensors for thickness, gloss, or temperature logging
Key Features
  • Modular & Upgradeable: Start with a basic setup and add modules (like UV curing) as research needs evolve
  • Precision Control: Digital drive ensures repeatable coating speed for reliable experimental data
  • Minimal Waste: Requires only a small volume of coating fluid (as low as 5ml), ideal for expensive experimental materials
  • Easy Operation & Cleaning: Designed for quick changeover between tests and straightforward maintenance
Support and Services
  • Pre-Sales Consultation: Technical discussion to configure the optimal module set for your research goals
  • Installation & Training: Comprehensive setup and operational training via video call or on-site
  • Technical Support: Dedicated support for researchers, including application advice
Packing and Shipping
The machine is shipped fully assembled in a custom foam-insulated cardboard box for protection. Shipped globally via express courier (DHL, FedEx) for fast delivery to your lab.
Frequently Asked Questions
Q: Can this machine simulate both forward and reverse roll coating?
A: Yes, by selecting different customizable coating head modules (e.g., a precision gap-controlled roll head), you can simulate various industrial coating methods.
Q: What file formats do you accept for custom engraving on anilox rollers?
A: We can work with standard vector files (.ai, .eps) or CAD drawings to produce rollers with custom line screens and volumes for your research.
Q: Is it suitable for coating slurries or pastes with high solid content?
A: Absolutely. The system can be configured with a heavy-duty, customizable paste coating head designed for high-viscosity, abrasive materials.
