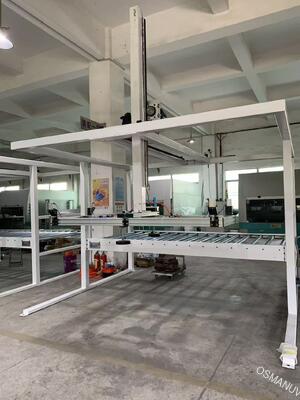

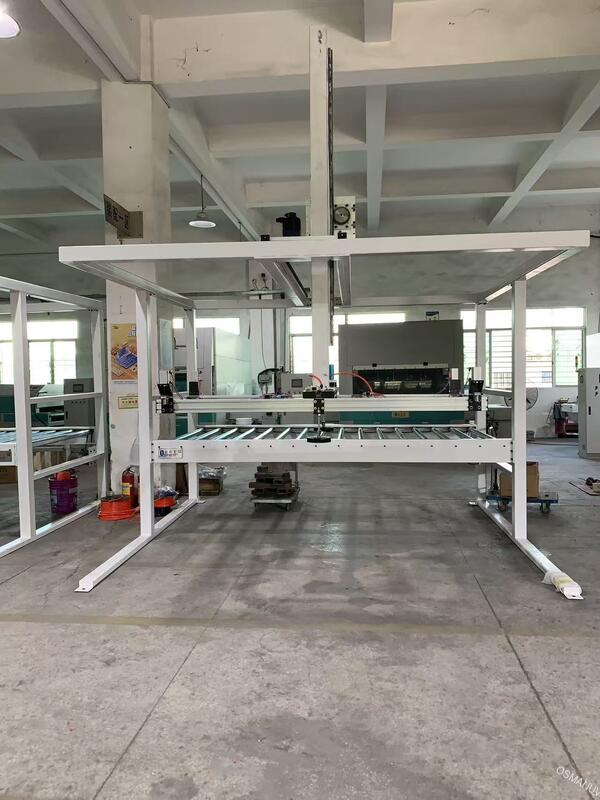

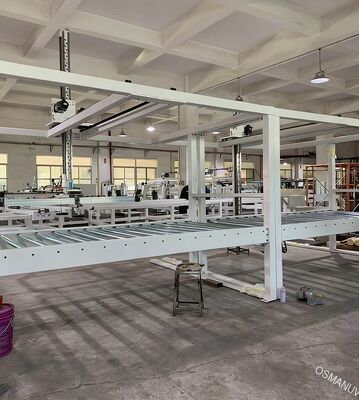

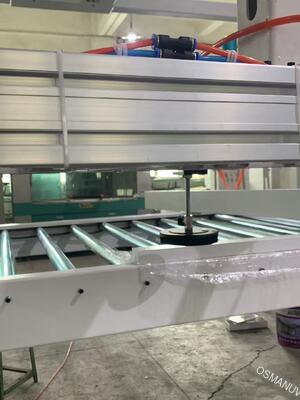

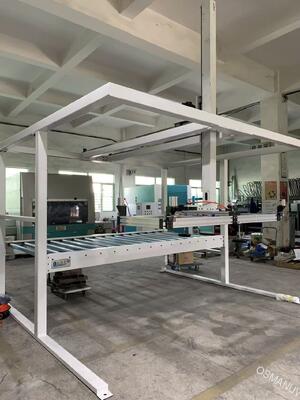

Precision 5-Axis Gantry Robot for Sensitive Component Handling - CNC Load/Unload Automation
Product Details:
| Place of Origin: | China |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-GR-1320 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 30~45 Days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Frame Material: | Stainless Steel / Carbon Steel | Application: | Material Handling, Packaging, Assembly Lines |
|---|---|---|---|
| Conveying Direction: | From Left To Right | Belt Material: | PVC, Rubber, PU |
| Print Material: | PLA , ABS | Customized: | Yes |
| Net Paper Width: | 1320mm | Material: | Stainless Steel & PVC |
| Highlight: | 5-axis gantry robot for CNC automation,precision robot for sensitive component handling,CNC load/unload automation with conveyor belt |
||
Product Description
This precision 5-axis gantry robot is designed for handling delicate, high-value components in industries like electronics, medical devices, and optics. It provides micron-level accuracy and is available in cleanroom-compatible versions, ensuring gentle and precise manipulation without contaminating sensitive products.
A high-accuracy gantry system built with minimal particle generation materials, servo-driven linear motors, a 5-axis robot arm mounted on the Z-axis, vision system for guidance, and a control system compatible with cleanroom protocols.
| Parameter | Specification |
|---|---|
| Model | GPR-P Series |
| Axis of Motion | 5-Axis (X, Y, Z, R, Tilt) |
| Positioning Repeatability | ± 0.02 mm |
| Drive Technology | High-Performance Linear Motors |
| Cleanroom Rating | Optional ISO Class 5 (ISO 14644-1) |
| Control System | Advanced Motion Controller with Vision Integration |
| Payload Capacity | Up to 10 kg (Customizable) |
| Guide Rail Material | Stainless Steel or Ceramic (Customizable) |
- Loading/unloading wafers, PCBs, and micro-components
- Automated assembly of medical devices and optical instruments
- Precision testing and inspection stations
- Sub-Millimeter Accuracy: Linear motors and high-resolution encoders enable unmatched precision
- Cleanroom Compatible: Designed to meet stringent cleanliness standards
- Advanced Vision Guidance: Ensures accurate pick-and-place even with product position variation
- Gentle Handling: Programmable force control prevents damage to delicate items
- Data Logging: Tracks process data for full traceability and SPC
This system is highly customizable for advanced applications. We can customize the level of precision, the cleanroom certification, the integration of specific vision systems, and develop specialized soft-contact grippers for fragile parts.
We offer extensive application engineering support, on-site calibration, validation documentation (IQ/OQ), and specialized cleanroom installation procedures.
The system is shipped in a cleanroom bag, purged with inert gas, and secured in a custom-designed crate to prevent contamination and damage during transit.
