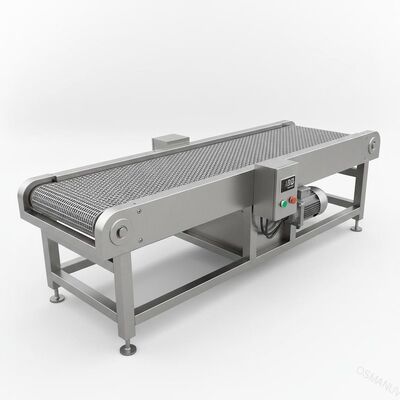

W1320mm 1m/Min Stainless Steel Conveyor Belt Machine / Mesh Belt Conveyor
W1320mm Conveyor Belt Machine
,1m/Min Conveyor Belt Machine
,W1320mm Mesh Belt Conveyor
Stainless steel mesh belt conveyor designed for efficient material handling in various industrial applications.
| 1 | Product Name | Stainless Steel Mesh Belt Conveyor |
| 2 | Model | OSM-PV-1320 Type |
| 3 | Applications | Suitable for panel furniture, calcium silicate board, solid wood composite floor, flat board crafts, bamboo and wood curtains, and workpiece transportation for water operations |
| 4 | Mechanical Dimensions | 2500mm long × 1620mm wide × 850mm high (Customizable according to actual needs) |
| 5 | Power Supply | 220V, 50HZ |
| 6 | Material Construction | Made from 1.5mm cold-rolled plate with bending and welding, surface painted, equipped with adjusting foot cup for durability |
| 7 | Conveyor Belt | Stainless steel mesh belt, width: 1320mm, long service life, stable conveying |
| 8 | Transmission System | KHV bearing, Beiji reducer, Taiwan Delta inverter control with stepless speed adjustment (5-20 m/min) |
| 9 | Electrical Components | OMRON relay, CHNT contactor, Beiji reducer, Taiwan Delta inverter, CKC brand delay timer, Japanese Izumi switches - all comply with national electrical standards |
A: We are a manufacturer with foreign trade independent import and export rights. Our factory is located in Guangdong, China.
A: We provide sample testing on our machines with video documentation for your review. Factory visits are also available. Our products are widely used in China, Southeast Asia, South America, and Europe.
A: Our production fully complies with GMP & ISO standards, and our products have passed CE certification for exporting.
A: One year warranty with lifelong maintenance and technical support.
-
