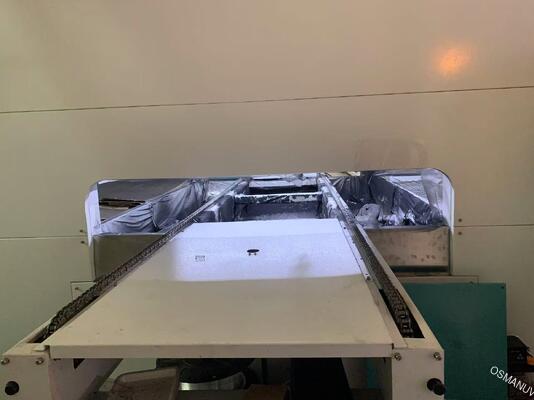

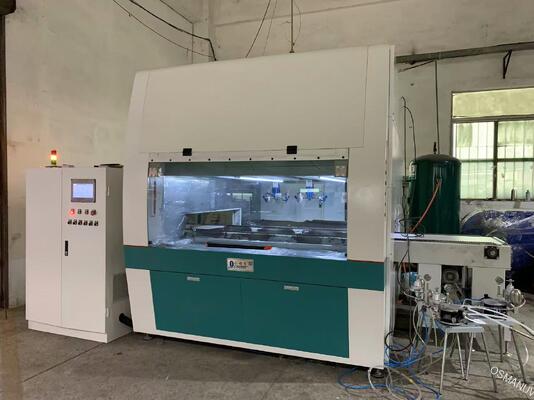

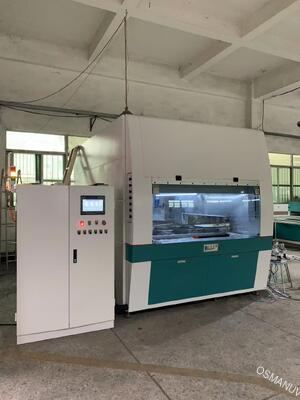

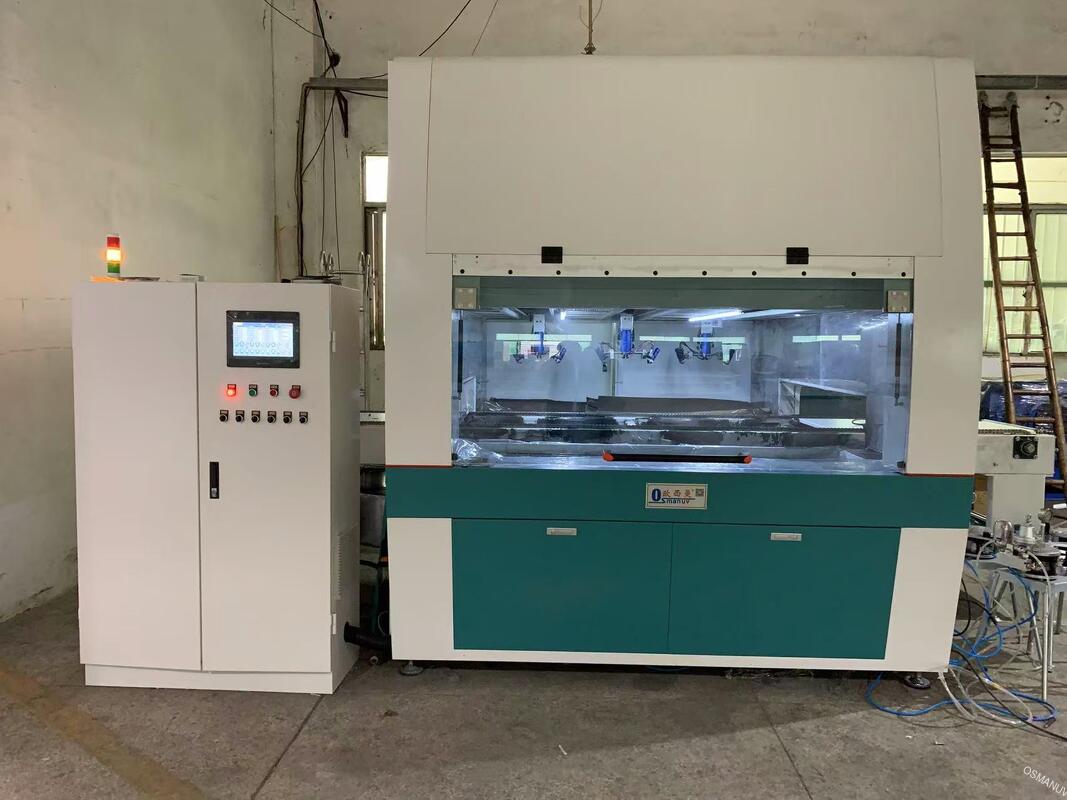

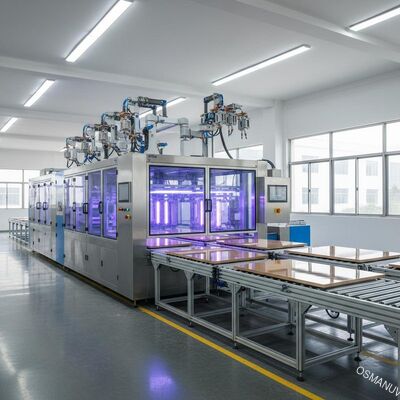

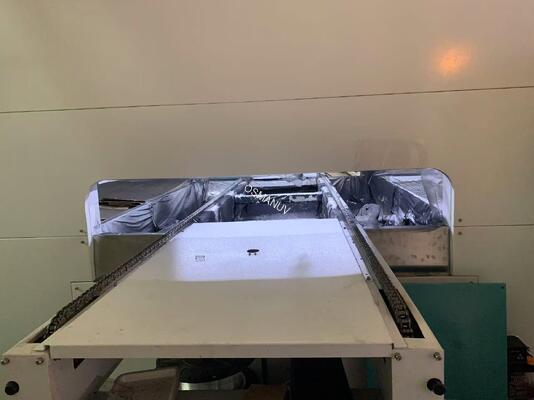

Automated Flat Panel Spraying Coating Line for High Gloss Decorative Board Finishing
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-PT-1320 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | WOOD PACKAGING |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Voltage: | 380V/50HZ | Dimension(l*w*h): | Customized Size,40000*2950*2300MM,85200*4600*2800mm,71100*2950*2300mm |
|---|---|---|---|
| Coating Width: | 620mm,920mm Coating,1320mm | Power: | 95KW,286.5KW,157kw, |
| Coating Speed: | Adjustable,1-15meters/min | Warranty: | 1 Year |
| Automatic Grade: | Automatic,Semi-Automatic | Condition: | New |
| Highlight: | automated flat panel spray coating machine,high gloss decorative board finishing line,spray coating machine for panel finishing |
||
Product Description
This fully automated flat panel spraying line is engineered for achieving flawless, high-gloss finishes on decorative boards and panels. It integrates automatic spraying, leveling, and drying processes into one continuous, efficient production line. The system ensures perfectly uniform coating with 99.5% consistency, significantly reducing material waste and manual labor while maximizing output for large-scale production.
| Parameter | Specification |
|---|---|
| Product Name | Automated Flat Panel Spraying Line |
| Max. Workpiece Width | 1320 mm (Customizable) |
| Conveyor Speed | 1-15 m/min (Stepless Control) |

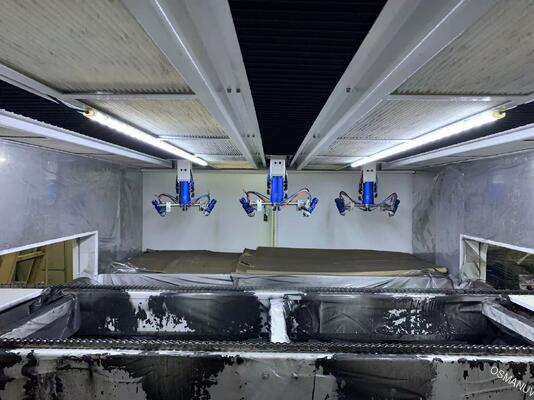

| Spraying Method | Automatic Air-Assisted/Airless Spray Guns |
| Number of Spray Guns | 4 Units (Customizable) |
| Drying Section | IR Drying or Hot Air Curing Tunnel |
| Transfer System | Precision Chain or Belt Conveyor |
| Control System | PLC + Touch Screen HMI |
| Finishing Uniformity | ≥ 99.5% |
Ideal for applying high-gloss, satin, or matte finishes to MDF panels, melamine boards, laminated decorative panels, and furniture components.
This is a fully customizable non-standard line. We can tailor the conveyor width, number and type of spray guns, drying method, and line length to match your specific panel size, production volume, and finish requirements.
- Automated spraying ensures superior, consistent finish with minimal overspray
- Stepless speed control allows precise adjustment for optimal coating thickness
- Integrated drying section for continuous production flow
- User-friendly PLC control for easy operation and recipe management
- One-year warranty on the entire line
- On-site installation, commissioning, and comprehensive operator training
- Lifetime technical support and remote diagnostics
The line is disassembled into modules, securely packed in weather-proof wooden crates for sea freight. Delivery lead time is 70-90 days based on configuration. FOB terms.
