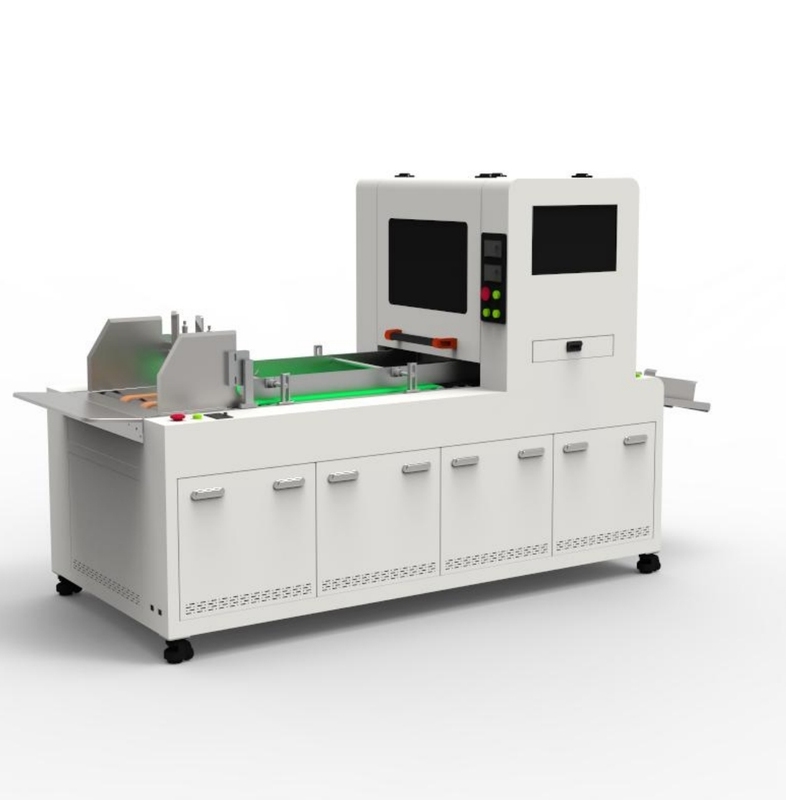

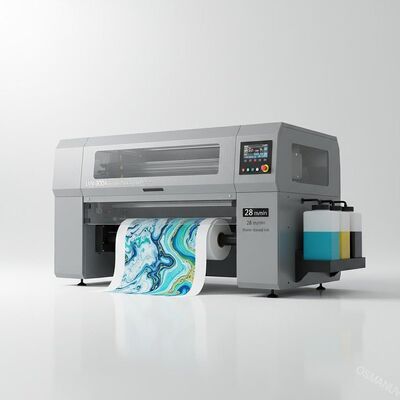

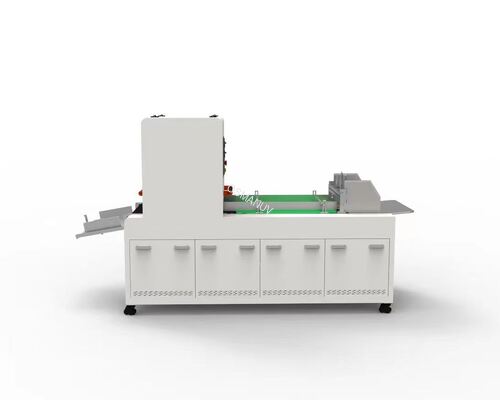

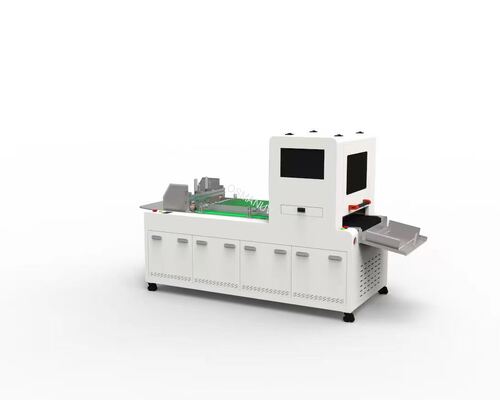

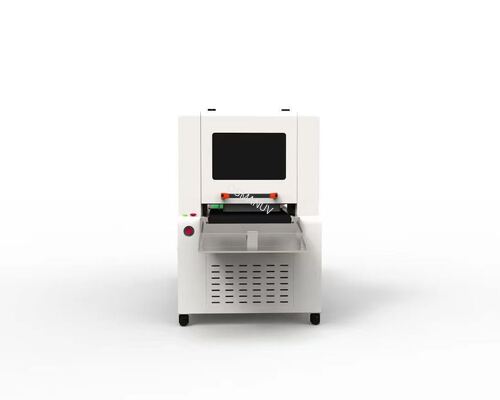

UIN-300A Single Pass Digital Printer with 300mm Printhead Water-based Ink and 28m/min Speed for Custom Designs
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-UIN-300A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | WOOD PACKAGING |
| Delivery Time: | 35 days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Printhead Width: | 300mm | Printing Height: | 2-3mm |
|---|---|---|---|
| Printing Speed: | 28m/min | Feeding Size: | 600mm |
| Printhead Resolution: | 1200 Dpi | Power Requirement: | 50/60 Hz, 110/220 VAC, 800 W |
| Equipment Size: | 2160 Mm (L) X 990 Mm (W) X 1250 Mm (H) | Operation Environment: | Temperature: 15-35°C, Humidity: 20%-60% |
| Highlight: | water-based digital printer for absorbent materials,single pass digital printer for custom designs,on-demand spray coating machine with warranty |
||
Product Description
The UIN-300A is a state-of-the-art single-pass digital inkjet printer designed for high-speed, high-quality printing on a wide range of absorbent materials. It uses water-based environmentally friendly ink (CMYK) and supports customizable printing without the need for plate-making, making it ideal for rush orders, small batches, and e-commerce demands.
| Parameter | Specification |
|---|---|
| Printhead Technology | HP-A3 |
| Printhead Resolution | 1200 dpi |
| Number of Nozzles | 59136 (4224 x 14) |
| Number of Printheads | 1-3 Pcs |
| Printhead Width | 300 mm |
| Printing Height | 2-3 mm |
| Feeding Size | 600 mm |
| Printing Software | Single Pass RIP |
| Supported File Formats | TIFF, BMP, JPEG, CDR, PSD, JPG, etc. |
| Variable Data Printing | Supports 1D/QR codes, serial numbers, random numbers, data, and images |
| Printing Resolution | 300/400/600/900/1200 dpi |
| Printing Speed | 28 m/min |
| Data Interface | Network port (Ethernet) |
| Printing Materials | Carton, writing paper, offset paper, kraft paper, degradable lunch container, coated paper, wood, handbag, rice paper, etc. |
| Power Requirement | 50/60 Hz, 110/220 VAC, 800 W |
| Operation Environment | Temperature: 15-35°C, Humidity: 20%-60% |
| Equipment Size | 2160 mm (L) x 990 mm (W) x 1250 mm (H) |
Ideal for printing on absorbent materials such as carton boxes, writing paper, offset paper, kraft paper, corrugated paper, specialty paper, cotton paper, rice paper, double-adhesive paper, degradable lunch containers, handbags, and more.
Fully customizable printing with personalized designs, variable data (including barcodes, QR codes, serial numbers, and images), and support for small to medium print runs without setup delays.
- Single-pass printing technology for high-speed production
- Water-based eco-friendly ink
- No plate-making required
- Supports a wide range of file formats
- Variable data printing capability
- User-friendly RIP software
- Compatible with multiple operating systems
- Online technical support
- Software updates and troubleshooting
- Remote assistance via network interface
- Comprehensive user manual and installation guidance
- Standard export wooden case packaging
- Shipping via air or sea freight
- Lead time: 10-15 business days after order confirmation
- Worldwide delivery available
