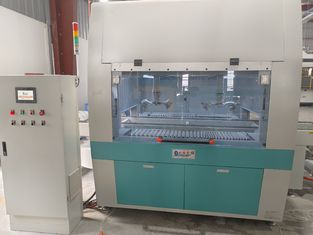

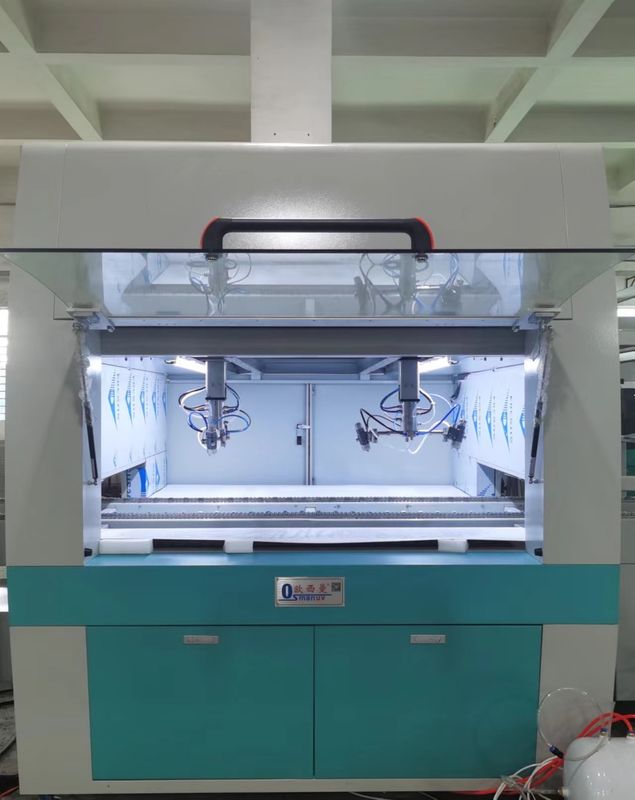

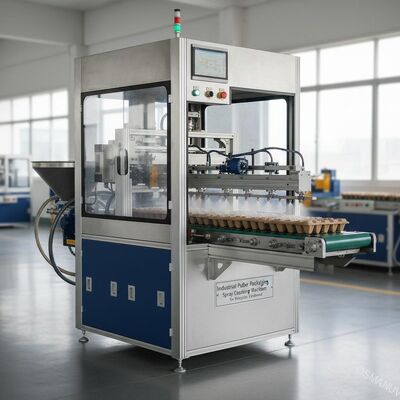

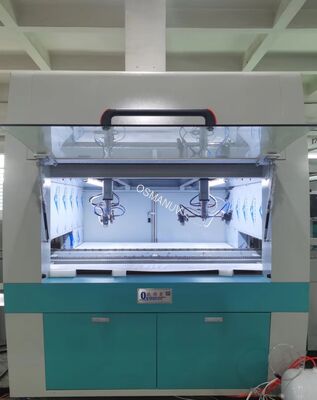

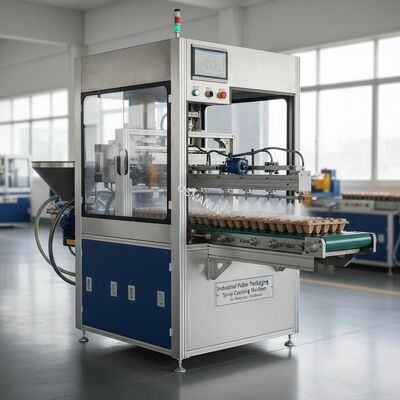

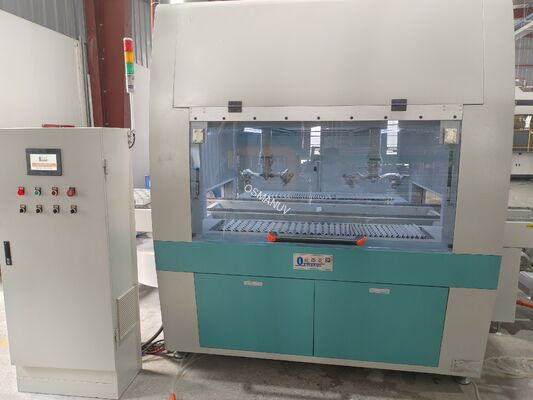

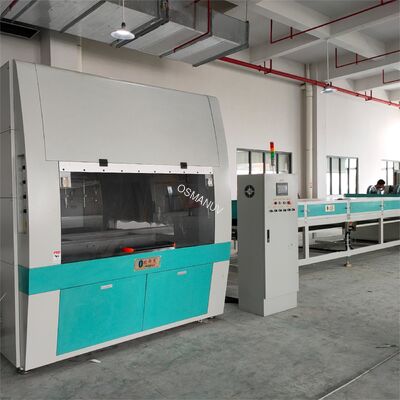

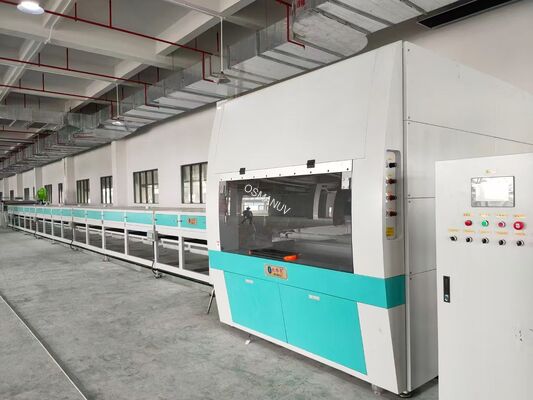

Industrial Pulp Fiber Packaging Spray Coating Machine with Precision Reciprocating Spray System for Recycled Cardboard
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-GX-PV-800/PT |
| Document: | automatic spray coating mac...ne.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | WOOD PACKAGING |
| Delivery Time: | 35 days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Product Name: | Automatic Spray Coating Machine | Coating Width: | 800mm |
|---|---|---|---|
| Power: | 11KW | Voltage: | 380V/50HZ, Can Be Adjustable |
| Automatic Grade: | Automatic,Semi-Automatic,manual,Other | Condition: | New |
| Warranty: | 1 Year | Processing Thickness: | 3-200mm |
| Highlight: | industrial pulp fiber spray coating machine,precision reciprocating spray system,recycled cardboard spray coating machine |
||
Product Description
Industrial Pulp Fiber Packaging Spray Coating Machine with Precision Reciprocating Spray System for Recycled Cardboard
Product Overview
This automated reciprocating spray coating machine is specifically designed for applying uniform functional and decorative coatings to industrial paper pulp packaging made from recycled cardboard and waste paper. The system features precision servo-driven spray guns with programmable motion paths to ensure consistent coverage on complex 3D shapes while minimizing material waste and optimizing production efficiency.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | OSM-GX-PV-800/PT |
| Spraying Axis | X-Y-Z 3-axis programmable |
| Max Product Size | 3500×3050×2500 mm (Customizable) |
| Spray Guns | 4 guns (Customizable) |
| Coating Capacity | 300-600 pcs/hour |
| Control System | PLC + Touch Screen HMI |
| Repeatability | ±0.5 mm |
Applications
Automated coating of industrial protective packaging, edge protectors, corner pads, and cushioning products made from recycled paperboard and waste paper materials.
Customization Options
- Customizable number of spray guns and nozzle types
- Customizable working envelope dimensions
- Customizable coating thickness and pattern parameters
Key Features
- Precise 3-axis programmable path control
- High transfer efficiency coating technology
- Quick changeover between different products
- Integrated exhaust and filtration system
Support and Services
- On-site installation and calibration
- Spray parameter optimization service
- Operator training program
- Annual maintenance contracts available
Packing and Shipping
- Heavy-duty wooden crate packaging
- Shock-absorbent mounting for precision components
- Weather-proof covering for sea shipment
Frequently Asked Questions
Q: What is the coating transfer efficiency?
A: The HVLP system achieves 75-85% transfer efficiency, significantly reducing material consumption compared to conventional spraying.
