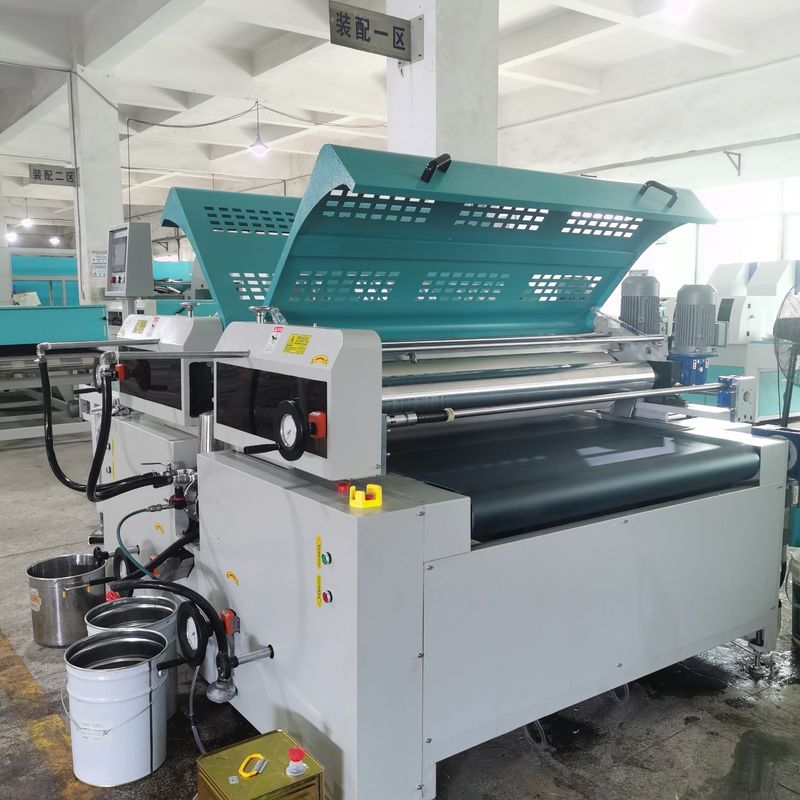

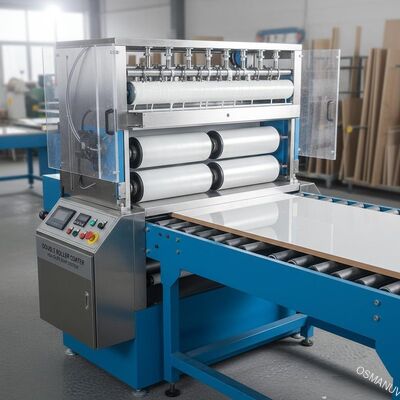

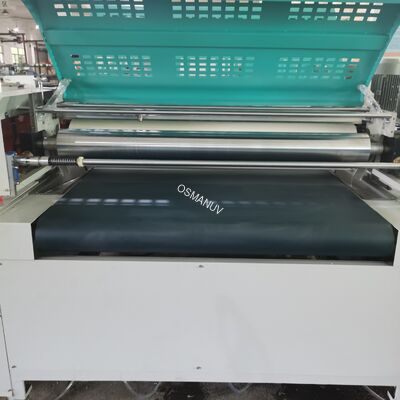

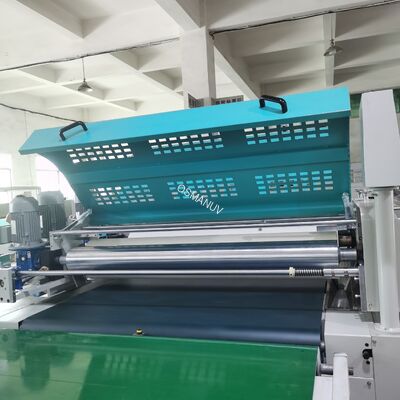

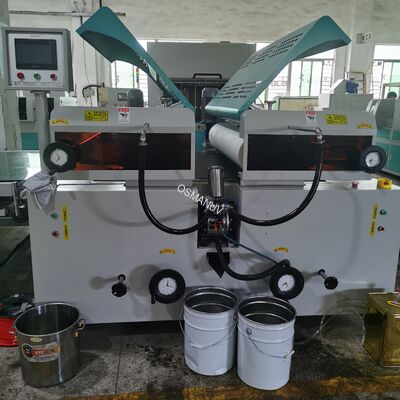

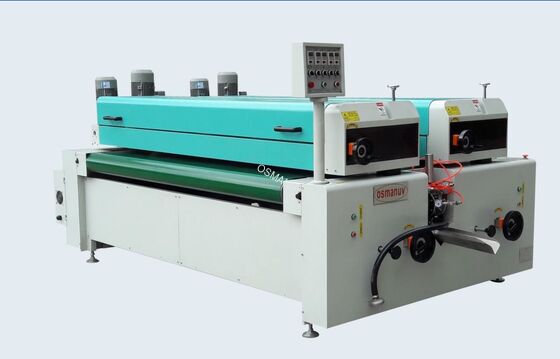

 Double Roller Coating Machine for Furniture Panel Surface Finishing High Gloss Paint Application System

 Double Roller Coating Machine for Furniture Panel Surface Finishing High Gloss Paint Application System

Product Details:

Place of Origin: CHINA
Brand Name: OSMANUV
Certification: ISO9001
Model Number: OSM-GT-1600Ⅱ
Document: Two-roller coating machine.pdf

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: WOOD PACKAGING
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: Negotiation
Get Best Price Contact Now

Detail Information

Voltage: 380V/50HZ Condition: New
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Overseas Third-party Support Available,Field Installation Dimension(l*w*h): Can Be Customized, 1800mm Length×2580mm Width×1520mm Height
Automatic Grade: Automatic,Semi-Automatic,manual,Other Warranty: 1 Year
Power: 3KW,16KW,65.3kw,4.2kw,0.75KW/220V/50HZ Coating Speed: Adjustable, 1-15 Meters/min

Product Description

 Double Roller Coating Machine for Furniture Panel Surface Finishing High Gloss Paint Application System

Product Description

This precision double roller coating machine is specifically designed for applying high-gloss and matte finishes to furniture panels including MDF, particle board, and plywood. The machine ensures uniform coating thickness and excellent surface quality through its synchronized roller system, making it ideal for mass production of furniture components and architectural panels.


Technical Parameters



Parameter Specification
Model

OSM-GT-1600Ⅱ

Coating Width 1600 mm (Customizable)
Roller Material Precision steel with chrome plating
Coating Thickness 10-200 μm (adjustable)
Line Speed 1-15m/min
Power Supply 380V/3Phase/50Hz

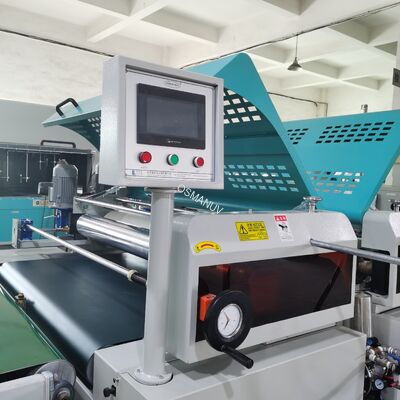

Control System PLC + 10" HMI Touch Screen


Application

High-volume coating of furniture panels, cabinet doors, wall panels, and other flat wood-based substrates in furniture manufacturing and interior decoration industries.


Customization

  • Customizable coating width from 1500mm to 3200mm

  • Customizable roller hardness for different coatings

  • Customizable drying system integration


Feature

  • Perfect thickness control

  • High transfer efficiency

  • Easy roller change system

  • Minimal maintenance requirement


Support and Services

  • Installation and commissioning

  • Operator training program

  • 24-month warranty

  • Remote technical support


Packing and Shipping

  • Weatherproof wooden crate

  • Shock-absorbent packaging

  • Professional export standards


FAQ

Q: What is the maximum panel thickness it can handle?
A: The machine can process panels from 2mm to 60mm thickness with appropriate roller adjustments.
