Precision Single Roll Coater for Furniture, Glass & Metal Panels | Versatile Coating Solution
Product Details:
| Place of Origin: | China |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 |
| Model Number: | OSM-GT-620 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 30~45 Days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Humidity: | 50±10℃ | Condition: | New |
|---|---|---|---|
| Product: | SPC With Wood Veneer Floor | Max Coating Width: | 1000mm |
| Drying Way: | Ultraviolet - Curable | Uv Coating Thickness: | 0.15 Mm - 0.6 Mm |
| Control System: | PLC | Conveyor Belt: | Teflon Belt |
Product Description

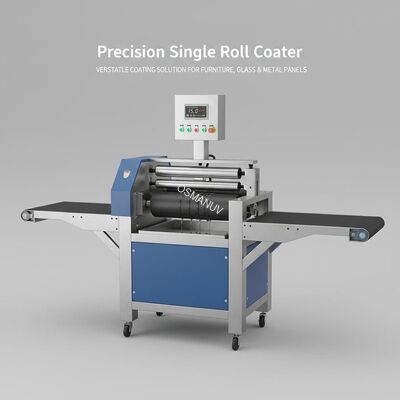

Precision Single Roll Coater for Furniture, Glass & Metal Panels | Versatile Coating Solution
1. Composition of Production Line
A standard system includes: unwinding station, precision single roll coater, drying/curing tunnel (UV or thermal), and rewinding station.
2. Product Description

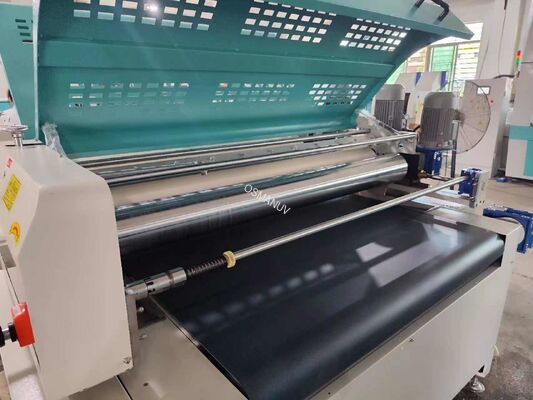

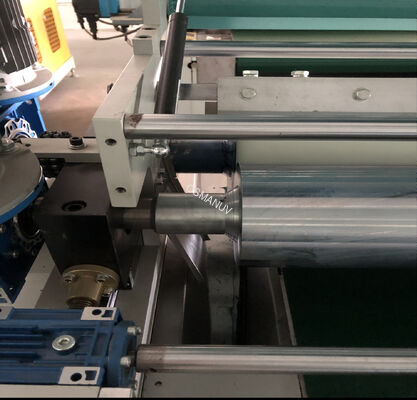

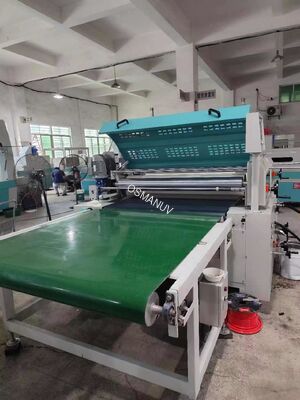

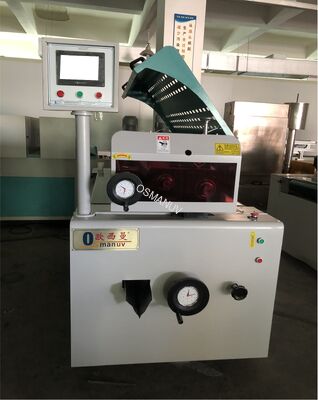

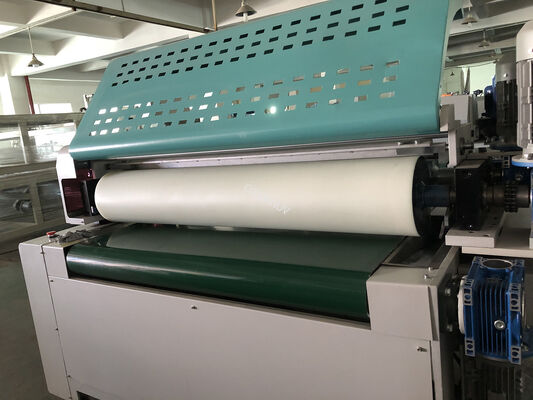

This precision single roll coater delivers exceptional coating uniformity on diverse substrates including wood panels, glass sheets, and metal surfaces. Its innovative design ensures minimal material waste while maintaining consistent film thickness across the entire web width.
3. Technical Parameters
| Parameter | Details |
|---|---|
| Model | SRC-1000 (Standard Model, Customizable) |
| Coating Width | 600mm - 1600mm (Customizable) |
| Coating Thickness | 5-200 microns (adjustable) |
| Line Speed | 0.5-15 m/min (variable) |
| Roller Material | Chrome-plated steel/Polyurethane (Customizable) |
| Control System | PLC + Touch Screen HMI |
| Substrate Thickness | 0.5mm - 50mm |
4. Application
Perfect for applying protective and decorative coatings on furniture panels, architectural glass, and metal components.
5. Customization
We offer fully customizable roller configurations and material compatibility to match specific coating formulations.
6. Feature
-
±1% coating thickness uniformity
-
Quick-change roller system
-
Reverse comma bar configuration available
-
Integrated thickness measurement (optional)
7. Support and Services
Installation supervision, operational training, 12-month warranty, and lifetime technical support.
8. Packing and Shipping
Export-standard wooden cases with waterproof packaging and precise component labeling.
9. FAQ
-
Q: Can it handle different substrate materials without modification?
-
A: Yes, with customizable roller hardness and pressure settings, it can adapt to various materials.
-
-
Q: What's the maximum viscosity it can process?
-
A: Up to 50,000 cPs with customized roller configurations.
-
