Quality Automated Spray Coating System for Molded Pulp | Precision Internal Coating factory

Automated Spray Coating System for Molded Pulp | Precision Internal Coating

Name: Automated Spray Coating System for Molded Pulp | Precision Internal Coating
Brand: Dongguan Osmanuv Machinery Equipment Co., Ltd
SKU: OSM-ZDPT-1320PT
Price: 4,500.00 USD
Availability: InStock

Automated Spray Coating System for Molded Pulp | Precision Internal Coating System Overview This automated spray coating system is engineered for applying uniform water-based barrier coatings to the interior of complex-shaped molded pulp products. It ensures consistent film thickness and complete ...

Place of Origin:China

Brand Name:Osmanuv

Certification:ISO9001

Model Number:OSM-ZDPT-1320PT

Minimum Order Quantity:1 Set

Price:Negotiation

Product Custom Attributes

Highlight

automated spray coating system for molded pulp

precision internal coating machine

spray coating machine with warranty

Voltage:

220V 50HZ

Color:

Blue/green/white

Packaging Material:

Wood

Driven Type:

Electric

Coating Material:

Key Selling Points:

High-accuracy

Lamp:

Use Taiwanese Quartz Heating Tube

Core Components:

Engine, Motor

Product Description

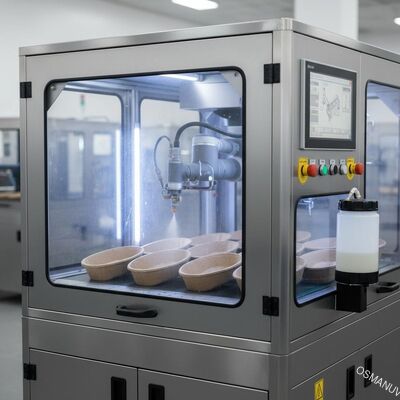

Automated Spray Coating System for Molded Pulp | Precision Internal Coating

System Overview

This automated spray coating system is engineered for applying uniform water-based barrier coatings to the interior of complex-shaped molded pulp products. It ensures consistent film thickness and complete coverage, even in deep-draw containers, maximizing material efficiency and product quality.

Production Line Composition

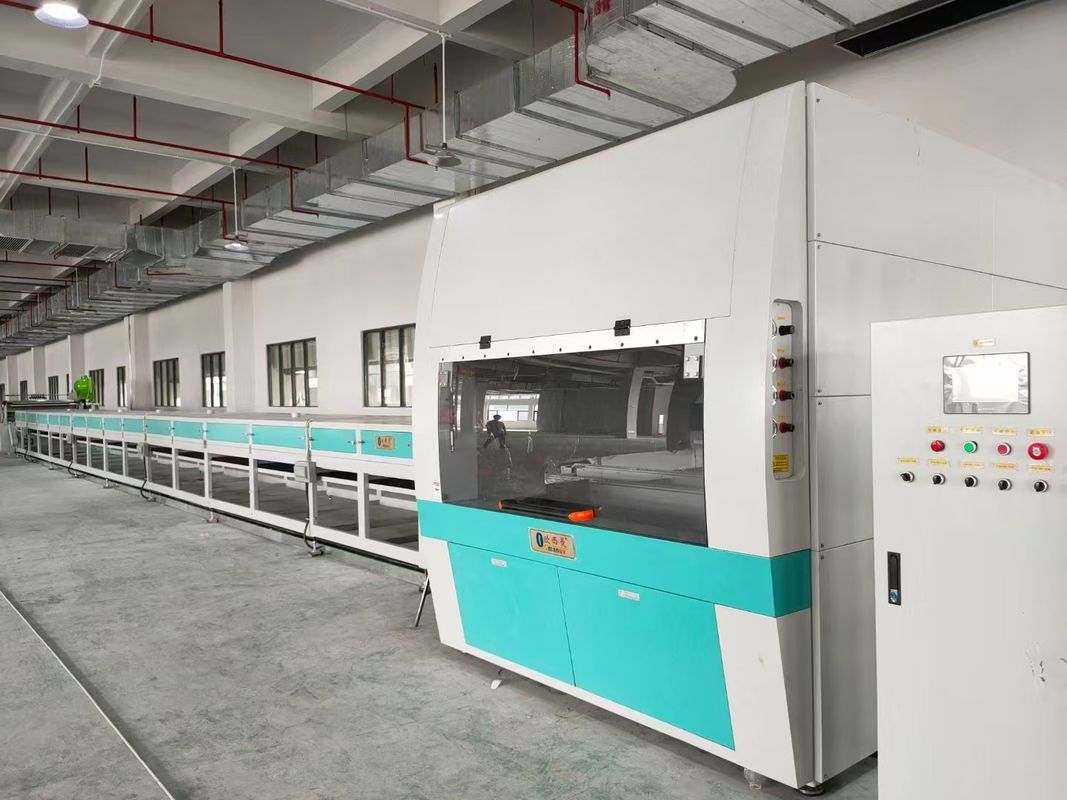

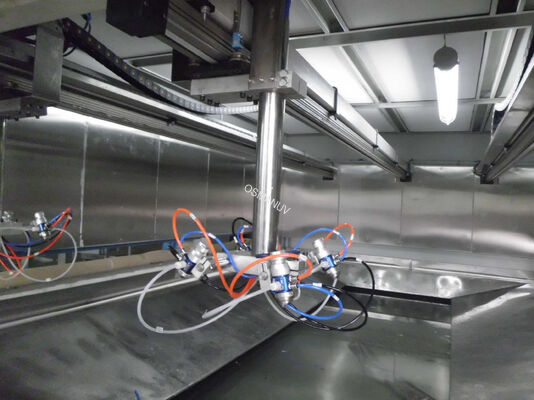

A complete system includes: automated conveyor, 6-axis robotic arm with high-precision spray gun, vision positioning system, paint circulation and supply system, and PLC control cabinet.

Technical Parameters

Parameter	Details
Model	AS-MP500 (Standard Model, Customizable)
Robot Type	6-Axis Industrial Robot

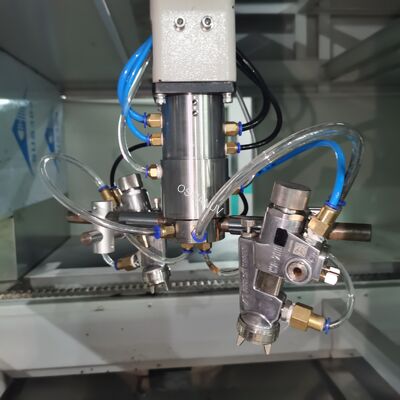

Spray Technology	High-Transfer Efficiency Air-Assisted Airless
Coating Uniformity	±3% deviation
Positioning Accuracy	±0.5mm (via vision system)
Control System	PLC + Touch Screen HMI with path programming
Conveyor Speed	0.5 - 3 m/min (Synchronized with robot)

Applications

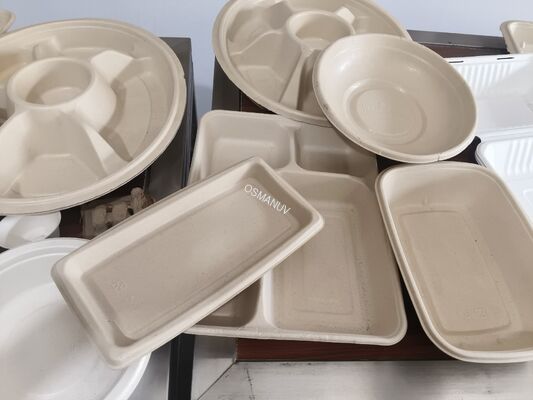

Ideal for applying moisture and grease barriers to food packaging like bowls, clamshells, and trays with complex geometries.

Customization Options

We offer fully customizable end-effectors and spray paths to match your specific product contours. The paint circulation system can be tailored for different coating viscosities.

Key Features

Robotic precision for 100% consistent coverage
Up to 40% material savings compared to manual spraying
Vision-guided positioning compensates for pulp product dimensional variation

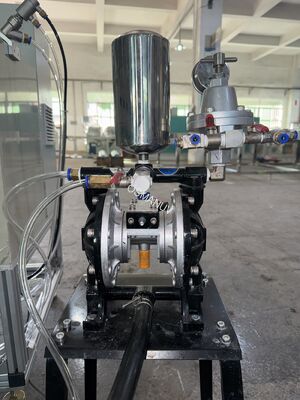

Closed-loop paint system maintains coating viscosity and quality

Support & Services

We provide installation & commissioning, robotic path programming training, and a 12-month warranty. 24/7 technical support is available.

Packing & Shipping

The system is disassembled into modules, packed in weather-proof wooden cases with custom foam inserts for safe transit.

Frequently Asked Questions

Q: How does it handle different product sizes?

A: The system can store multiple spray paths. Changeover is quick through recipe selection on the HMI. Customizable quick-change fixtures are available.

Q: What is the transfer efficiency?

A: Our advanced spray technology achieves over 85% transfer efficiency, reducing material waste and overspray.
